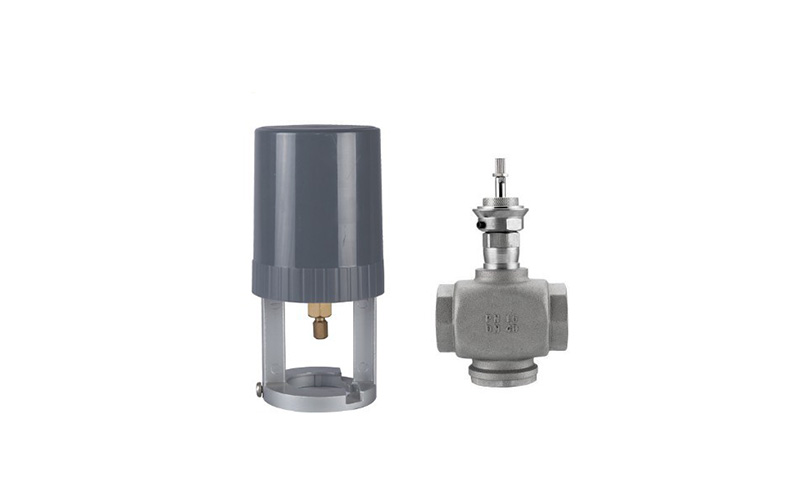

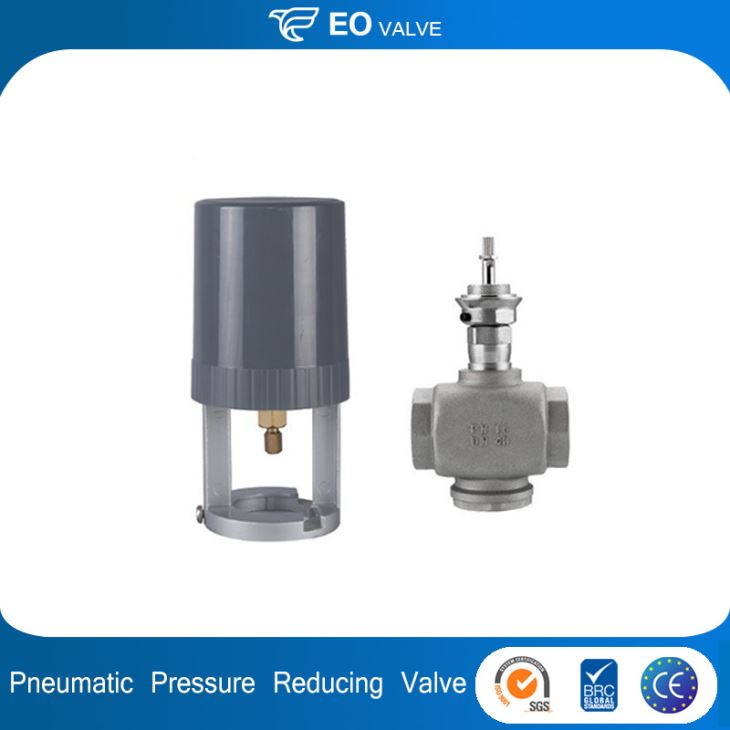

Electric Water Pressure Regulator Valve
Electric Water Pressure Regulator Valve;Standard or Nonstandard:Standard,Pressure:Low Pressure,Material:Plastic,Media:Water,Brand Name:EO.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Ball |
| Pressure: | Low Pressure |
| Power: | Pneumatic |
| Material: | Plastic |
| Temperature of Media: | Medium Temperature |
| Media: | Water |
| Place of Origin: | China (Mainland) |
| Model Number: | VA-3102 |
| Brand Name: | EO |
| Application: | General |
| Item name: | Electric Water Pressure Regulator Valve |
| Input signal range: | 0~10V DC or 4~20mA DC |
| Power Consumption of PCB: | 2VA |
| Mode no. | VA-3100(VA3102) VA-3200(VA3202) |
| Operate/Control | Reversible, increment control Proportional and Integral control |
| Output | 0-10VDC,4-20m A DC |
| Motor Bi-directional Synchronous Motor with magnetism clutch | |
| Power Supply of Motor | 24 VAC 50/60 HZ,5.5 VA |
| Power Consumption | 2A |
| Normal Torque | 500 N for VA-31xx series,1000 N for VA-32xx series |
| Material Gear | Stainless steel, Brass |
| Reduce Down Panel | Zinc- galvanizated steel |
| Bracket | Die-casting aluminum alloy |
| Shell | Fire-proof PC ABS plastic |
| Operating Time & Stroke | VA-31xx series :50 Hz:4.6 s/mm, 60 HZ:3.8 s/mm VA-32xx series: 50 Hz:8.3 s/mm, 60 HZ:6.9 s/mm |
| Temperature Operation | -5~55°C Storage: -20~ 65°C |
| Max. Relative Humidity No condensing 90% no condensing | |
