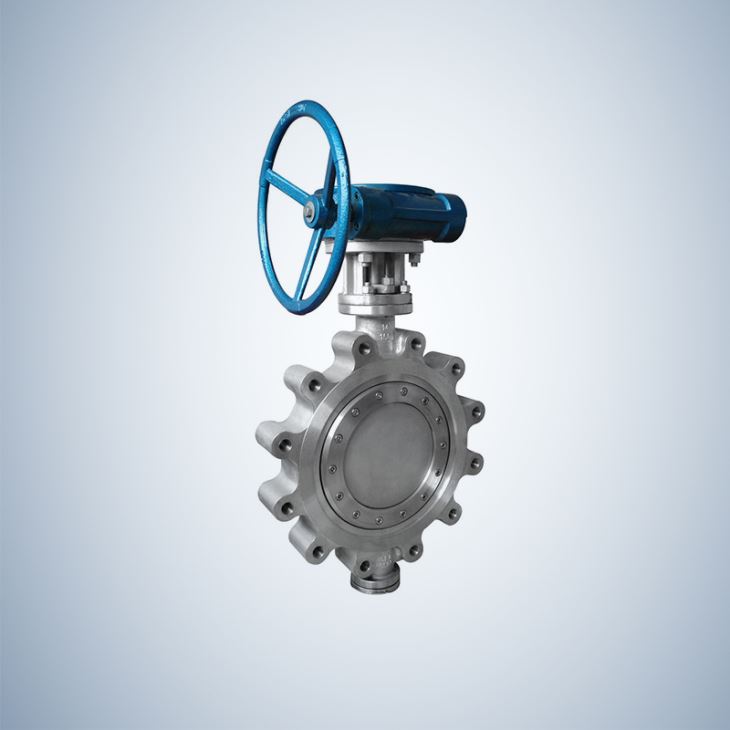

Products Details : Shenyang EO Valve Co.,Ltd is a leading China lug type triple offset butterfly valve, lug type butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. LUG TYPE TRIPLE OFFSET BUTTERFLY VALVE......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China lug type triple offset butterfly valve, lug type butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. LUG TYPE TRIPLE OFFSET BUTTERFLY VALVE...



Products Description :

Shenyang EO Valve Co.,Ltd is a leading China lug type triple offset butterfly valve, lug type butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.


APPLICATION :

1. Water Treatment Plant

2. Breweries

3. Drilling Rigs

4. Heating & Air Conditioning

5. Paper Industry

6. Chemical Industry

7. Gas Plant

8. Pneumatic Conveyors

9. Sugar Industry

10. Waste Effluent Treatment Plant

11. Cooling Water Circulation

12. Compressed Air



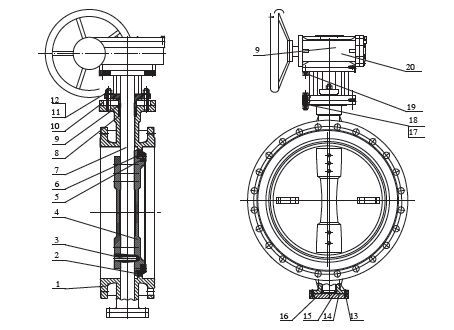

LUG TYPE TRIPLE OFFSET BUTTERFLY VALVE STANDARD


MATERIAL LIST

ITEM

PART NAME

MATERIAL

1

BODY

A216 WCB

2

STEM RING

SS+GRAPHITE/PTFE

3

PIN

A276 410

4

DISC

A216 WCB

5

SCREW

CARBON STEEL

6

SEAT GLAND

CARBON STEEL

7

STEM

A182 F6A

8

PACKING

GRAPHITE/PTFE

9

GLAND FLANGE

A216 WCB

10

YOKE

A216 WCB

11

GLAND NUT

A194 2H

12

EYEBOLT

A193 B7

13

COVER BOLT

A193 B7

14

GASKET

SS304/SS316+GRAPHITE

15

SPLINT COLLAR

CARBON STEEL

16

COVER

A216 WCB

17

YOKE BOLT

A193 B7

18

YOKE NUT

A194 2H

19

BOLT

CARBON STEEL

20

GEAR

ASSEMBLY



Product Specifications :

1. DESIGN AND MANUFACTURE:  API 190/MSS SP-67/ MSS SP-68

2. FACE TO FACE DIMENSIONS:  API 609/BS 5155

3. FLANGE ENDS DIMENSIONS (NPS1/2”-24”/NPS 26”~36”): ASME B16.5/AMSE B16.47

4. BW ENDS DIMENSIONS:  ASME B16.25

5. PRESSURE-TEMPERATURE RATINGS: ASME B16.34

6. PRESSURE: CLASS 150~CLASS600

7. SIZE: NPS 2″~36″


PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
