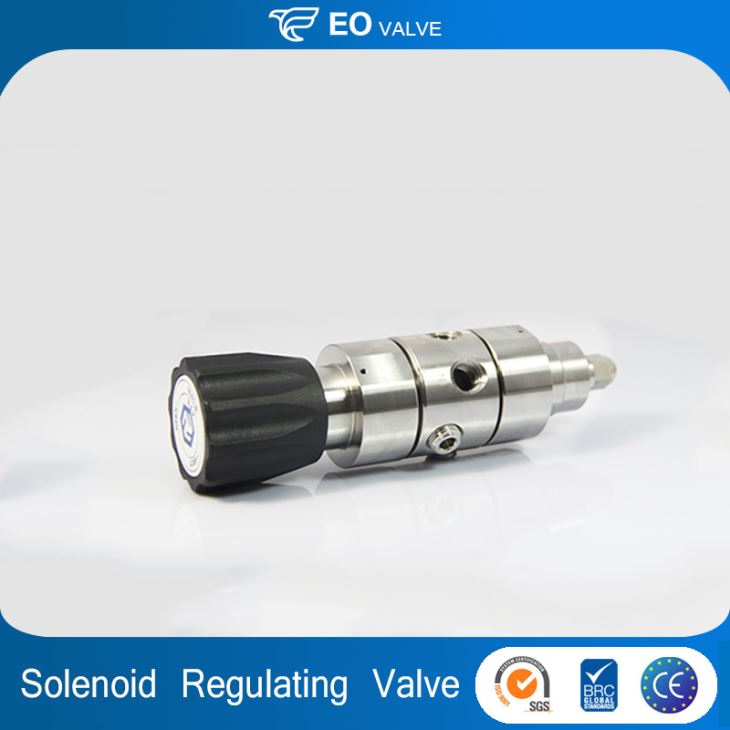

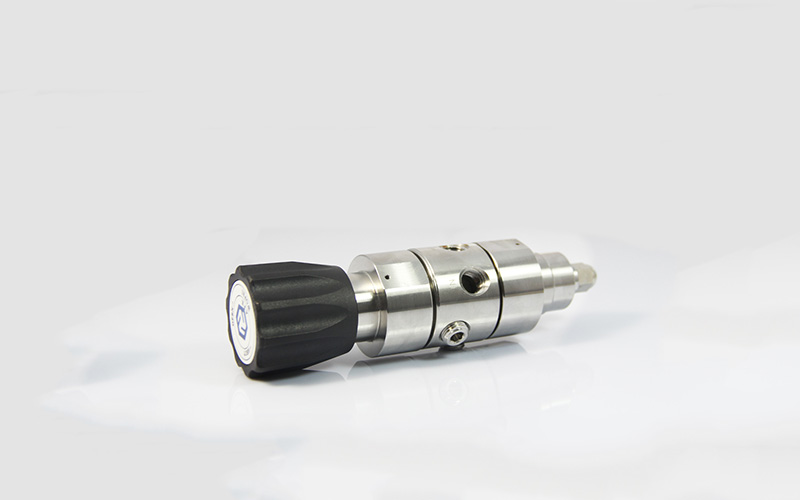

Air Regulator Gas Pressure Regulator Two Stage Pressure Reducing Valve

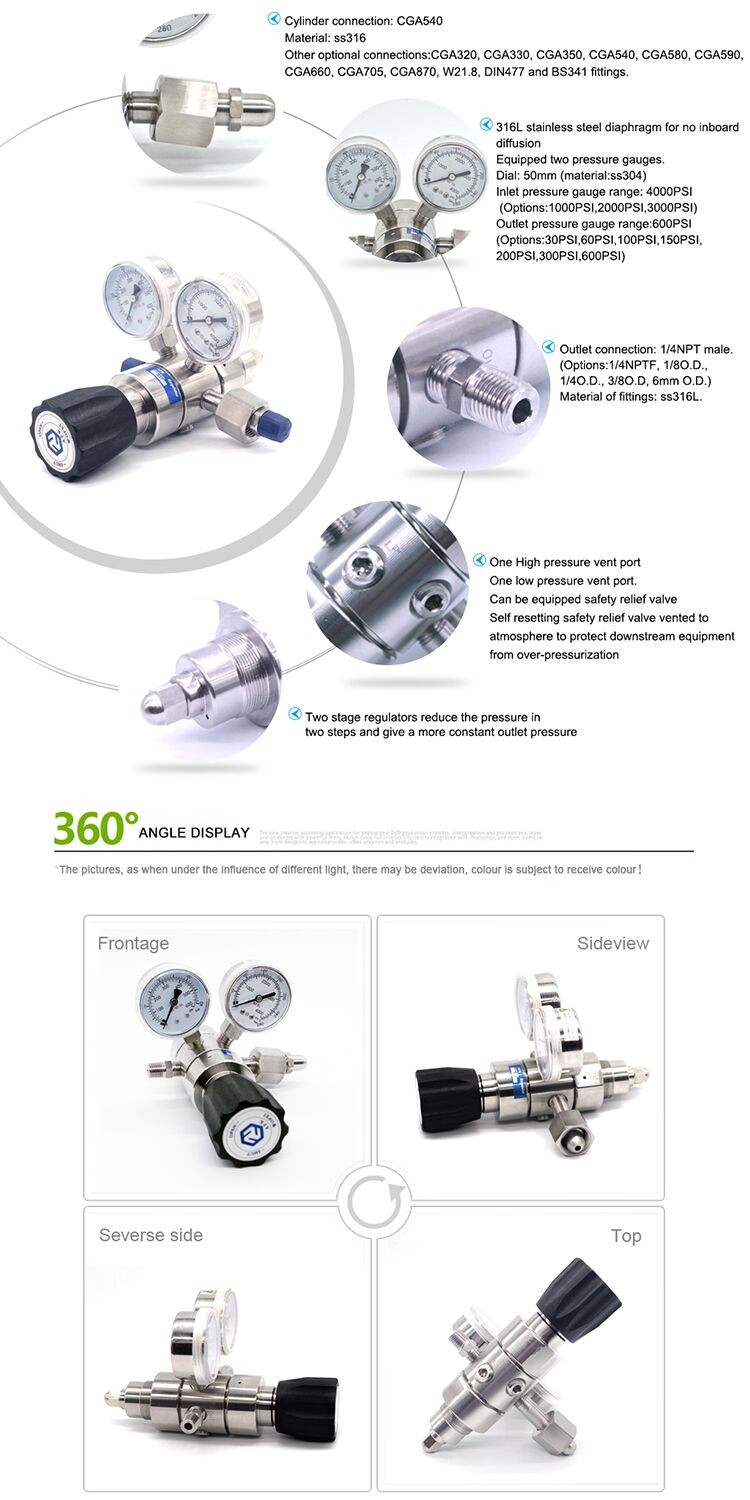

R31 series stainless steel pressure regulator, double stage diaphragm reducing structure, stable input pressure, suitable for high purity gas, standard gas, corrosive gas etc.
| Quick Details | |
| Standard or Nonstandard: | Other |
| Structure: | Diaphragm |
| Pressure: | Medium Pressure |
| Power: | Solenoid |
| Material: | Stainless Steel |
| Temperature of Media: | Normal Temperature |
| Media: | Gas |
| Port Size: | 3/4" |
| Place of Origin: | China (Mainland) |
| Model Number: | R31 |
| Brand Name: | EO |
| Application: | Other |
| Body thread: | 3/4"NPT(F) |
| Maximum input pressure: | 500 and 1500 PSI |
| Output pressure: | 0-15 , 0-25, 0-75, 0-125PSI |
| working temperature: | -40℃-----+70℃ |
| Cv: | 1.8 |
| valve seat: | PCTFE , PTFE |
| weight: | 2.7kg |
| Product Name | R31 Pressure Regulator |
| Material | stainless steel |
| Maximum Inlet Pressure | 500,3000psig |
| Outlet Pressure Ranges | 0~25, 0~50, 0~50,0~250,0~500psig |
| Safety test pressure | 1.5 times maximum inlet pressure |
| Operating Temperature | -40°F to 165°F / -40°c to 74°c |
| Leakage Rate Against | 2*10-8atm cc/sec he |
| Cv value | 0.08 |
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
