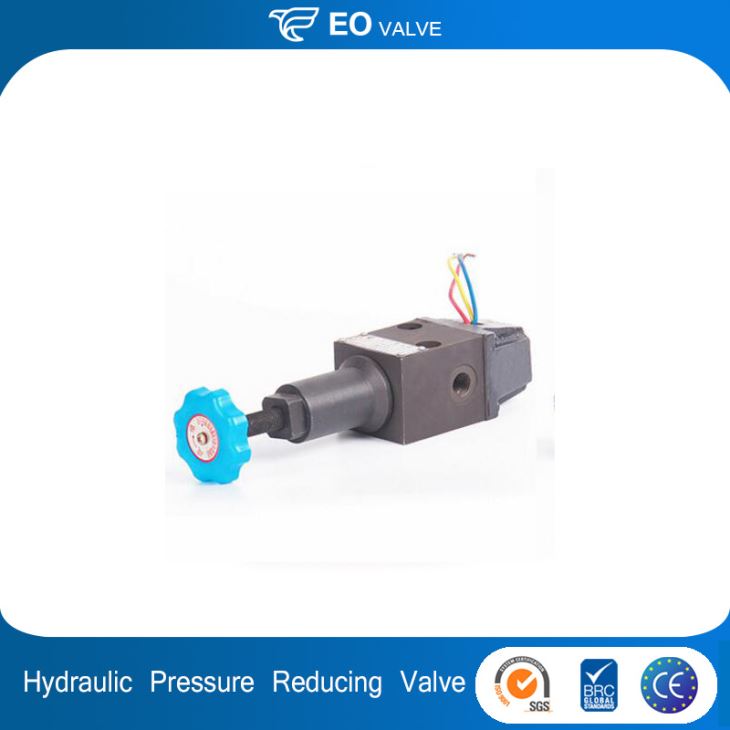

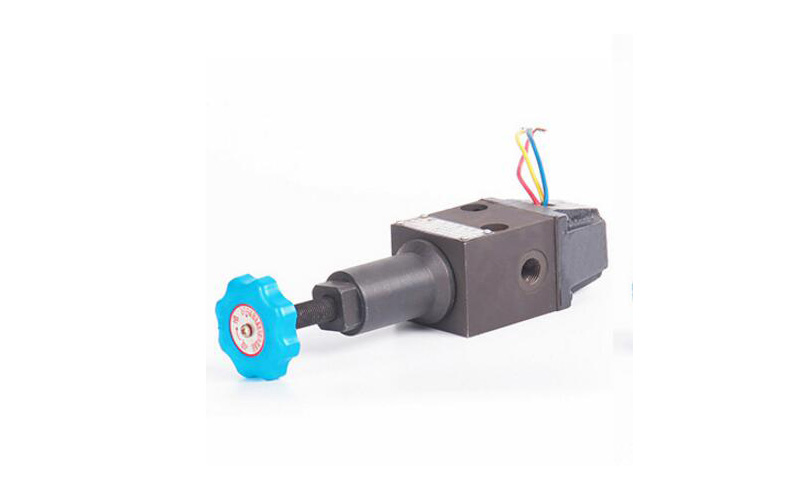

Hydraulic Pressure Reducing Steering Valve
Hydraulic Pressure Reducing Steering Valve;Power:Hydraulic,Material:Casting,Port Size:Standard,Model Number:hydraulic valves,Brand Name:EO,Application:General.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Control |
| Pressure: | High Pressure |
| Power: | Hydraulic |
| Material: | Casting |
| Temperature of Media: | High Temperature |
| Media: | Oil |
| Port Size: | Standard |
| Place of Origin: | China (Mainland) |
| Model Number: | hydraulic valves |
| Brand Name: | EO |
| Application: | General |
| Product name: | hydraulic pressure relief valve |
| Certificate: | ISO9001 |
| Connection: | Female |
| Size: | Custom Made |
| Working pressure: | high pressure |
| Seal Material: | VITON |
| Working medium: | high |
| Body material: | Cast Steel |
Product Information
Nominal size 6 (cetop 3)
Completely interchangeable with Vickers and Yuken
Very competitive price
1 year of warranty
Widely used for various hydraulic systems
Max. operating pressure up to 350 bar(5076psi)
Max. flow 80L/min( 21 US gpm)=60 L/min (15.8 US gpm)-AC

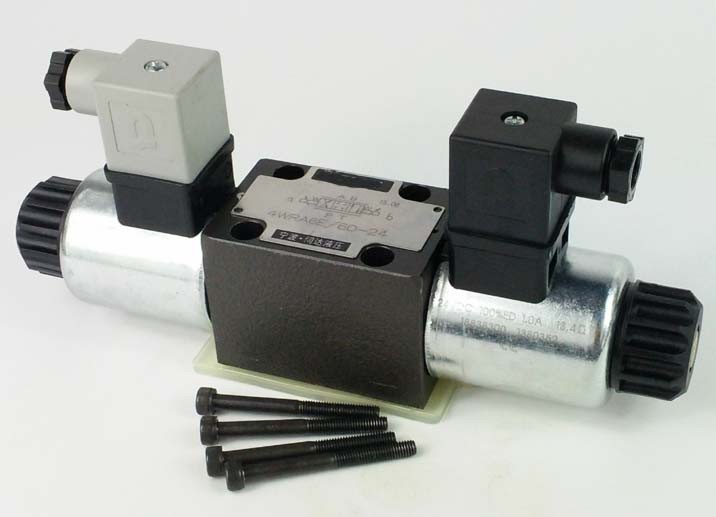

Direct operated directional spool valve with solenoid actuation in high perfomance version
Porting pattern to DIN 24340 form A (without locating bore)
Porting pattern to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2 D03 (with locating bore)
