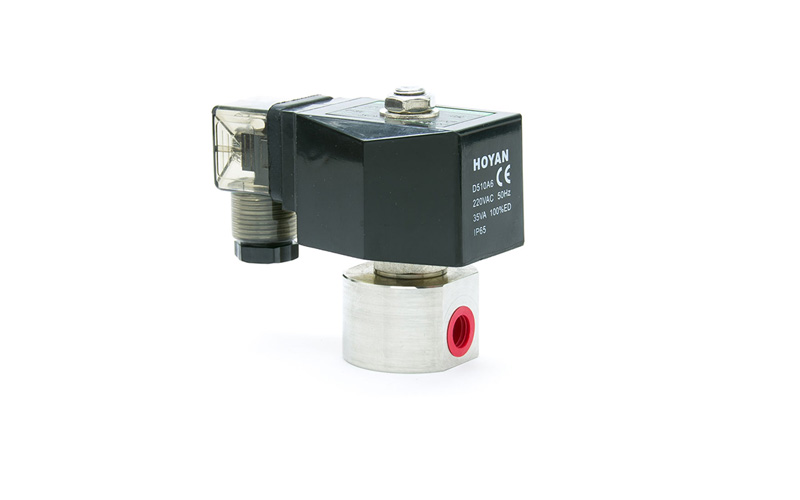

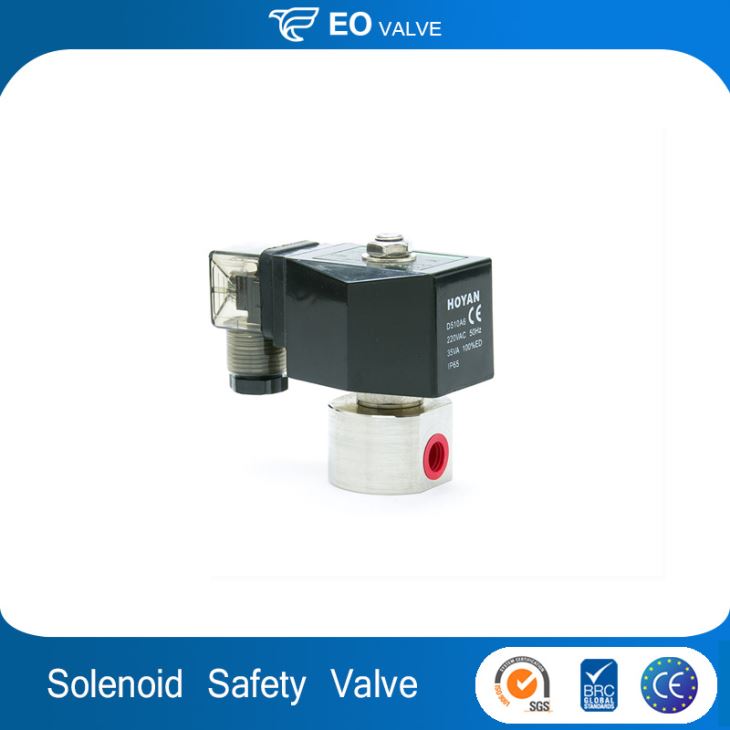

SPG Series 0-200bar High Pressure Safety Valve Solenoid Valve

SPG Series 0-200bar High Pressure Safety Valve Solenoid Valve

SPG Series 0-200bar High Pressure Safety Valve Solenoid Valve;Structure:Pilot,Power:Solenoid,Temperature of Media:Medium Temperature,Port Size:1/4"~1/2",Place of Origin:China (Mainland).

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Pilot
Pressure:High Pressure, 0-200bar
Power:Solenoid
Material:Stainless Steel
Temperature of Media:Medium Temperature
Media:Water, water,hot water,air,oil<20CST etc.
Port Size:1/4"~1/2"
Place of Origin:China (Mainland)
Model Number:SPG-02
Brand Name:EO
Application:General
Temperature:NBR:-5~80℃ EPDM:-10~130℃


Stainless steel high pressure solenoid valve

1.2/2- Way normally closed direct acting solenoid valve, closed when de-energized, open when energized.

2.The product is special design, power will be normal type1/4. low temperature, small in size, large flow rate, widely use.

3.Flow as the arrow, mounts in any position; Best position is solenoid vertical and upright direaction.

4.This series valve are offered NBR,VITON, EPDM etc for seals and diaphragm to provide on-off various fluids

Body material: Forged brass, SUS304

Coil: IP 65

Work pressure:0~200bar

Oriifice: 1~10mm

Pipe:1/8"~1/2"

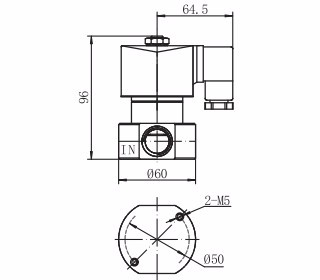

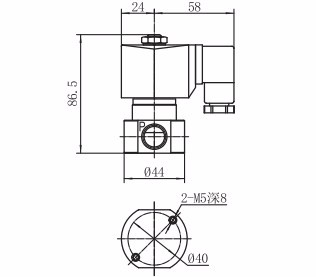

                 PG-01                                                            SPG-01

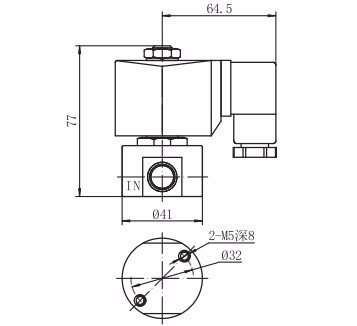

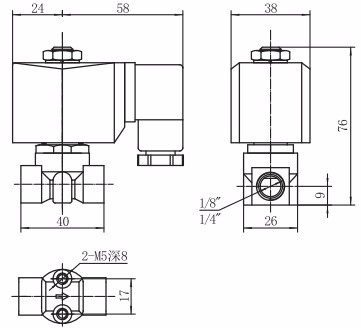

             SPG-06                                                              SPG-10
