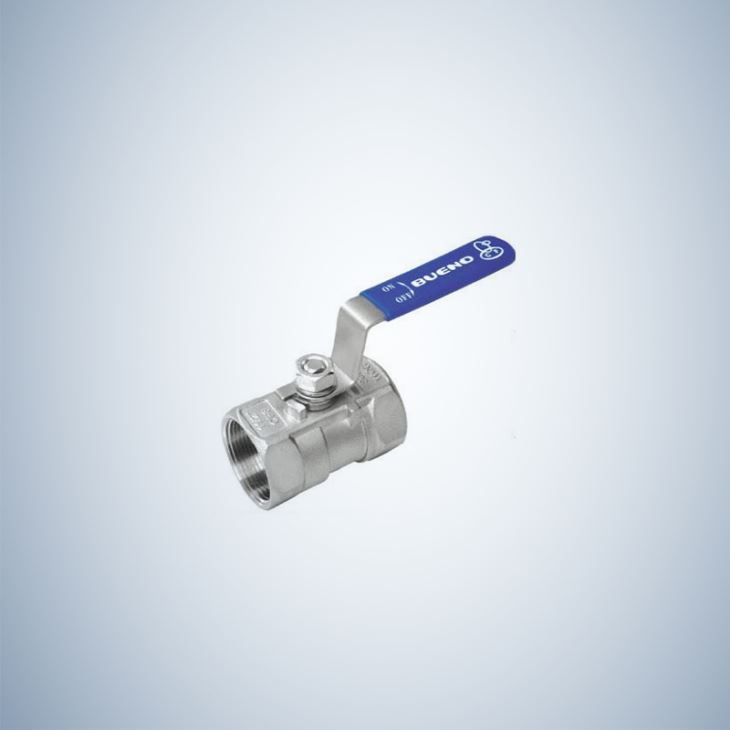

Cf8 Cast Steel 1 Piece Threaded Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China cast iron 1 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. CAST IRON ONE PIECE THREADED BALL VALVE Materials of main parts:......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China cast iron 1 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. CAST IRON ONE PIECE THREADED BALL VALVE Materials of main parts:...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China cast iron 1 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

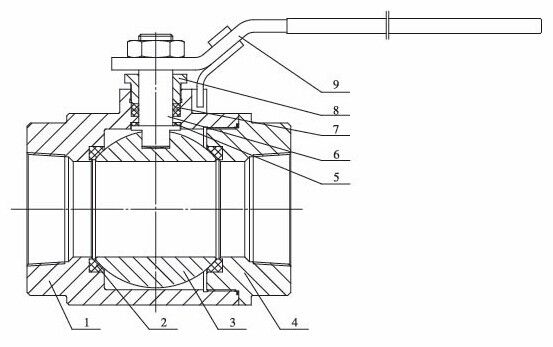

CAST IRON ONE PIECE THREADED BALL VALVE
| MATERIAL | |
1 | BODY | A216 WCB |
2 | SEAT | PTFE/RPTFE |
3 | BALL | A105+ENP |
4 | BONNET | A216 WCB |
5 | THRUST WASHER | RPTFE |
6 | STEM | A276 410 |
7 | PACKING | GRAPHITE/PTFE |
8 | GLAND FLANGE | A216 WCB |
9 | LEVER | STAIN LESS |
Product Specifications :
Materials of main parts:
Name of parts | Q11F-(16-64)C | Q11F-(16-64)P | Q11F-(16-64)R |
Body | WCB | ZG1Cr18Ni9Ti | ZG1Cr18Ni12MoTi |
CF8 | CF8M | ||
Ball | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
304 | 304 | 316 | |
Stem | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
304 | 304 | 316 | |
Seal ring | PTFE | ||
Packing | PTFE | ||
Specifications:
Nominal pressure | PN | 1.6, 2.5, 4.0, 6.4 | MPA | ||
Strength testing pressure | PT | 2.4, 3.8, 6.0, 9.6 | |||
Gas sealing testing pressure(low pressure) | 0.6 | ||||
Sealing testing pressure(high pressure) | 1.8, 2.8, 4.4, 7.1 | ||||
Applicable medium | Q11F-(16-64)C | Q11F-(16-64)P | Q11F-(16-64)R | ||
Water, Oil, Gas | citric acid | Acetic acid | |||
Applicable temperature | -40~180°C | ||||
Main external dimensions:
DN | G | d | L | H | W |
6 | 1/4" | 5 | 40 | 28 | 70 |
10 | 3/8" | 7 | 45 | 30 | 70 |
15 | 1/2" | 9 | 56 | 34 | 90 |
20 | 3/4" | 12 | 60 | 38 | 90 |
25 | 1" | 15 | 70 | 50 | 110 |
32 | 1¼" | 20 | 80 | 56 | 120 |
40 | 1½" | 25 | 85 | 60 | 130 |
50 | 2" | 32 | 100 | 65 | 140 |
65 | 2½" | 38 | 118 | 72 | 180 |
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
