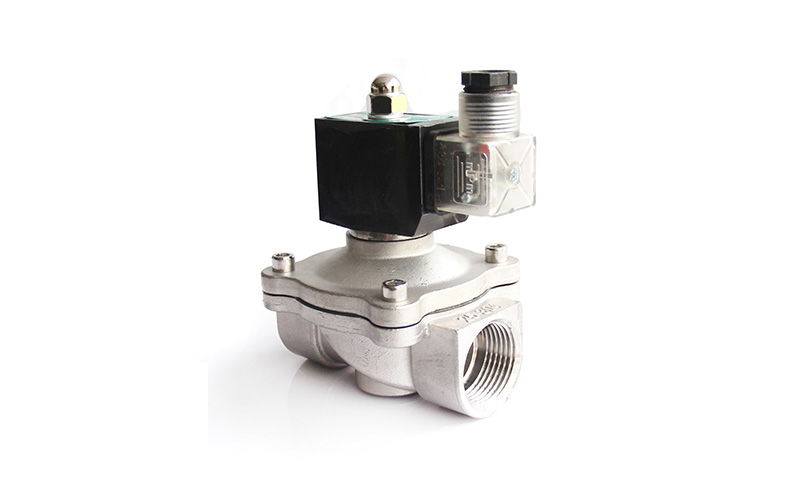

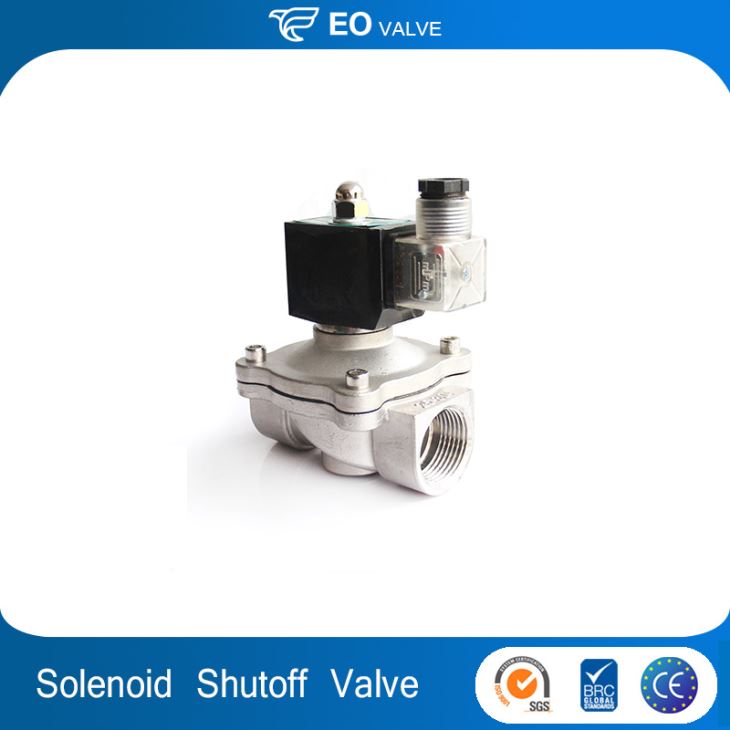

Shutoff 12v Gas Solenoid Valve

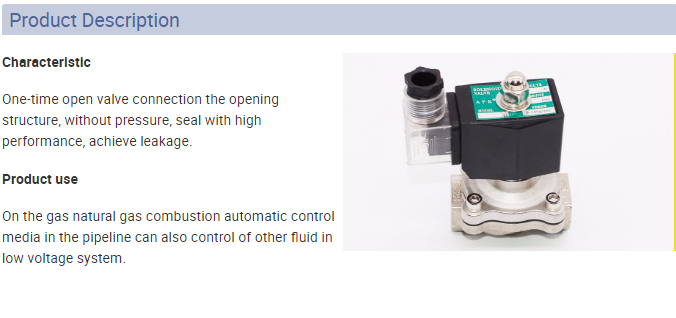

One-time open valve connection the opening structure, without pressure, seal with high performance, achieve leakage.
Quick Details | |
Standard or Nonstandard: | Standard |
Structure: | Pilot |
Pressure: | Low Pressure |
Power: | Solenoid |
Material: | Stainless Steel |
Temperature of Media: | Low Temperature |
Media: | Gas |
Port Size: | G1/2" |
Place of Origin: | China (Mainland) |
Model Number: | Solenoid Valve |
Brand Name: | EO |
Application: | General |
Working pressure: | 6Mpa |
Applicable medium: | Gas |
Medium temperature: | -5~60℃ |
Body material: | Stainless Steel 304 |
Product Specification
Model: 2T-15B
Size: 1/2 inch
Thread: G
Medium: Gas
Material: Stainless steel 304
Type: Normally closed
Temperature : -5~60℃
Operation: Pilot
Voltage: AC380 AV220V AV110V AV24 DC24 DC12 ( allow ±10%)
