Check Valve Threaded End
Products Details : Shenyang EO Valve Co.,Ltd is a leading China check valve threaded end manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Forged steel a105 check Valve threaded ends,Manufactured By Professional Valve......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China check valve threaded end manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Forged steel a105 check Valve threaded ends,Manufactured By Professional Valve...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China check valve threaded end manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

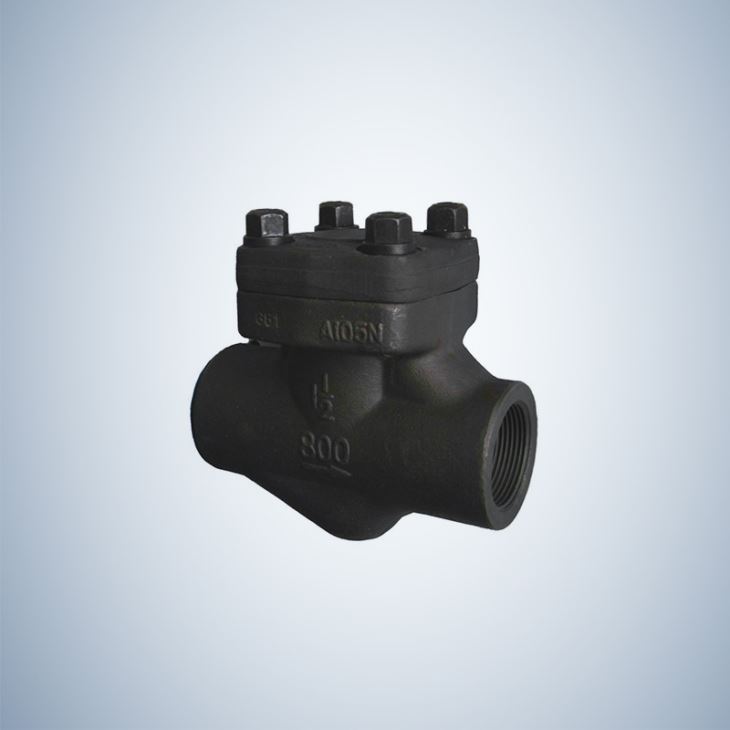

Forged Steel A105 Check Valve Threaded Ends,Manufactured By Professional Valve
Product Specifications :
STANDARDS:
1. DESIGN AND MANUFACTURE: | BS 5352/API 602 |
2. FACE TO FACE DIMENSIONS: | ASME B16.10 OR MANUFACTURER’S SPECIFICATION |
3. FLANGE ENDS DIMENSIONS: NPS1/2”-2” |
ASME B16.5 |
4. BW ENDS DIMENSIONS: | ASME B16.25 |
5.SOCKET WELD ENDS DIMENSIONS: | ASME B16.11 |
6.THREADED ENDS DIMENSIONS: | ASME B1.20.1 |
7. PRESSURE-TEMPERATURE RATINGS: | ASME B16.34 |
8. NORMAL PRESSURE: | CLASS 150~1500 |
9. NORMAL DIAMETER: | NPS 1/2″~2″ |
DESIGN FEATURES:
1.BOLTED COVER OR WELDED COVER DESIGN |
2.SWING DISC: DISC IS FASTENED SECURELY TO DISC HANGER WITH A LOCK NUT AND COPTER PIN |
3.EXPANDED SEAT |
4.SPIRAL WOUND GASKET |
5.SUITABLE MEDIUM: WATER, STEAM, OIL PRODUCTS, NITRIC ACID, ACETIC ACID |
6.SUITABLE TEMPERATUE: -29OC-425OC (FOR A105 & WCB); -29OC-550OC (FOR F22); -29OC-200OC (FOR 304 / 316). |

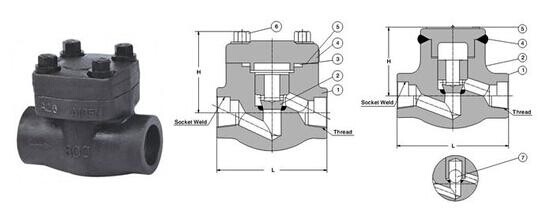

MATERIAL LIST:
ITEM | PART NAME | STANDARD | ALLOY CARBON STEEL | STAINLESS STEEL |
1 | BODY | A105 | A350 LF2 | A182 F316 |
2 | SEAT | A105 | A350 LF2 | A182 F316 |
3 | DISC | A105 | A350 LF2 | A182 F316 |
4 | DISC NUT | CARBON STEEL | STAINLESS STEEL | 316 SS |
5 | HINGE | A105 | A350 LF2 | A182 F316 |
6 | HINGE PIN | A276 410 | A276 304 | A276 316 |
7 | GASKET | 304SS/316SS SPIRAL WOUND/SOLID 304SS | ||
8 | COVER | A105 | A350 LF2 | A182 F316 |
9 | BOLT | A193 B7/B7M | A320 L7/L7M | A193 B8M |
NOTE:OTHER METERIALS ARE AVALIABLE UPON REQUEST
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
