2 Inch 150Lbs Cast Steel Floating Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China 2-inch-150lbs-cast-steel-floating-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 2 INCH 150LB CAST STEEL FLOATING BALL VALVE STANDARD 1.......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China 2-inch-150lbs-cast-steel-floating-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 2 INCH 150LB CAST STEEL FLOATING BALL VALVE STANDARD 1....
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China 2-inch-150lbs-cast-steel-floating-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

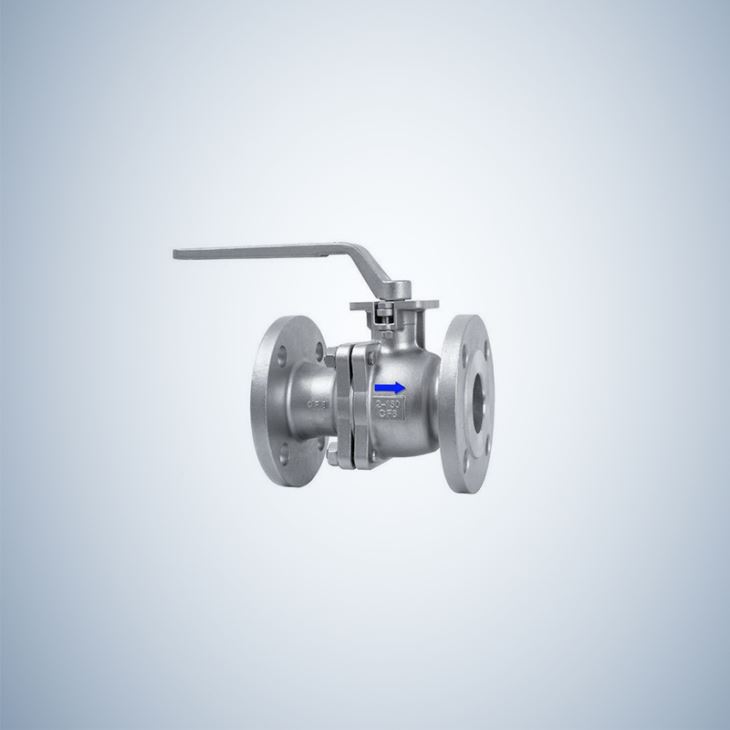

2 INCH 150LB CAST STEEL FLOATING BALL VALVE
Ball valves are best used for fast-acting stop/start applications. They are considered quick-acting because they only require a 90° turn of the handle to operate the valve. The quarter turn minimizes valve operation time and decreases the possibility of leakage due to wear. Ball valves are available in a floating ball design and trunnion mounted design. They are widely used in petroleum refining, long-distance pipelines, chemical, paper making, water conservation, electric power, steel industry and other industries.
Product Specifications :
MATERIAL LIST
|
ITEM |
PART NAME |
MATERIAL |
|
1 |
BODY |
A216 WCB |
|
2 |
STEM RING |
SS+GRAPHITE/PTFE |
|
3 |
PIN |
A276 410 |
|
4 |
DISC |
A216 WCB |
|
5 |
SCREW |
CARBON STEEL |
|
6 |
SEAT GLAND |
CARBON STEEL |
|
7 |
STEM |
A182 F6A |
|
8 |
PACKING |
GRAPHITE/PTFE |
|
9 |
GLAND FLANGE |
A216 WCB |
|
10 |
YOKE |
A216 WCB |
|
11 |
GLAND NUT |
A194 2H |
|
12 |
EYEBOLT |
A193 B7 |
|
13 |
COVER BOLT |
A193 B7 |
|
14 |
GASKET |
SS304/SS316+GRAPHITE |
|
15 |
SPLINT COLLAR |
CARBON STEEL |
|
16 |
COVER |
A216 WCB |
|
17 |
YOKE BOLT |
A193 B7 |
|
18 |
YOKE NUT |
A194 2H |
|
19 |
BOLT |
CARBON STEEL |
|
20 |
GEAR |
ASSEMBLY |
STANDARD :
1. DESIGN AND MANUFACTURE: BS 5351/ API 608/API 6D / ASME B16.34
2. FACE TO FACE DIMENSIONS: ASME B16.10/API 6D
3. FLANGE ENDS DIMENSIONS (NPS1/2”-24”): ASME B16.5
4. BW ENDS DIMENSIONS: ASME B16.25
5. PRESSURE-TEMPERATURE RATINGS: ASME B16.34
6. FIRE SAFE DESIGN: API 607 / API 6FA
7. NORMAL PRESSURE: CLASS 150-1500
8. NORMAL DIAMETER: NPS 2″ ~ 10″
DESIGN FEATURES :
1. FULL PORT DESIGN/ REDUCED PORT DESIGN
2. 2 PIECE BOLTED BODY
3. FLOATING BALL TYPE
4. BLOW-OUT PROOF STEM
5. FIRE SAFE DESIGN
6. ANTI-STATIC DEVICE
7. ISO 5211 DIRECT MOUNTING TYPE
8. WITH LOCKING DEVICE
ADVANTAGE :
Professional: We are professional manufacturer of valves.Ensure our valves is quality controlled and reliable.
Quality Control: We have been engaged in valve design for many years and can guarantee best quality
Experienced Sales Team: Our sales team is experienced, and they all know our product well.
About Price: we provide very reasonable and competitive price for you
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
