6 Inch 600Lb Stainless Steel Trunnion Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China 6-inch-600lb-stainless-steel-trunnion-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 6 INCH 600LB FOR STAINLESS STEEL TRUNNION MOUNTED BALL......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China 6-inch-600lb-stainless-steel-trunnion-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 6 INCH 600LB FOR STAINLESS STEEL TRUNNION MOUNTED BALL...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China 6-inch-600lb-stainless-steel-trunnion-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

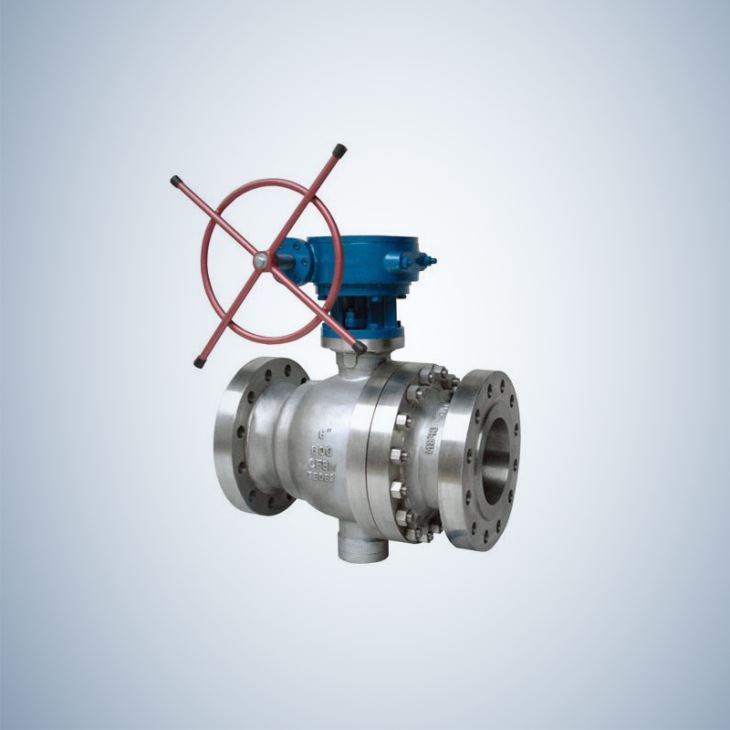

6 INCH 600LB FOR STAINLESS STEEL TRUNNION MOUNTED BALL VALVE
Product Specifications :
6 INCH 600LB FOR STAINLESS STEEL TRUNNION MOUNTED BALL VALVE
STANDARDS:
1. DESIGN AND MANUFACTURE: | BS 5351/API 608/API 6D/ASME B16.34 |
2. FACE TO FACE DIMENSIONS: | ASME B16.10/API 6D |
3. FLANGE ENDS DIMENSIONS: NPS1/2”-24” | |
ASME B16.5 | |
4. NPS 26”& ABOVE: | ASME B16.47 |
5. BW ENDS DIMENSIONS: | ASME B16.25 |
6. PRESSURE-TEMPERATURE RATINGS: | ASME B16.34 |
7. FIRE SAFE DESIGN: | API 607/API 6FA |
8. NORMAL PRESSURE: | CLASS 150~1500 |
9. NORMAL DIAMETER: | NPS 2″~36″ |
Nominal Size: 2"-48", DN50-DN1200
Nominal Pressure: Class150-2500LB or PN16-PN250 or 10K-100K
Material:WCB,LCB,CF8,CF8M,CF3,CF3M, A105,LF2,F304,F316,F304L,F316L
Test Standard: ISO5208, API598, API 6D, BS 6755
Structure Type: One-piece, Two-piece, Three-Piece, Reduced bore
Operated way: Gear, Pneumatic, Electric Actuator, Gas over oil

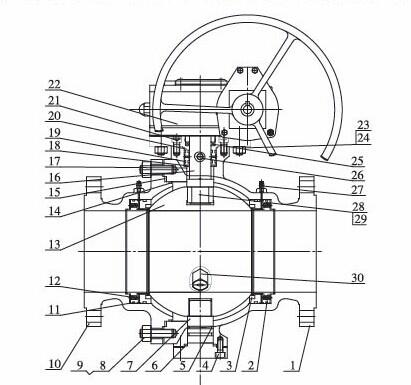

ITEM | PART NAME | MATERIAL |
1 | BODY | A216 WCB |
2 | SEAT RING | A105+ENP |
3 | SEAT INSERT | PTFE/RPTFE/NYLON |
4 | SCREW | A193 B7 |
5 | O-RING | VITON |
6 | GASKET | 304SS/316SS+GRAPGITE |
7 | TRUNNION | A105+ENP |
8 | BOLT | A193 B7 |
9 | NUT | A194 2H |
10 | BONNET | A216 WCB |
11 | O-RING | VITON |
12 | SPRINGS | INCONEL X-750 |
13 | BALL | A105+ENP |
14 | O-ING | VITON |
15 | GASKET | 304SS/316SS+GRAPHITE |
16 | STEM | A1045+RPTFE |
17 | BEARING | A1045+RPTFE |
18 | THRUST WASHER | PTFE |
19 | O-RING | VITON |
20 | PACKING BOX | A105+ENP |
21 | SCREW | CARBON STEEL |
22 | GEAR OPERATOR | ASSEMBLY |
23 | BOLT | CARBON STEEL |
24 | CARBON STEEL | CARBON STEEL |
25 | PACKING | GRAPHITE/PTFE |
26 | GERASE FITTING(STEM) | CARBON |
27 | GREASE TING(SEAT | CARBON |
28 | ANTI STATIC BALL | 304SS |
29 | ANTI STATIC SPRING | 304SS |
30 | DRAIN VALVE AND PLUG | CARBON STEEL |
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
