Design Mounted Flange Cast Steel Trunnion Mounted Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China mounted flange cast steel trunnion ball valve, trunnion mounted valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. MOUNTED FLANGE CAST STEEL TRUNNION......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China mounted flange cast steel trunnion ball valve, trunnion mounted valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. MOUNTED FLANGE CAST STEEL TRUNNION...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China mounted flange cast steel trunnion ball valve, trunnion mounted valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

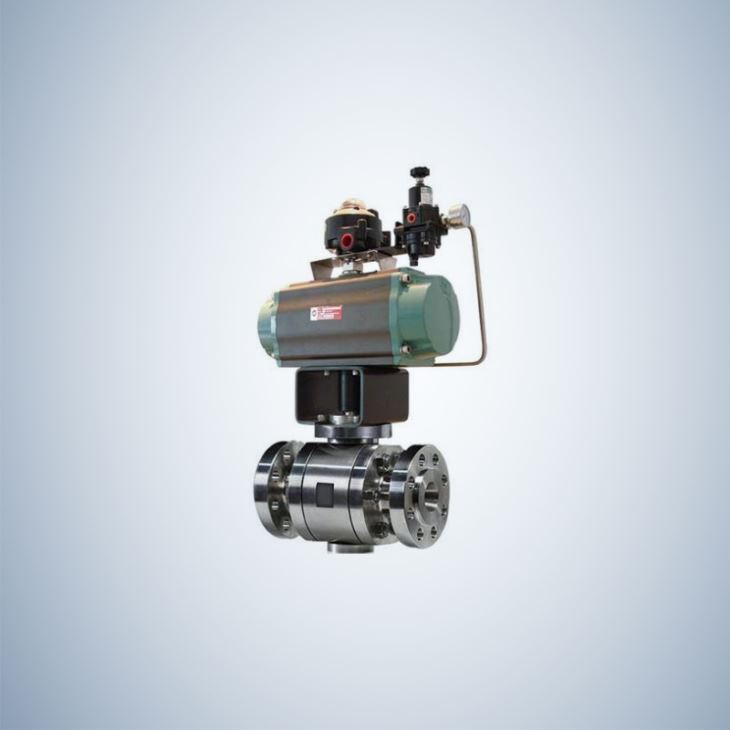

MOUNTED FLANGE CAST STEEL TRUNNION BALL VALVE
Product Specifications :
Model no.:QG4
1.Size:2"~36",DN50~900
2.Pressure:300LB/600LB/900LB
3.Material:cast steel
4.Medium:water,oil,gas,etc.
5.Driving mode:gear operated
(2)Design description:
1.Full port design
2.BB,Bolted bonnet ,split body
3.Trunnion mounted ball type
4.Blow-out proof stem
5.Fire durable construction
6.Anti static device
7.Stopper device
8.ISO5211 mounting pad
9.Flange ends
10.Available with gear box
(3)Standard:
1.Steel ball valves:API608/API6D
2.Fire durable:API607
3.Anti static:API608
4.Steel valves:ASME B16.34
5.Face to face:ASME B16.10
6.End flanges:ASME B16.5
7.Inspection and test:API 598/API6D
(4)Features:
1.Anti-static design
2.Self relief in the body cavity
3.Fire safe design
4.Mounting pad provided
API Series main connection size
Class 150Lb
Main parts and materials
DN(inch) | L | D | K | d | Y | b | Z-do | WS | HS | HW | HD |
6 | 394 | 279 | 241.5 | 216 | - | 26 | 8-22 | 1000 | 305 | 470 | 540 |
8 | 457 | 343 | 298.5 | 270 | - | 29 | 8-22 | - | - | 520 | 580 |
10 | 533 | 406 | 362 | 324 | - | 31 | 12-25 | - | - | 610 | 640 |
12 | 610 | 483 | 432 | 381 | - | 32 | 12-25 | - | - | 650 | 690 |
14 | 686 | 533 | 476 | 413 | - | 35 | 12-29 | - | - | 740 | 785 |
16 | 762 | 597 | 540 | 470 | - | 37 | 16-29 | - | - | 795 | 830 |
18 | 864 | 635 | 578 | 533 | - | 40 | 16-32 | - | - | 860 | 910 |
20 | 914 | 699 | 635 | 584 | - | 43 | 20-32 | - | - | 945 | 990 |
24 | 1067 | 813 | 749.5 | 692 | - | 48 | 20-35 | - | - | 1040 | 1090 |
28 | 1245 | 927 | 864 | 800 | - | 71 | 28-35 | - | - | 1150 | 1210 |
Main parts and materials :
Bady Bonnet | ASTM | A126 WCB | CF8 | CF8M |
Ball | ASTM | 420+HF | 304+HF | 316+HF |
Stem | ASTM | 420 | 304 | 316 |
Seat | ASTM | 420/PTFE | 304/PTFE | 316/PTFE |
Packing | ASTM | Expanded Graphite/PTFE | Expanded Graphite/PTFE | Expanded Graphite/PTFE |
Bolt | ASTM | A193-B7 | A320-B8 | A320-B8 |
Nut | ASTM | A194 2H | A194-8 | A194-8 |
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
