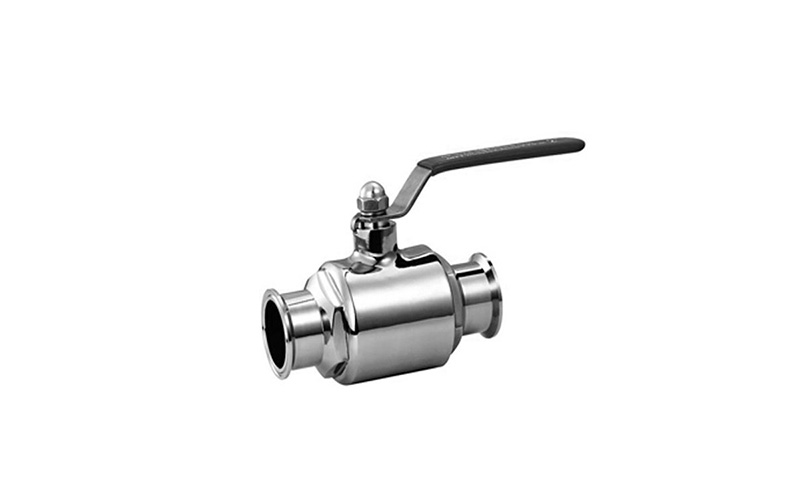

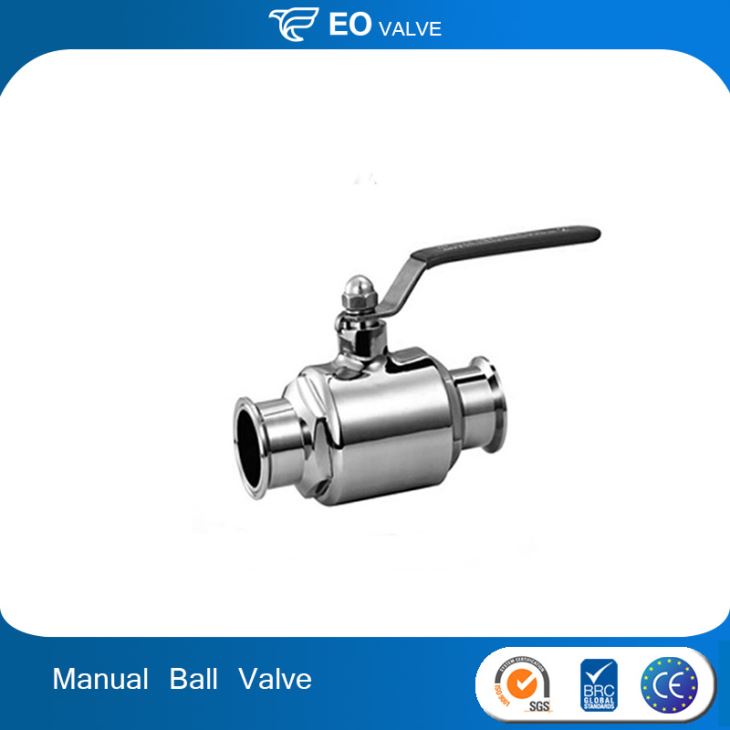

Sanitary Stainless Steel Sanitary Manual 3-piece Sanitary Ball Valves
This series 3-piece sanitary ball valve combines tube full port construction with a variety of sanitary end connections to deliver outstanding performance in high purity applications. The valve's uniform bore diameter and polished internal surfaces improve flow characteristics and eliminate pooling of potential contaminants.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Ball |
| Pressure: | Medium Pressure |
| Power: | Pneumatic |
| Material: | Stainless Steel |
| Temperature of Media: | Medium Temperature |
| Media: | Water |
| Port Size: | DN15-DN100 |
| Place of Origin: | China (Mainland) |
| Model Number: | HYBV-629 |
| Brand Name: | EO |
| Certificate: | ISO9001:2000&CE |
| Coonection Code: | Welded&Clamped&Union&Threaded |
| Internal polished: | Ra<0.8um |
| External polished: | Ra<1.6um |
| Max pressure: | 10bars |
Application
This series 3-piece sanitary ball valve combines tube full port construction with a variety of sanitary end connections to deliver outstanding performance in high purity applications. The valve's uniform bore diameter and polished internal surfaces improve flow characteristics and eliminate pooling of potential contaminants.
Materials
Materials: AISI-316 , AISI304
Size: 1" - 4''
Valve seat: cavity filled Teflon (PTFE)
Design Features
Full port design
3-Piece swing-in-place construction
Corrosion-resistant 316L SS material (default)
With or without mounting pad
With or without locking device on handle
Polish to custom specifications

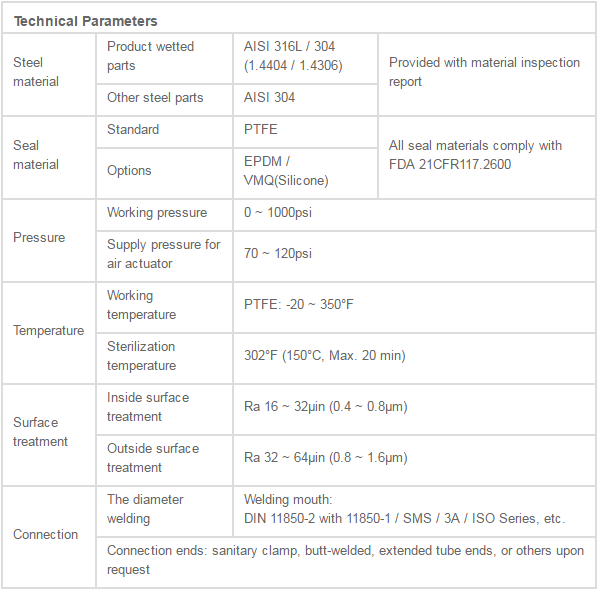

Technical Specification
Sizes available from DN15-1/2" to DN100-4"
Max. working pressure (PTFE): 1000psi (1/2" ~ 1"); 800psi (1 1/2" ~ 2"); 600psi (2 1/2" ~ 4")
Temperature range (PTFE): -20 ~ 350°F
End connections: sanitary clamp, butt-welded, extended tube ends, or others upon request.
Cavity filled seats
