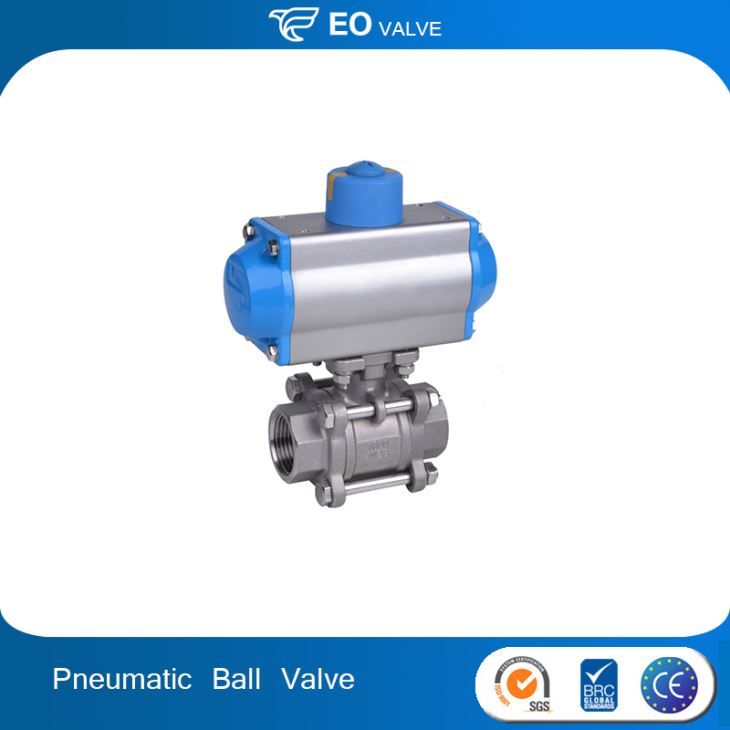

3pcs Type 2 Inch Pneumatic Actuated Stainless Steel Ball Valve
DN50 pneumatic actuated stainless steel ball valve are greatly used in Beer& Drink Filling Machinery Textile printing& Dyeing Gas industry Pharmacy& Medical Equipment Chemical industry Disinfection Frothing Equipment Water/sewage Disposal.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Control |
| Pressure: | High Pressure |
| Power: | Pneumatic |
| Material: | Stainless Steel |
| Temperature of Media: | High Temperature |
| Media: | Water |
| Port Size: | 2" |
| Place of Origin: | China (Mainland) |
| Model Number: | DN50 stainless steel ball valve |
| Brand Name: | EO |
| Application: | General |
| Actuator: | Double acting |
| Ball valve: | DN50 stainless steel ball valve |
| Actuator pressure: | 3~8bar |
| Ball valve material: | CF8 / CF8M |
| Valve seat: | PTFE |
| Fluid: | Air, water, Hot water / air, Steam, water treatment |
| Fluid pressure: | 0~16bar |
| Available size: | DN15~100 |
| Certificates: | CE, ISO, RoHs |
| Delivery: | Sea, Air, Express |

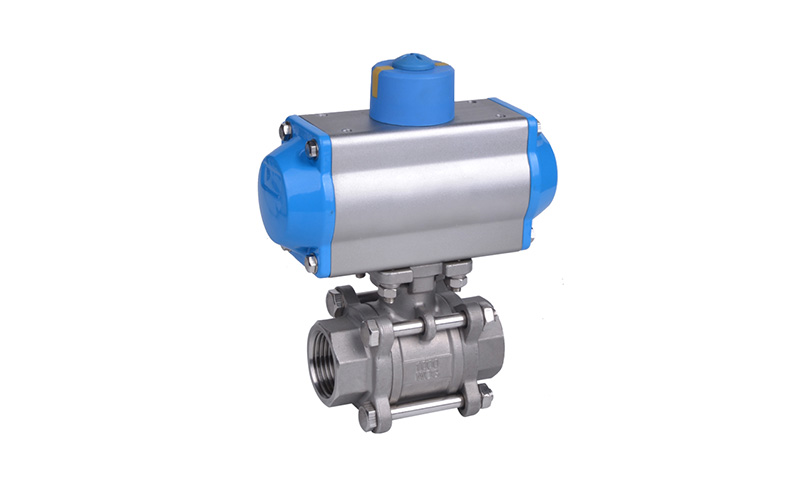

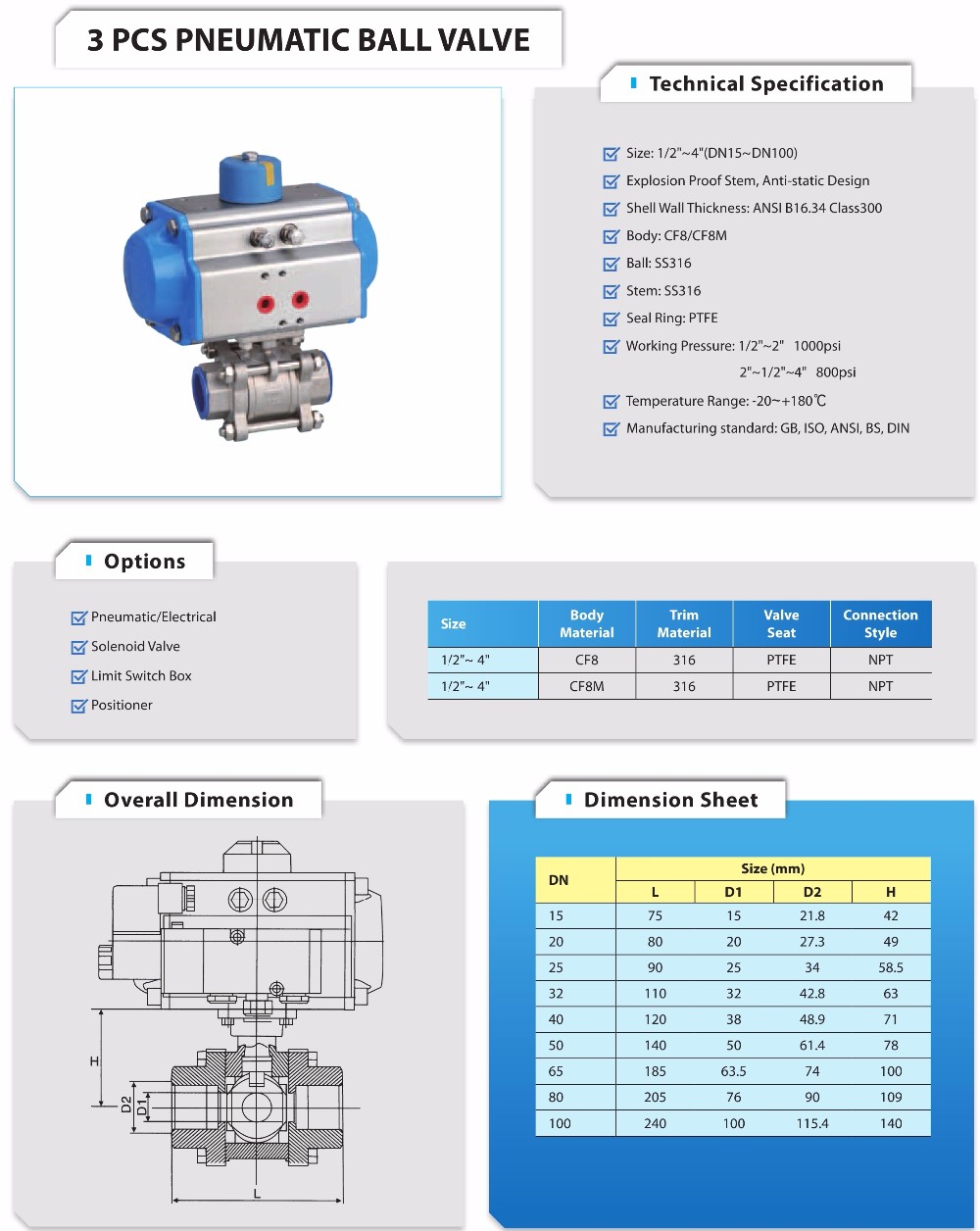

3pcs type DN50 pneumatic actuated stainless steel ball valve.Ball Valve:
Nominal pressure:1000Psi
Applicable temperature:-20~180ºC
Body and Bonnet:CF8(304)CF8M(316)
Ball:CF8(304)CF8M(316)
DN50 pneumatic actuated stainless steel ball valve Stem:304 or316
Sealing and Packing:PTFE
Thread end:BSP,BSPT,DIN2999,NPT
Applications:
DN50 pneumatic actuated stainless steel ball valve are greatly used in
Beer& Drink Filling Machinery
Textile printing& Dyeing
Gas industry
Pharmacy& Medical Equipment
Chemical industry
Disinfection
Frothing Equipment
Water/sewage Disposal
Pneumatic actuator:
Full conformance to the specifications of: ISO5211, DIN3337, VDI/VDE3845, NAMUR.
The extruded high strength aluminum bodies are precision honed and hard anodized yielding an internal bore surface that can provide low coefficient of friction, smooth performance and a long service life.
All acting surfaces are fitted with high quality bearings, resulting in low friction, quite and high cycle life.
The two independent external travel stop adjustment bolts can easily and precisely adjust up to ±5º at both open and closed directions.
Multifunction position indicator with NAMUR standard is convenient for mounting accessories.
Pre-compressed load springs are convenient for safe mounting and disassemble operations.
Die-casted aluminum pistons and end caps are high strength and light weight.
Optional Viton and Silicone seals are available for low and high temperature applications.
