1 Inch Lever 3 Piece Bolted Ball Valve

1 Inch Lever 3 Piece Bolted Ball Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China 1 inch lever 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 1 INCH LEVER THREE PIECE BOLTED BALL VALVE Three piece bolted ball......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China 1 inch lever 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 1 INCH LEVER THREE PIECE BOLTED BALL VALVE Three piece bolted ball...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China 1 inch lever 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

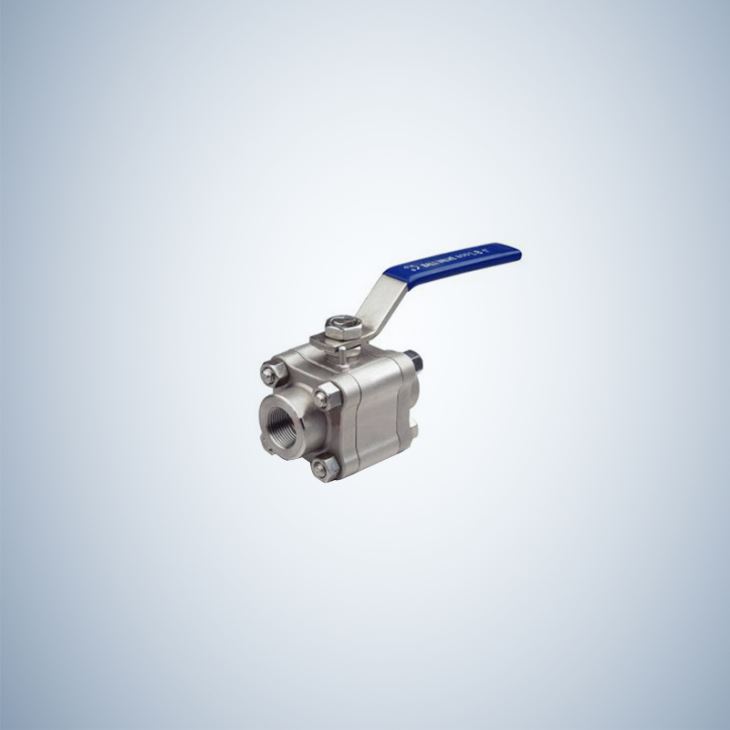

1 INCH LEVER THREE PIECE BOLTED BALL VALVE

Product Specifications :

Three piece bolted ball valve

For food and general chemical service applications

Adjustable stem pack.

Blow-out proof stem design

Body and end caps quality investment casting

On-line repairable

Available in carbon or stainless steel body construction 100% tested by air under water, at 100psi

open and closed positions


Specification

Working pressure :

1/4"~1"  3000psi  W.O.G

1/4 ~2"  2000psi  W.O.G

Temperature Rang:  -30 to 200T

End type:  Threaded socket &  butt weld


Options

Padlocking device

Actuator mounting bracket

Three piece bolted flange or butt-weld end Floating ball valve product description:

1.Sizes: 1/2″ – 2″

2.Pressure Range: ASME Class 600 & 1500

3.Port: Full Port (2″ reduced)

4.Body Materials: A105, LF2, F316ss, F51ss

5.Trim Materials: 316SS, 17-4ph, xm19 or F51

6.Seat Materials: PEEK, Nylon, RPTFE or TFM

7.Seal Materials: Vi-ton+graphite, HNBR+graphite

8.End Configurations: flange or butt-weld ends

9.Operator: Lever

10.Locking Device: Standard

11. Design Standard: API 608, API 6D, ASME B16.34

12.Pressure Test to API 598 or API 6D

13. Conformance Standards: API 607 fire safe, ASME B16.5,

14.B16.10, B16.25, B16.34, NACE compliant



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal


FAQ :

1. What is your difference from other competitors?

1). Scale: 82,000.00 square meters non-dust workshop

2). Condition: good after sale service

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

2. How do you control your quality?

1). The foundry is built to promise our raw material better before production.

2). Strict QC system is set up for the superior quality guarantee.
