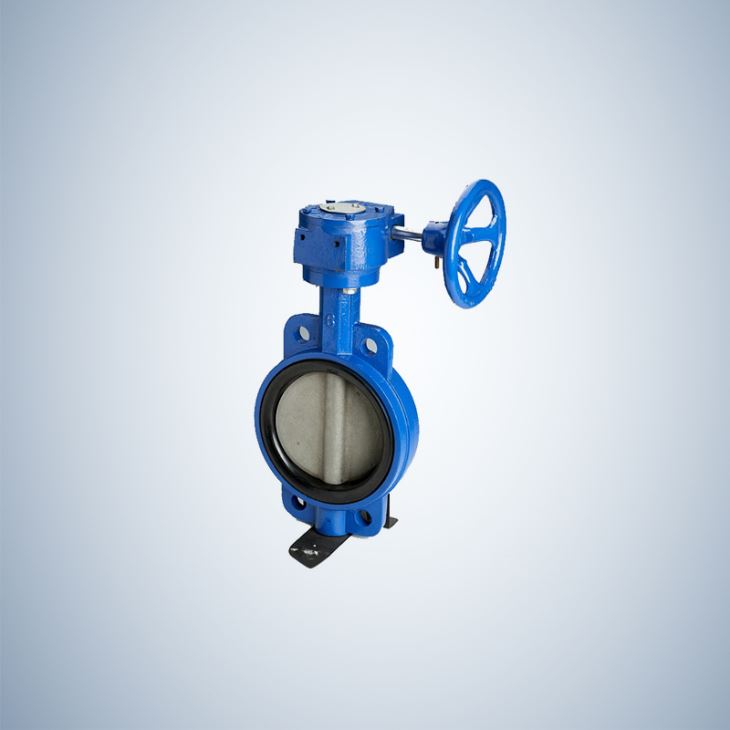

Disc Wafer Type Concentric Butterfly Valve

Disc Wafer Type Concentric Butterfly Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China disc wafer type concentric butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. DISC WAFER FLANGE CONCENTRIC BUTTERFLY VALVE DESIGN FEATURES:......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China disc wafer type concentric butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. DISC WAFER FLANGE CONCENTRIC BUTTERFLY VALVE DESIGN FEATURES:...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China disc wafer type concentric butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

DISC WAFER FLANGE CONCENTRIC BUTTERFLY VALVE


DISC WAFER FLANGE CONCENTRIC BUTTERFLY VALVE

Product Specifications :

DESIGN FEATURES:

1. SIMPLE STRUCTURE AND SEALING PERFORMANCE

2. GOOD FLOW REGULATING FUNCTION AND BI-DIRECTIONAL SEALING FEATURE


STANDARDS:

1. DESIGN AND MANUFACTURE:

API 609

2. FACE TO FACE DIMENSIONS:

API 609

3.FLANGE ENDS DIMENSIONS: NPS1/2”~24”

ASME B16.5

4. PRESSURE-TEMPEARTURE RATINGS:

ASME B16.34

5. PRESSURE:

CLASS 150

6.SIZE:

NPS 2″~16″


MATERIAL LIST

ITEM

PART NAME

STANDARD

LOW TEMPERATURE

STAINLESS STEEL

1

BODY

A216 WCB

A352 LCC

A351 CF8M

2

BUSHING

PTFE

PTFE

PTFE

3

SEAT

PTFE/RUBBER

PTFE/RUBBER

PTFE/RUBBER

4

PIN

A276 410

A276 304

A276 316

5

STEM

A182 F6

A182 F304

A182 F316

6

DISC

A216 WCB

A352 LCC

A351 CF8M

7

GEAR OPERATOR

ASSEMBLY




GEAR OPERATOR, ELECTRICAL OPERATOR, PENUMATIC OPERATOR, HYDRAULIC OPERATOR ETC.ARE AVALIABLE

NOTE: OTHER METERIALS ARE AVALIABLE UPON REQUEST



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
