Stainless Steel Full Port 3 Piece Bolted Full Bore Ball Valve

Stainless Steel Full Port 3 Piece Bolted Full Bore Ball Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China stainless steel full port 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. STAINLESS STEEL FULL PORT THREE PIECE BOLTED BALL......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China stainless steel full port 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. STAINLESS STEEL FULL PORT THREE PIECE BOLTED BALL...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China stainless steel full port 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

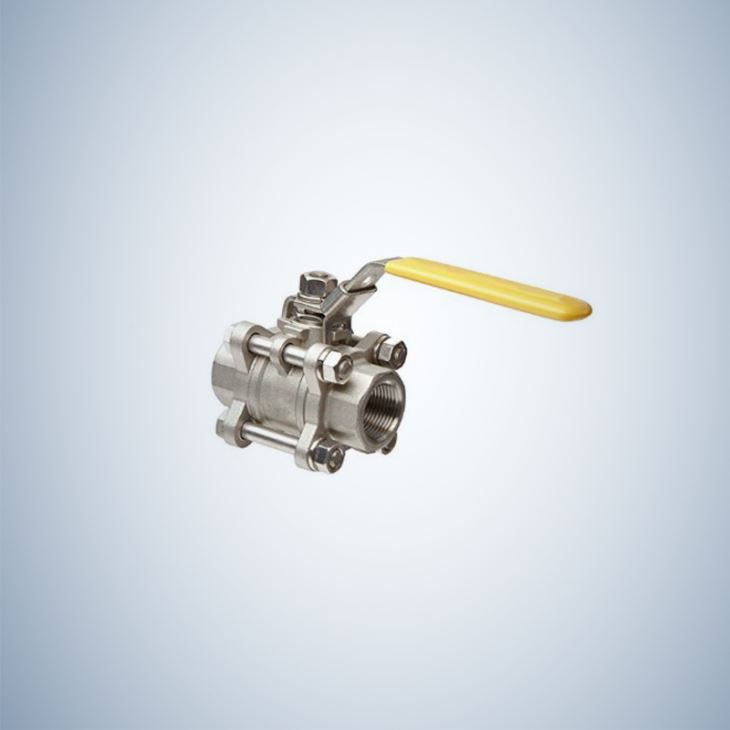

STAINLESS STEEL FULL PORT THREE PIECE BOLTED BALL VALVE

Product Specifications :

Three piece bolted ball valve description
1.Design and manufacturing: ANSI B16.34

2.Test: API598
3.Fact to face dimension: DIN3202-M3
4.Working pressure: 1/4"-2"1000PSI(7MPa), 2 1/2"-4"800PSI(5.6MPa)
5.Temperature:

MF-40~232°C -40~500°F
MP-40~300°C -40~572°F
6.Applicable medium: Water, oil, gas, acid, acetic acid

7.Thread: BSP,BSPT,NPT,DIN259/2999,ISO7/1-1982,ISO228/1-1982,RP,RC
8.Material: ASTM A216-WCB, DIN1.619, ASTM A351-CF8(304), DIN1.4308, ASTM A351-CF8M(316), DIN 1.4408


Materials for main parts:

No.

Part

Material

1

Sealing Ring

PTFE

2

Ball

Stainless Steel

3

Sealing Gasket

PTFE

4

Bonnet

Stainless Steel

5

Body

CF8M

6

Stem

Stainless Steel

7

Thrust Washer

PTFE

8

Packing

PTFE

9

Nut for Packing Gland

Stainless Steel

10

Washer

Stainless Steel

11

Nut for Stem

Stainless Steel

12

Sleeve for Hand Lever

Plastic

13

Hand Lever

Stainless Steel


Standard
Design A cc: ASME B16.25/GB 12224
Thread A cc: ANSI B1.20.1
BS 21/2799
DIN 259/2999
ISO 228
Inspection&Testing A cc: API598


FAQ

1. What is your difference from other competitors?

1). Scale: 82,000.00 square meters non-dust workshop

2). Condition: good after sale service

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

2. How do you control your quality?

1). The foundry is built to promise our raw material better before production.

2). Strict QC system is set up for the superior quality guarantee.



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal


FAQ :

1. What is your difference from other competitors?

1). Scale: 82,000.00 square meters non-dust workshop

2). Condition: good after sale service

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

2. How do you control your quality?

1). The foundry is built to promise our raw material better before production.

2). Strict QC system is set up for the superior quality guarantee.
