Flange Type WCB Gate Valve Flange Ends
Products Details : Shenyang EO Valve Co.,Ltd is a leading China wcb gate valve flange ends manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Factory supplied Cast Steel rising stem flange ends Gate Valve,Manufactured By......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China wcb gate valve flange ends manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Factory supplied Cast Steel rising stem flange ends Gate Valve,Manufactured By...
Products Description :
Shenyang EO Valve Co.,Ltdis a leading China wcb gate valve flange ends manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

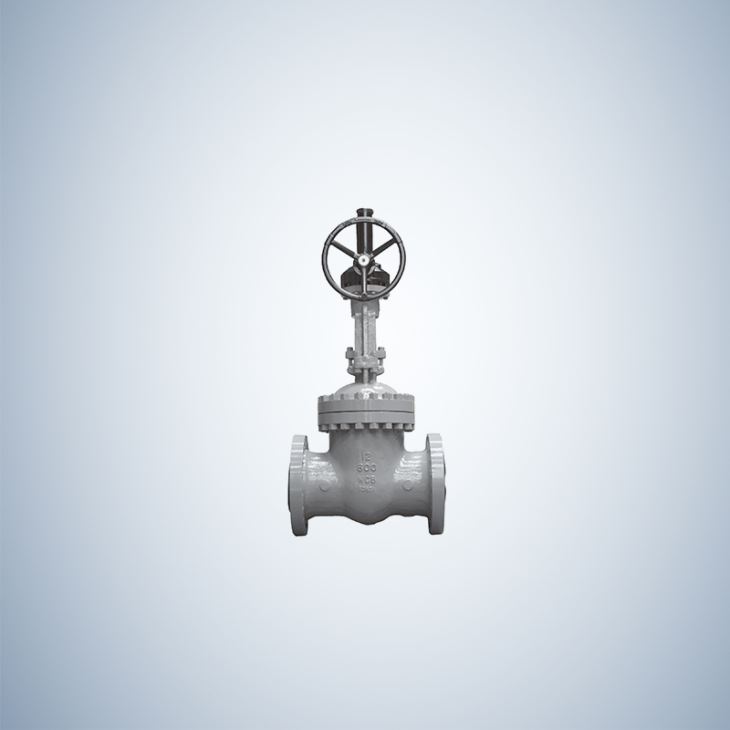

Factory Supplied Cast Steel Rising Stem Flange Ends Gate Valve
Product Specifications :
Product Features:
1). Size: 1/2"-36".
2). Material:CF8, CF8M, CF3, CF3M. 304 ,304L,316,316L. WCB, WCC etc are available
3). Class: 150LB, 300LB, 600LB, 900LB,1500LB, 2500LB
4). Suitable medium: water, oil, air and some corrosive liquid
5). Temperature range: -20°C - 425°C
6). Operate: handwheel, pneumatic, actuator
7). Design and manufacture: API 6D & API 600
8). Inspection and Test: API 6D & API 598
9). Flange end dimension: ASME B16.5 & MSS-SP-44
10). Butt-welding end dimension: ASME B16.25
11). Face to face: API 6D & ASME B16.10
12).Certificate: API, CE, TS, ISO, AZ,Gost
Bill of Material:
1 | PARTNAME | STANDARD | LOW TEMPERATURE | STAINLESS STEEL |
1 | BODY | A216 WCB | A352 LCC | A351 CF8M |
2 | SEAT | A105 | A350 LF2 | A182 F316 |
3 | WEDGE | A216 WCB | A352 LCC | A351 CF8M |
4 | STEM | A182 F6 | A182 F304 | A182 F316 |
5 | GASKET | 304SS/316SS+GRAPHITE /304SS/316SS METAL RIN | ||
6 | BONNET | A216 WCB | A352 LCC | A351 CF8M |
7 | BOLT | A193 B7/B7M | A320 L7/L7M | A193 B8M |
8 | NUT | A194 2H/2HM | A194 7/7M | A194 8M |
9 | BACKSEAT BUSHING | A276 410 | A276 304 | A276 316 |
10 | PACKING | GRAPHITE/PTF | ||
11* | LANTERN RING | A276 410 | A276 304 | A276 316 |
12 | GLAND FLANGE | A216 WCB | ASTM A352 LCC | A351 CF8 |
13 | GLAND | 276 410 | 276 410 | A276 316 |
14 | GLAND NUT | A194 2H/2HM | A194 7/7M | A194 8 |
15 | EYEBOLT | A193 B7/B7M | A320 L7/L7M | A193 B8 |
16 | STEM NUT | A439 D2/Cu-ALLOY | ||
17 | YOKE | A216 WCB | A352 LCC | A351 CF8 |
18 | HANDWHEEL | STEEL/DUCTILE IRON | ||
SEALING FACE OVERLAY | API TRIMS AVAILABLE | |||
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
