NPT Ends Forged Gate Valve

NPT Ends Forged Gate Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China npt ends forged gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO Valve Co.,Ltd is a leading China npt ends...

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China npt ends forged gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China npt ends forged gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

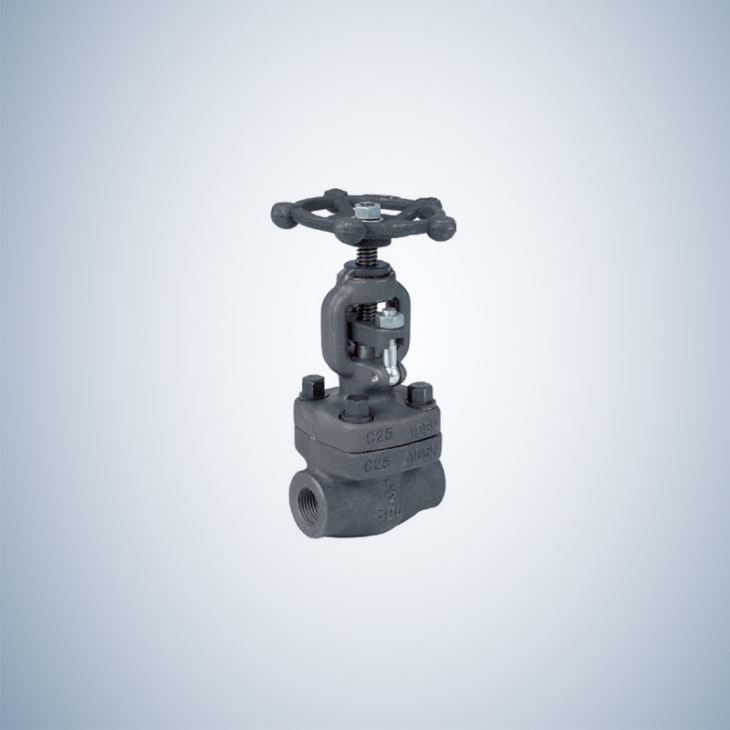

NPT Ends Forged Steel Gate Valve.

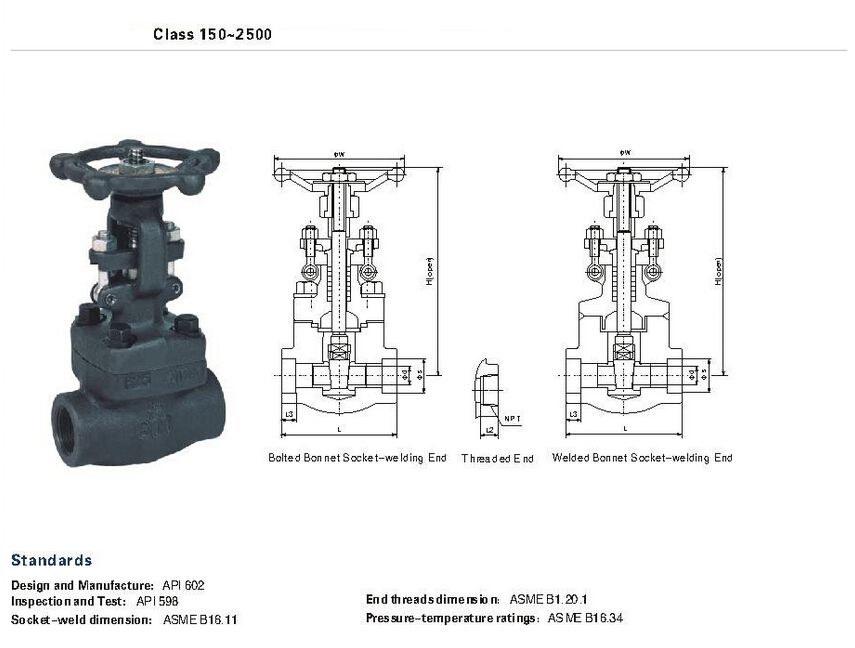

Product Specifications :

Standard:

·Design : API 602

·Face to face : ASME B 16.10

·End Flange :  ASME B 16.5

·Butt welding ends : ASME B 16.25

·Socket Welding ends :ASME B 16.11

·Screw ends : ASME B 16.20.1

·Inspection and test :  API 6D , API 598.


Design feature:

1. Bolted Bonnet or Welded Bonnet

2. WEDGE TYPE: Optional Flexible&solid wedge

3. BACK SEAT DESIGN

4. STEM IS INTEGRALLY FORGED AND CONNECTED WITH WEDGE BY T-JOINT

5. PACKING IS FLEXIBLE GRAPHITE OR OTHER MATERIALS ACCORDING TO CLIENTS REQUIREMENTS, AND A SPRING-LOADED MECHANISM CAN BE PROVIDED AS PER SPECIAL REQUIREMENTS

6. OUTSIDE SCREW AND YOKE (OS&Y)


Main Parts Material:

ITEM

PART NAME

STANDARD

LOW TEMPERATURE

STAINLESS STEEL

1

BODY

A105

A350 LF2

A182 F316

2

SEAT

A105

A350 LF2

A182 F316

3

WEDGE

A105

A350 LF2

A182 F316

4

STEM

A182 F6

A182 F304

A182 F316

5

GASKET

304SS/316SS+GRAPHITE/SOFT CARBON STEEL/304SS/316SS METAL RING

6

BONNET

A105

A350 LF2

A182 F316

7

BOLT

A193 B7/B7M

A320 L7/ L7M

A193 B8M

8

STEM PACKING

GRAPHITE / PTFE

9

GLAND

276 410

276 410

A276 316

10

GLAND FLANGE

A105

A350 LF2

A182 F316

11

GLAND NUT

A194 2H/2HM

A194 7/7M

A194 8

12

EYEBOLT

A193 B7/B7M

A320 L7/L7M

A193 B8

13

STEM NUT

A276 420 /Cu-ALLOY

14*

HANDWHEEL

STEEL/ DUCTILE IRON


* ELECTRICAL OPERATOR AND PNEUMATIC OPERATOR ARE AVAILABLE

NOTE: OTHER MATERIALS ARE AVAILABLE UPON REQUEST


Advantage:

1). Scale: 82,000.00 square meters non-dust workshop

2). The foundry is built to promise our raw material better before production.

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

5). Strict QC system is set up for the superior quality guarantee.



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal


FAQ :

1. What is your difference from other competitors?

1). Scale: 82,000.00 square meters non-dust workshop

2). Condition: good after sale service

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

2. How do you control your quality?

1). The foundry is built to promise our raw material better before production.

2). Strict QC system is set up for the superior quality guarantee.
