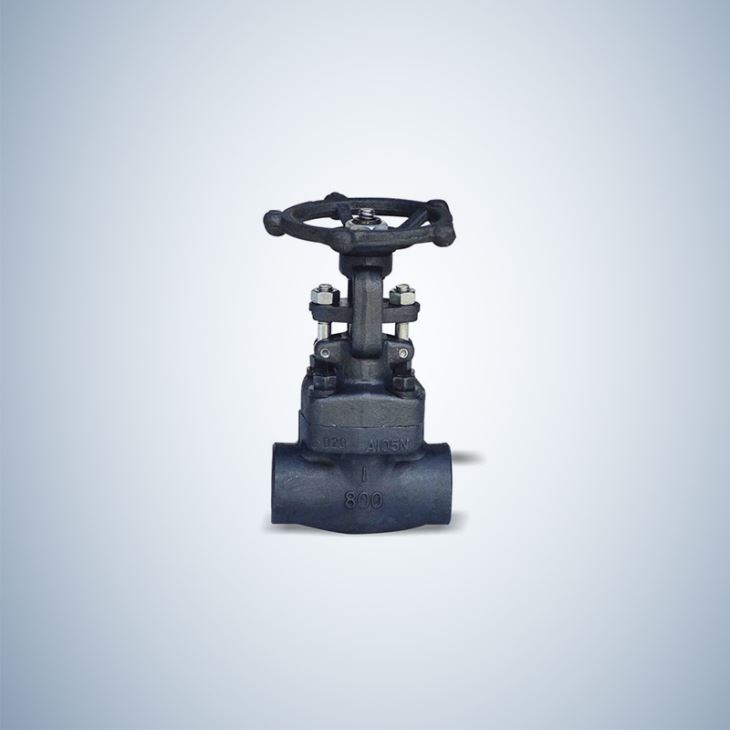

300Lb Forged Steel Bolted Bonnet Gate Valve

300Lb Forged Steel Bolted Bonnet Gate Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China 300lb forged steel bolted bonnet gate valve, 300lb gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service Products D escription : Shenyang EO Valve Co.,Ltd...

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China 300lb forged steel bolted bonnet gate valve, 300lb gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China 300lb forged steel bolted bonnet gate valve, 300lb gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.


API Standard Class 300lbForged Steel Gate Valve.

Product Specifications :

Product Specification

Design Standard: API 600/6D, GB, DIN

Flanged Standard: ASME  B16.5

Butt welded Standard: AEME B16.25

Face to Face Standard: ASME B16.10

Inspection and testing Standard: API 598

1) Size: 1 1/4"~2"

2) Pressure class: 150LB ~2500LB

3) Temperature: -29°C  ~ 425°C
4) Suitable medium: water, oil, gas and other fluid.
5) Body material: WCB, WC1, WC5, WC6, WC9, C12, CF3, CF8, CF3M, CF8M.
6) Operation: manual control, gear operated, motor actuated, pneumatic actuated etc.


Design Feature:

1. B.B-BOLTED BONNET OR WELDED BONNET

2. OS&Y - outside screw and yoke

3. Bolted Gland

4. Metal-graphite Spiral wound gasket between the Bonnet & Body

5. PACKING IS FLEXIBLE GRAPHITE OR OTHER MATERIALS ACCORDING TO CLIENTS REQUIREMENTS, AND A SPRING-LOADED MECHANISM CAN BE PROVIDED AS PER SPECIAL REQUIREMENTS

6. Main materials: A105, LF2, F5, F22, F304, F316, F347, F321, F51, Monel, 20# Alloy

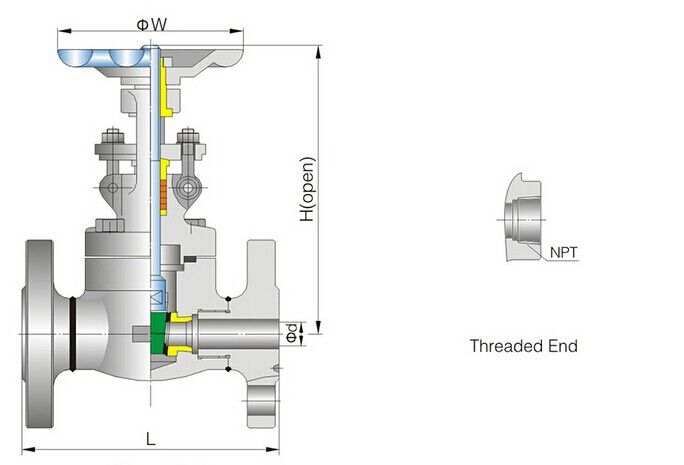

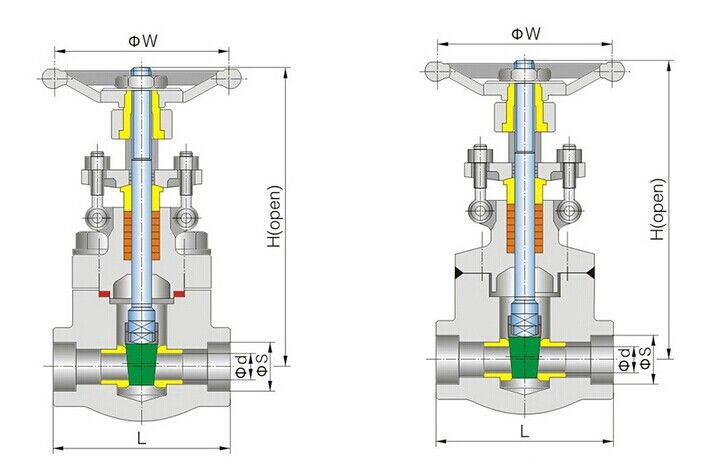

Technical Drawing(For reference):



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
