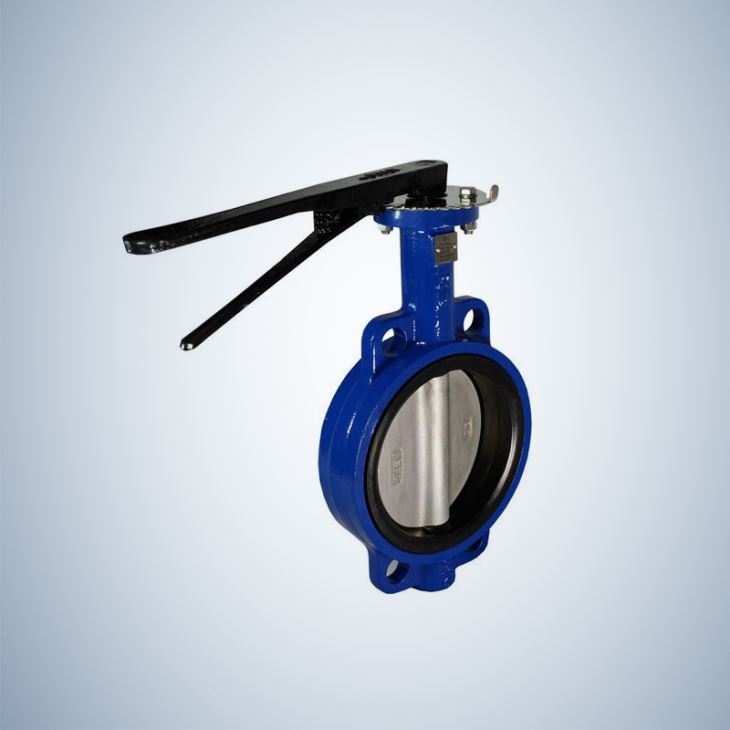

Handle Operated Concentric Butterfly Valve

Handle Operated Concentric Butterfly Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China handle operated concentric butterfly valve, handle butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. HANDLE OPERATED CONCENTRIC BUTTERFLY......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China handle operated concentric butterfly valve, handle butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. HANDLE OPERATED CONCENTRIC BUTTERFLY...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China handle operated concentric butterfly valve, handle butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.



Product Applications :

It is widely used in pipelines as control or throttling apparatus for supply and drainage pipeline of potable water, seawater, waste water, petrochemical industry, energy and power, shipping, food and drug, natural gas, coal gas, HVAC and fire protection systems as well as the building pipelines.



HANDLE OPERATED CONCENTRIC BUTTERFLY VALVE

Product Specifications :

1.Small in size and light in weight, ways installation and maintenance, it can be mounted wherever needed

2.Simple and compact construction, quick 90 degree on-off operation

3.Minimized operating torque, energy saving

4.Flow cure tending to straight line, Excellent regulation performance

5.Long service life.Standing the test of tens of thousands opening/closing operations

6.Bubbles-tight sealing with no leakage under the pressure test

7.Wide selections of materials, applicable for various medium

8.Stem and disc are connected by means of pin-less structure with more reliable performance

9.Disc seat and body of non backed slim-disc butterfly valve are connected by frame less structure to overcome leakage on the connecting position of flange sealing surface


Features :

1. Compact structure, convenient manufacture;

2. Easy handling,90 degrees rotation with quick on/off switch;

3. Stable flow regulating, good regulating characteristics;

4. Low flow resistance, large fluid;

5. Numbers of on/off times up to tens of thousands; long life service;

6. Various type of parts materials opted for use in different medium;

7. Both inner and outer surfaces of the valve body are elector-statically coated with epoxy resin powder which is environmentally friendly and non-toxic, directly applying to living and potable water, as well as food and drug industry;

8. Symmetrical structure in both sides, duplex use, especially applied to in condition with duplex sealing and easy corrosion of valve body;


Material list :

ITEM

PART NAME

STANDARD

LOW TEMPERATURE

STAINLESS STEEL

1

BODY

A216 WCB

A352 LCC

A351 CF8M

2

BUSHING

PTFE

PTFE

PTFE

3

SEAT

PTFE/RUBBER

PTFE/RUBBER

PTFE/RUBBER

4

PIN

A276 410

A276 304

A276 316

5

STEM

A182 F6

A182 F304

A182 F316

6

DISC

A216 WCB

A352 LCC

A351 CF8M

7

GEAR OPERATOR

ASSEMBLY





PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  : 4-5 weeks after receipt of down payment by T/T

Payment    T/T, L/C, Western Union and PayPal


FAQ

1. What is your difference from other competitors?

1). Scale: 82,000.00 square meters non-dust workshop

2). Condition: good after sale service

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

2. Which industries will be applied to your valves?


The oil & gas, coal mine, water conservancy, drilling, power station project, metallurgy and chemical industries etc.
