Products Details :

Shenyang EO Valve Co.,Ltd is a leading China socket weld 1000 wog cast steel 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 1000 WOG LEVER OPERATED THREE PIECE BOLTED BALL...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China socket weld 1000 wog cast steel 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

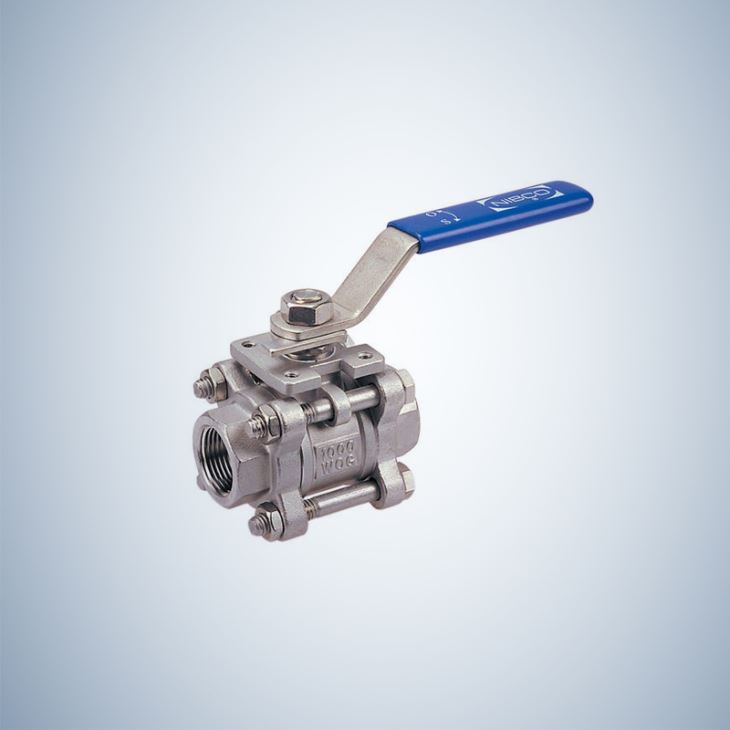

1000 WOG LEVER OPERATED THREE PIECE BOLTED BALL VALVE

Product Specifications :

Control type

Lever operated

Nominal diameter

DN15-DN100mm

Nominal pressure

1.6-6.3MPa

Applicable temperature

PTFE:-30~180°C  PPL:-30~250°C

Connection

3pc thread type,3pc welded type

Body/ core material

304,316,316L

Seat lining

PTFE,PPL

Applicable medium

Gas,steam,water and oil etc


Dimensions of 3pc ball valve with mounting pad

ITEM SIZE

1/4"

3/8"

1/2"

3/4"

1"

11/4"

11/2"

2"

21/2"

3"

4"

D

12.5

12.5

15

20

25

32

38

50

65

76

94

H

48

48

50

52

65

70

85

93

116

125

180

W

105

105

105

126

144

144

189

189

224

224

251

L

72

72

72

80

85

105

113

132

170

186

220


Features:

1. Full Port

2. API607 4th Edition Fire-safe Design Available (W306A)

3. Anti-static Configuration

4. Blow-out Proof Stem

5. Live Loaded Stem Seal

6. Integrated Mounting Pad

7. Fully Encapsulated Body Seals

8. Locking Handle

9. Variety of seat and seal material: Suitable for severe applications


FAQ

1. What is your difference from other competitors?

1). Scale: 82,000.00 square meters non-dust workshop

2). Condition: good after sale service

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

2. How do you control your quality?

1). The foundry is built to promise our raw material better before production.

2). Strict QC system is set up for the superior quality guarantee.



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
