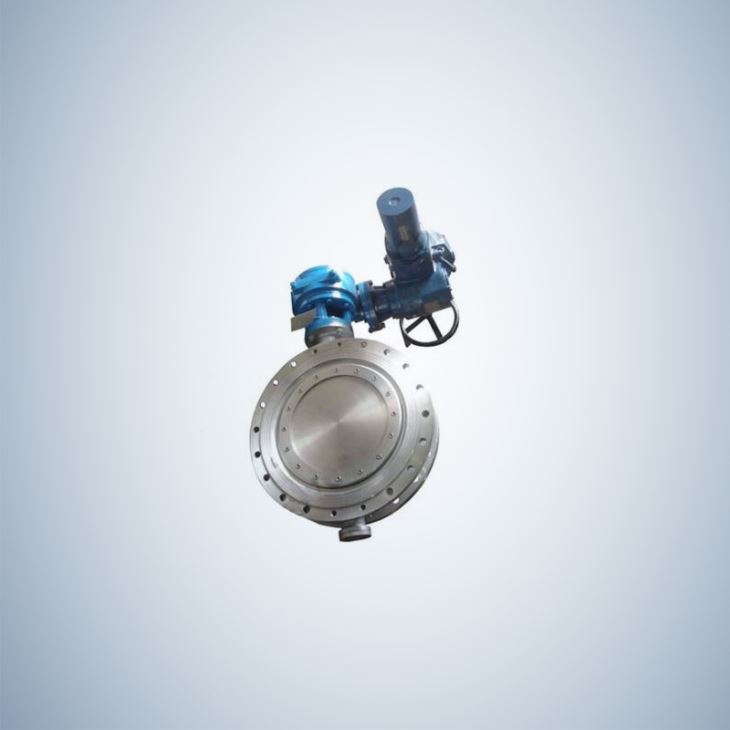

Flange Type Manual Triple Offset Butterfly Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China flange type manual triple offset butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. FLANGE TYPE MANUAL HARD SEAL TRIPLE OFFSET BUTTERFLY......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China flange type manual triple offset butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. FLANGE TYPE MANUAL HARD SEAL TRIPLE OFFSET BUTTERFLY...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China flange type manual triple offset butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
FLANGE TYPE MANUAL HARD SEAL TRIPLE OFFSET BUTTERFLY VALVE
Product Specifications :
APPLICABLE STANDARDS :
Design & Manufacture according to: API 609
Face to Face according to: ASME B16.10
Flange Dimensions according to: ASME B16.5
Pressure & Temperature according to: ASME B16.34
Test & Inspection according to: API 6D / API 598
Visual Inspection according to: MSS SP-55
Marking according to: MSS SP-25
|

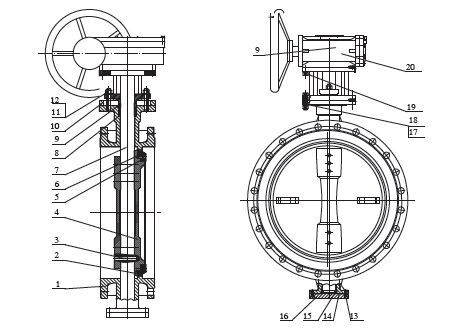

ITEM |
PART NAME |
MATERIAL |
|
1 |
BODY |
A216 WCB |
|
2 |
STEM RING |
SS+GRAPHITE/PTFE |
|
3 |
PIN |
A276 410 |
|
4 |
DISC |
A216 WCB |
|
5 |
SCREW |
CARBON STEEL |
|
6 |
SEAT GLAND |
CARBON STEEL |
|
7 |
STEM |
A182 F6A |
|
8 |
PACKING |
GRAPHITE/PTFE |
|
9 |
GLAND FLANGE |
A216 WCB |
|
10 |
YOKE |
A216 WCB |
|
11 |
GLAND NUT |
A194 2H |
|
12 |
EYEBOLT |
A193 B7 |
|
13 |
COVER BOLT |
A193 B7 |
|
14 |
GASKET |
SS304/SS316+GRAPHITE |
|
15 |
SPLINT COLLAR |
CARBON STEEL |
|
16 |
COVER |
A216 WCB |
|
17 |
YOKE BOLT |
A193 B7 |
|
18 |
YOKE NUT |
A194 2H |
|
19 |
BOLT |
CARBON STEEL |
|
20 |
GEAR |
ASSEMBLY |
PACKAGING & DELIVERY :
Packaging details: electric actuated butterfly valve: the strong plywood cases or as per the customer'request.
Delivery details: 4-5 weeks after receipt of down payment by T/T
FAQ
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
