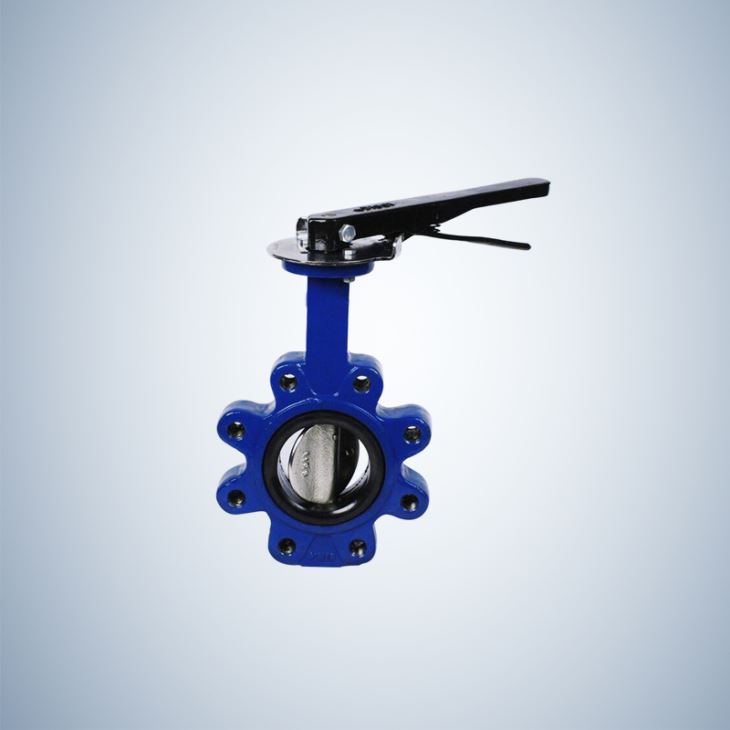

Stainless Steel Disc Concentric Butterfly Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China stainless steel disc concentric butterfly valve, stainless butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. STAINLESS STEEL DISC CONCENTRIC......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China stainless steel disc concentric butterfly valve, stainless butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. STAINLESS STEEL DISC CONCENTRIC...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China stainless steel disc concentric butterfly valve, stainless butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
Product Applications :
It is widely used in pipelines as control or throttling apparatus for supply and drainage pipeline of potable water, seawater, waste water, petrochemical industry, energy and power, shipping, food and drug, natural gas, coal gas, HVAC and fire protection systems as well as the building pipelines.
Product Specifications :

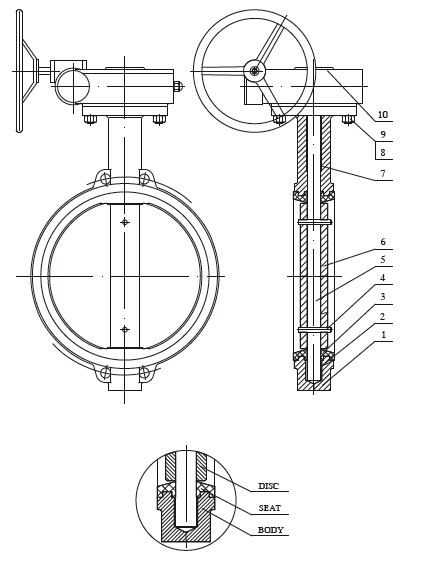

STAINLESS STEEL DISC CONCENTRIC BUTTERFLY VALVE
ITEM | PART NAME | MATERIAL |
1 | BODY | A216 WCB |
2 | BUSHING | PTFE |
3 | SEAT | PTFE/RUBBER |
4 | PIN | A276 410 |
5 | STEM | A182 F6 |
6 | DISC | A216 WCB |
7 | BUSHING | PTFE |
8 | GEAR OPERATOR | ASSEMBLY |
STANDARDS:
1. DESIGN AND MANUFACTURE: | API 609 |
2. FACE TO FACE DIMENSIONS: | API 609 |
3.FLANGE ENDS DIMENSIONS: NPS1/2”~24” | ASME B16.5 |
4. PRESSURE-TEMPEARTURE RATINGS: | ASME B16.34 |
5. PRESSURE: | CLASS 150 |
6.SIZE: | NPS 2″~16″ |
MATERIAL LIST:
ITEM | PART NAME | STANDARD | LOW TEMPERATURE | STAINLESS STEEL |
1 | BODY | A216 WCB | A352 LCC | A351 CF8M |
2 | BUSHING | PTFE | PTFE | PTFE |
3 | SEAT | PTFE/RUBBER | PTFE/RUBBER | PTFE/RUBBER |
4 | PIN | A276 410 | A276 304 | A276 316 |
5 | STEM | A182 F6 | A182 F304 | A182 F316 |
6 | DISC | A216 WCB | A352 LCC | A351 CF8M |
7 | GEAR OPERATOR | ASSEMBLY | ||
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
Thanks for your visiting.
We look forward to your inquiry.
