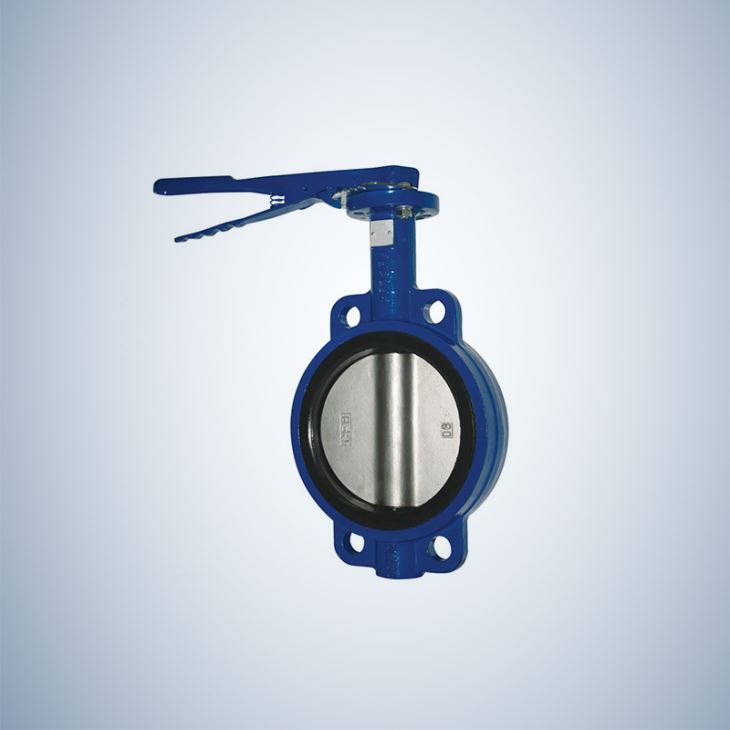

Ductile Iron Wafer Concentric Butterfly Valve

Ductile Iron Wafer Concentric Butterfly Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China ductile iron wafer concentric butterfly valve, ductile iron butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. DUCTILE IRON WAFER CONCENTRIC......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China ductile iron wafer concentric butterfly valve, ductile iron butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. DUCTILE IRON WAFER CONCENTRIC...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China ductile iron wafer concentric butterfly valve, ductile iron butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.



Product Applications :

It is widely used in Those kinds of the wafer type concentric butterfly valve are widely used in petro oil, electric power, low temperature resistant, corrosion resistant.



DUCTILE IRON WAFER CONCENTRIC BUTTERFLY VALVE

Product Specifications :

1. Size: DN50-500.

2. Body: Cast iron/Ductile iron/Stainless steel

3. Disc: Ductile iron/Stainless steel.

4. Tenth more highly, seal more reliably for seat.

5. Easy and fast installation, making cost minimized


Concentric butterfly valve :

1. Double axis butterfly valve designed to comply with MSS-SP-67, BS 5155 and API609. Compatible with GB, DIN, BS, ANSI125/150 flanges. Face to face according to ISO5752.

2. The seat of double axis butterfly valve is designed in to without back, the toque-and-groove seat is lower torque and replaceable.

3. There is O-ring caste on the seal surface of the seat, negates need for flange gaskets.

4. Available in wafer type and lug type.

5. Available with handles, manual gear operators and electric or pneumatic actuators.


STANDARDS :

1. DESIGN AND MANUFACTURE:

API 609

2. FACE TO FACE DIMENSIONS:

API 609

3.FLANGE ENDS DIMENSIONS: NPS1/2”~24”

ASME B16.5

4. PRESSURE-TEMPEARTURE RATINGS:

ASME B16.34

5. PRESSURE:

CLASS 150

6.SIZE:

NPS 2″~16″


MATERIAL LIST :

ITEM

PART NAME

STANDARD

LOW TEMPERATURE

STAINLESS STEEL

1

BODY

D.I

A352 LCC

A351 CF8M

2

BUSHING

PTFE

PTFE

PTFE

3

SEAT

PTFE/RUBBER

PTFE/RUBBER

PTFE/RUBBER

4

PIN

A276 410

A276 304

A276 316

5

STEM

A182 F6

A182 F304

A182 F316

6

DISC

D.I

A352 LCC

A351 CF8M

7

GEAR OPERATOR

ASSEMBLY


GEAR OPERATOR, ELECTRICAL OPERATOR, PENUMATIC OPERATOR, HYDRAULIC OPERATOR ETC.ARE AVALIABLE

NOTE: OTHER METERIALS ARE AVALIABLE UPON REQUEST


PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
