Ductile Iron Hydraulic Resilient Rubber Butterfly Type Check Valve
Ductile Iron Hydraulic Resilient Rubber Butterfly Type Check Valve; is consisted of pressure self-maintaining hydraulic operated butterfly valve,upperstream and downstream connection pipes,inlet pipe expansion joint,air release valve,by-pass pipe,by-pass pipe expansion joint,by-pass valve,and by-pass valve.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Check |
| Pressure: | Low Pressure |
| Power: | Manual |
| Material: | Casting |
| Temperature of Media: | Normal Temperature |
| Media: | Water |
| Port Size: | DN40-DN400 |
| Place of Origin: | China (Mainland) |
| Model Number: | DH77X-10/10Q/16/16Q check valve |
| Brand Name: | eo |
| Application: | General |
| Nature of company: | Manufacuturer of check valve |
| OEM: | We offer OEM service of check valve |
| Factory history: | Since 1996 |
| Main business: | All kings of check valve |
| Valve type: | Butterfly check valve |
| Certificate: | ISO9001&14001 |
| Connection: | Wafer |
| Body material: | Grey iron/Ductile iron |
| Working Temperature: | ≤80 |

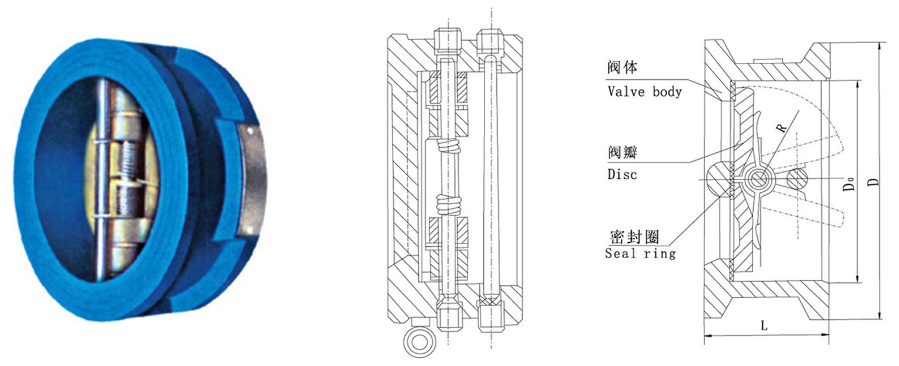

The structurer of PN16 ductile iron hydraulic resilient rubber butterfly type check valve

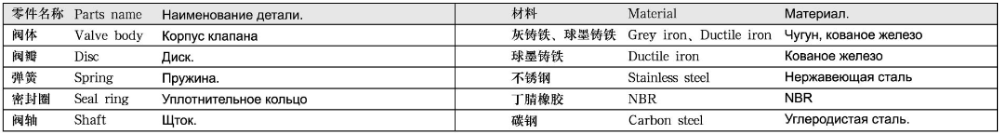

The materials of PN16 ductile iron hydraulic resilient rubber butterfly type check valve

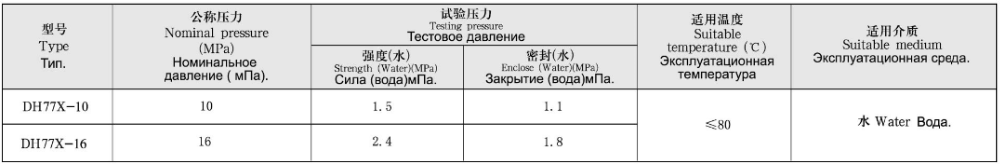

The function and specification of PN16 ductile iron hydraulic resilient rubber butterfly type check valve
The usage of PN16 ductile iron hydraulic resilient rubber butterfly type check valve
To be fixed on such pipelines through which water of ≤80°C and the other noncorrosive agents flow to prevent the back flow of agents.

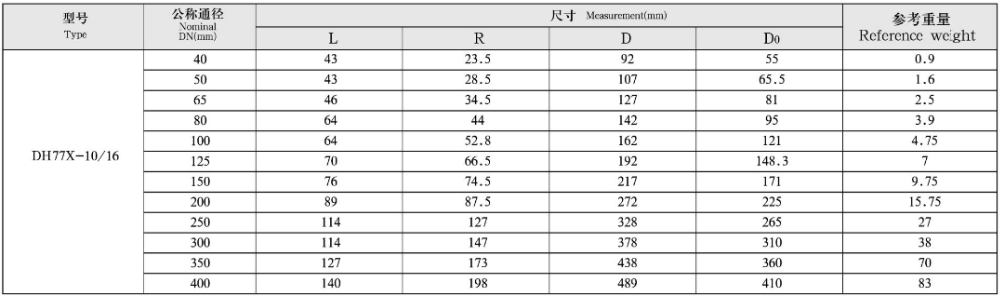

The measurement of PN16 ductile iron hydraulic resilient rubber butterfly type check valve
