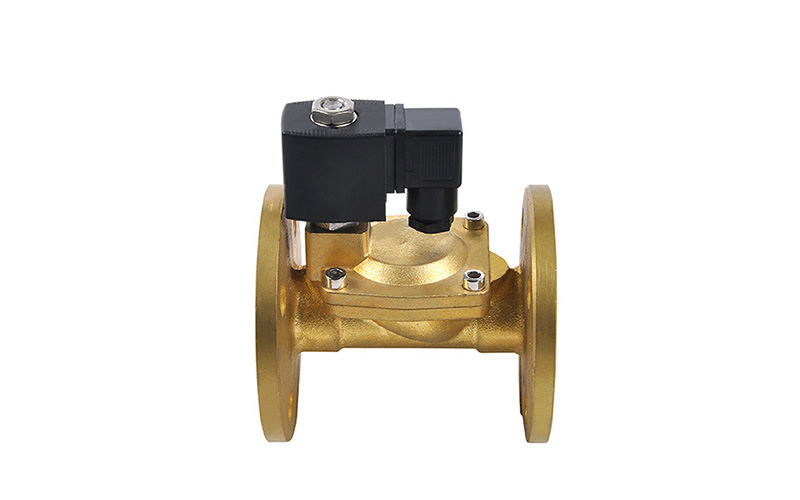

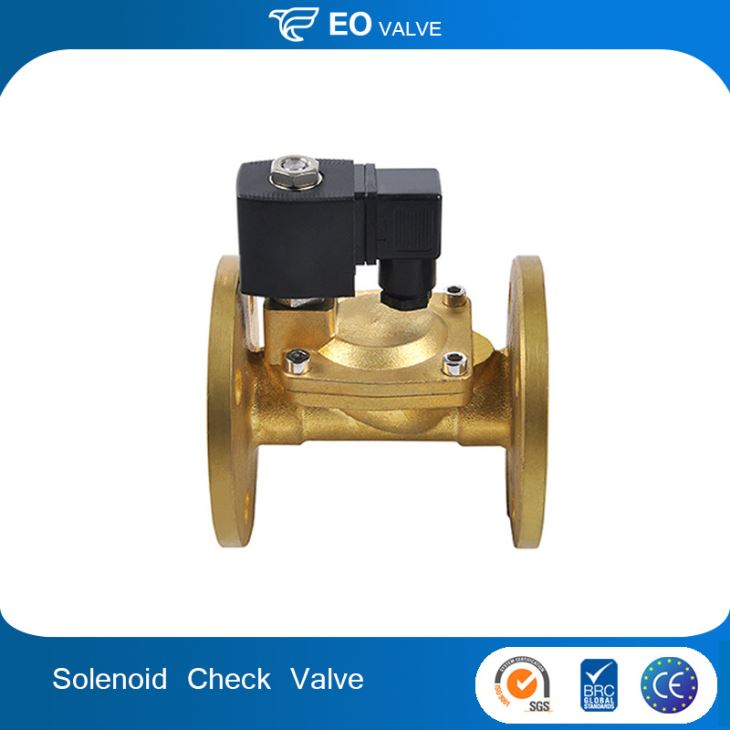

Steam Brass Flange Type Solenoid Check Valve
Steam Brass Flange Type Solenoid Check Valve;Pressure:Medium Pressure,Power:Solenoid,Temperature of Media:Medium Temperature,Port Size:1/2" to F2",Brand Name:EO.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Pilot |
| Pressure: | Medium Pressure |
| Power: | Solenoid |
| Material: | Brass |
| Temperature of Media: | Medium Temperature |
| Media: | Water |
| Port Size: | 1/2" to F2" |
| Place of Origin: | China (Mainland) |
| Model Number: | ZCZ Solenoid valve |
| Brand Name: | EO |
| Application: | General |
| Product type: | Solenoid valve |
| Company type: | Manufacturer |
| Medium: | Water air steam hot water |
| Temperature: | -10 to 180 degree |
| Working pressure: | 0.03 to 1.0Mpa |
| Port size: | 1/2", 2" F3/4", F2" |
| Seal material: | PTFE,VITON |
| Voltage: | 12/24V DC, 110/220V AC |
| Tolerance: | ±10% |
| Warranty: | 1 year |
Specifications:
Flange connection solenoid valve
1.Diaphragm direct lifting type
2.3/8"~2" ,2-way,NC solenoid valve
| Specs and Descriptions | ZCZ160-10 | ZCZ160-15 | ZCZ200-20 | ZCZ250-25 | ZCZ350-35 | ZCZ400-40 | ZCZ500-50 |
| Port Size | G3/8'' | G1/2'' | G3/4'' | G1'' | G1-1/4'' | G1-1/2'' | G2'' |
| CV Value | 4.8 | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
| Type | Normal Closed | ||||||
| Material of Body | Brass | ||||||
| Motion Pattern | Direct Drive | ||||||
| Working Temperature | -5~+80'C(180'C) | ||||||
| Working Pressure | Water/Oil:0~0.5Mpa Air/Gas:0~0.7Mpa | ||||||
| Material of Seal | NBR (EPDM or VITON) | ||||||
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
