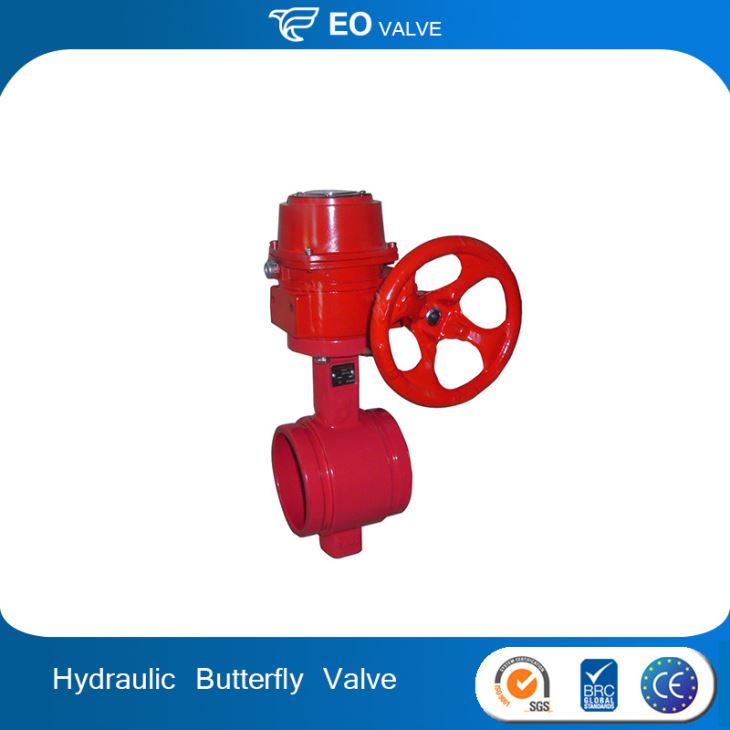

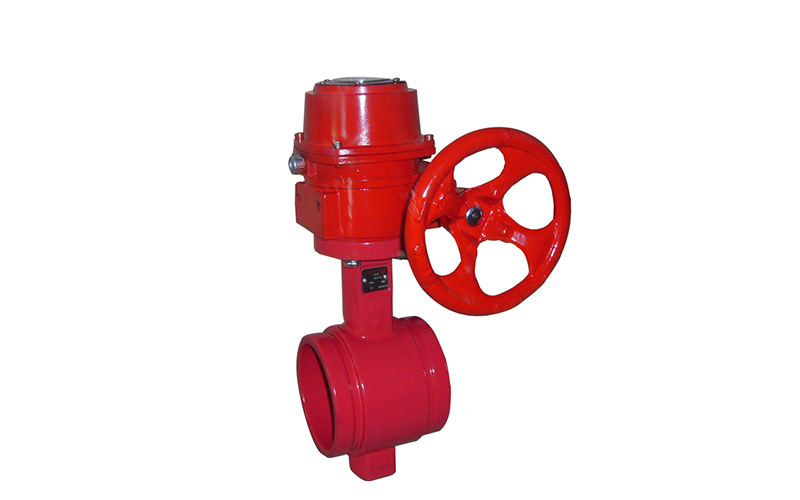

Motorized Control Grooved Butterfly Hydraulic Control Valve

Motorized Control Grooved Butterfly Hydraulic Control Valve

Motorized Control Grooved Butterfly Hydraulic Control Valve;Application:General,Media:Fresh water, sewage, air, vapor, oils, alkalis, salt, acids etc.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Butterfly
Pressure:up to 200psi
Power:Manual
Material:cast iron,ductile iron
Temperature of Media:-5℃~+120℃
Media:Fresh water, sewage, air, vapor, oils, alkalis, salt, acids etc
Port Size:DN50-DN300
Place of Origin:China (Mainland)
Model Number:D81X50
Brand Name:EO
Application:General
Certificate:ISO9001:2008 CE
Connection:BS/ANSI/AWWA C606
Top flange:ISO5211
Face to face:MSS SP-67 / AWWA C606
Body:Ductile Cast Iron
Stem:SS410
Disc:ductile iron encapsulated (NBR or EPDM)
Color:Blue
Payment:T/T
Sample:negotiable








Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
