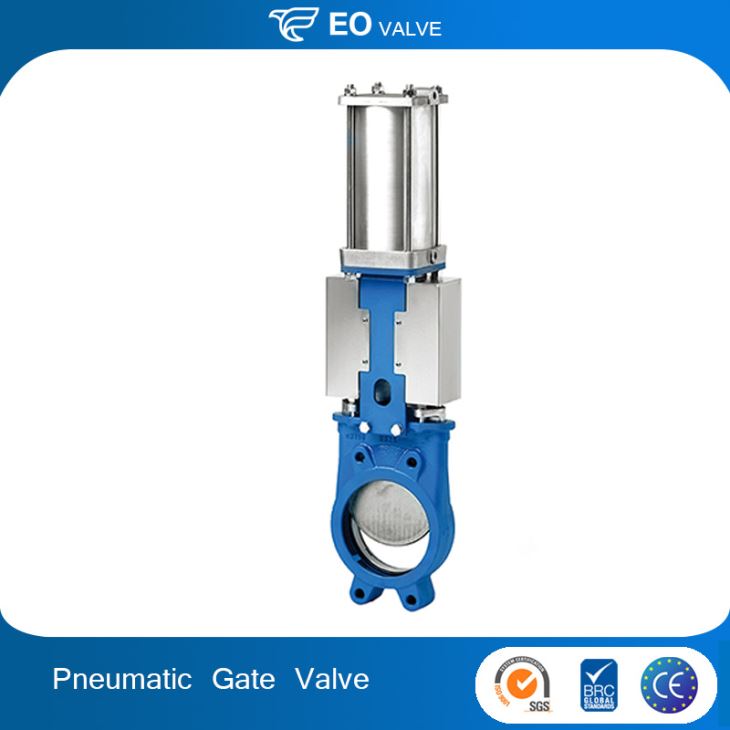

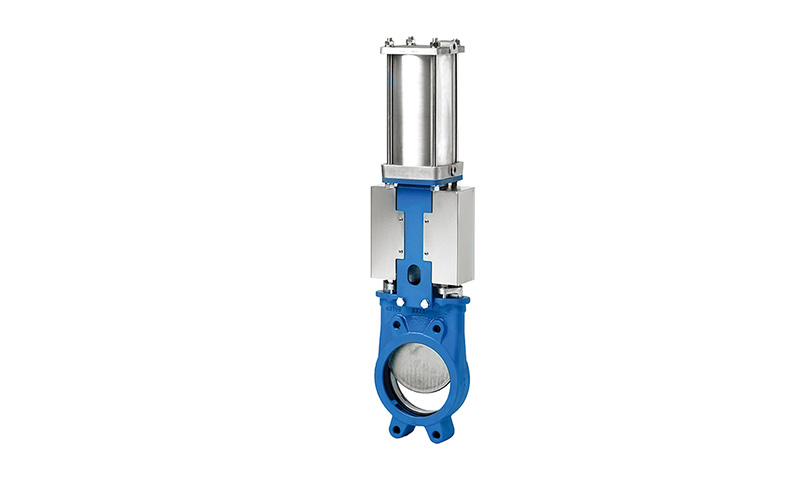

PN10 Pneumatic Operated Cast Iron EX Knife Gate Valve For Slurry
PN10 Pneumatic Operated Cast Iron EX Knife Gate Valve for Slurry;Pressure:Medium Pressure,Material:Casting,Temperature of Media:Normal Temperature.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Knife Gate Valve |
| Pressure: | Medium Pressure |
| Power: | Pneumatic |
| Material: | Casting |
| Temperature of Media: | Normal Temperature |
| Media: | Slurry |
| Port Size: | Standard |
| Place of Origin: | China (Mainland) |
| Model Number: | OEM |
| Brand Name: | EO |
| Application: | Mine, Paper, Sewage |

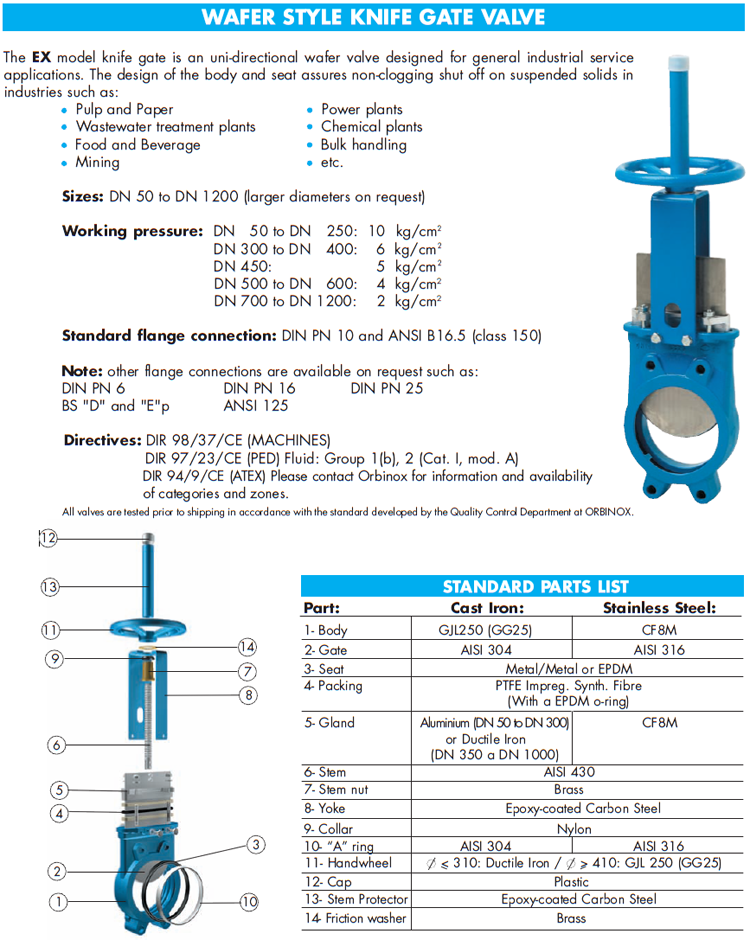

| SPECIFICATIONS FOR STANDARD KNIFE GATE VALVES | |
| Pressure rating and size: | PN10,PN16,ANSI Class125/150, JIS 10K |
| DN50 to DN2000 | |
| 2"~80" | |
| 50A~1800A | |
| Material: | Body : GG25, GGG40/50, WCB, CF8, CF8M |
| Gate : SS304, SS316, SS2205, Hastelloy C | |
Stem : Manual : SS420, F304, F316 Pneumatic : ANSI 1045+chrome plated | |
| Seat : EPDM,Metal,Viton,PTFE,NBR | |
| Support plate : A36+epoxy baked | |
| Special material on request. | |
| Operated type | Handwheel, Pneumatic,Gear, Hydraulic, Electric,Chain Wheel, Bare shaft,etc. |
| Structure: | Uni-directional & Bi-directional |
| Flange connection: | EN1092 PN10 & ANSI B16.5 (class 150) & JIS (10K) |
| Type | Full lug,Sami-lug, Flange Wafer |
| Maximum working pressures: | DN 50 to DN 250: 10 bar DN 300 to DN 450: 7 bar DN 500 to DN 600: 4 bar DN 700 to DN 900: 2 bar DN 1000 to DN 1200: 1 bar |
| Maximum working temperatures: | Nitril:80°C NBR:110°C EPDM:110°C PTFE:150°C |
