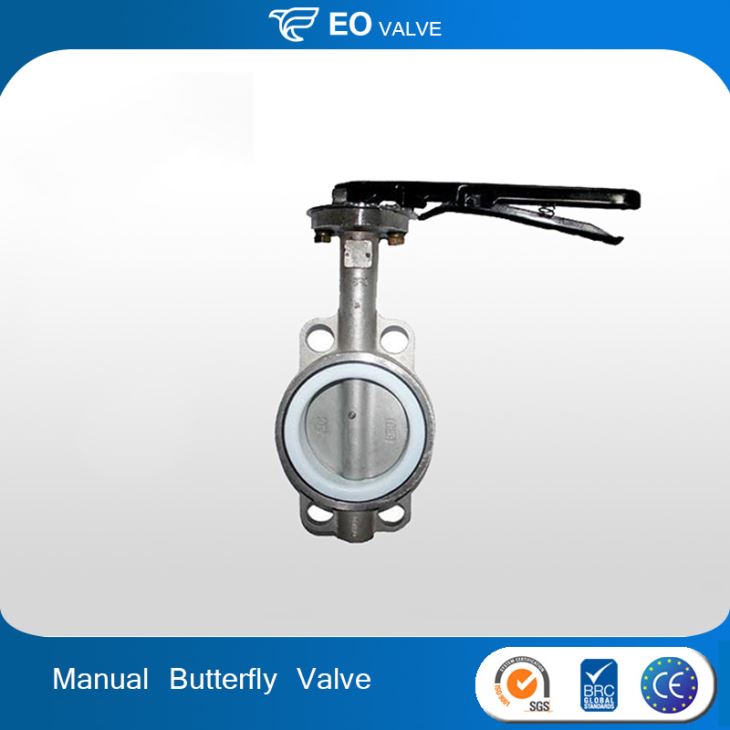

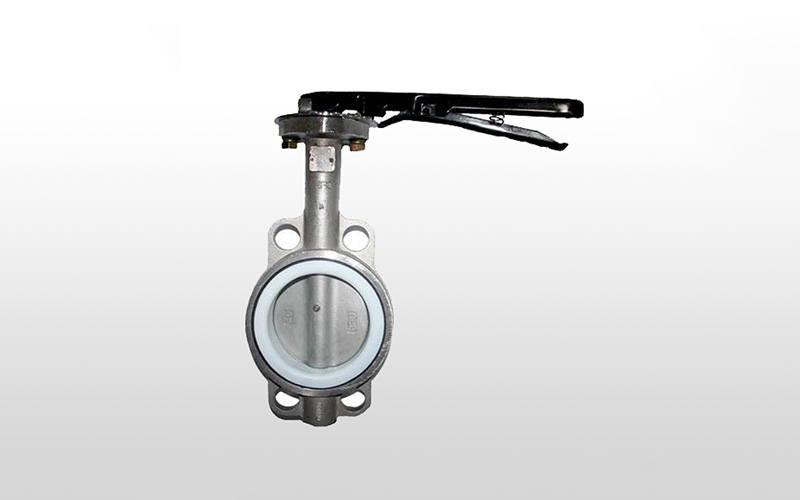

Cast Iron Dn200 Wafer Type Lever Operated Manual Butterfly Valve

Cast Iron Dn200 Wafer Type Lever Operated Manual Butterfly Valve

Cast iron dn200 Wafer Type Lever Operated Manual Butterfly Valve;Size: 2”-12”/ 50mm –300 mm,Design standard: API 609, BS EN 593.Face-to-Face dimension: API 609, DIN 3202 k1, ISO 5752, BS 5155, MSS SP-67.Flange Drilling: ANSI B 16.1,BS4504, DIN PN 10 / PN 16.Test: API 598.

Send Inquiry



Quick Details
Standard or Nonstandard:Standard
Structure:Butterfly
Pressure:Medium Pressure
Power:Manual
Material:Casting
Temperature of Media:Medium Temperature
Media:Water
Port Size:DN50-200mm
Place of Origin:China (Mainland)
Model Number:D71X-16
Brand Name:EO
Application:General

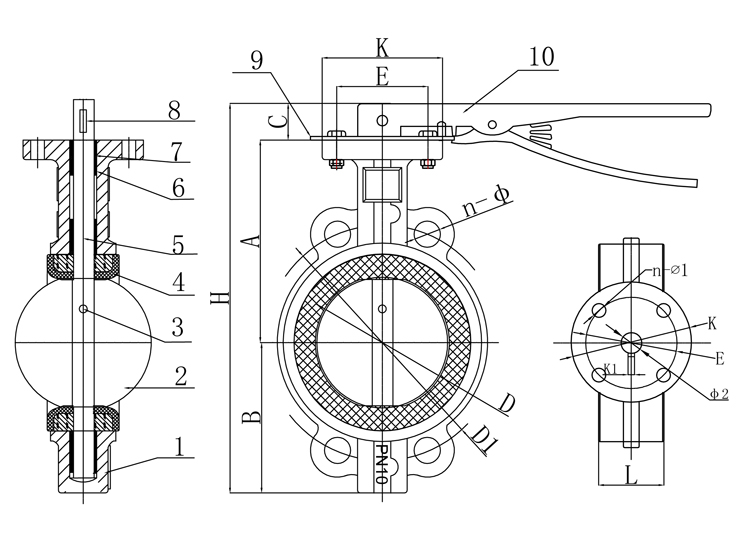

Specification:

Size: 2”-12”/ 50mm –300 mm

Design standard: API 609, BS EN 593.

Face-to-Face dimension: API 609, DIN 3202 k1, ISO 5752, BS 5155, MSS SP-67.

Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16.

Test: API 598.

Epoxy fusion coating.

Different lever operator.



Pressure & Temperature ratings:
Working Pressure10 bar / 16 bar
Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 80°C (NBR)

-10°C to 120°C (EPDM)

Suitable MediaWater, Oil and gas.
