Products Description :

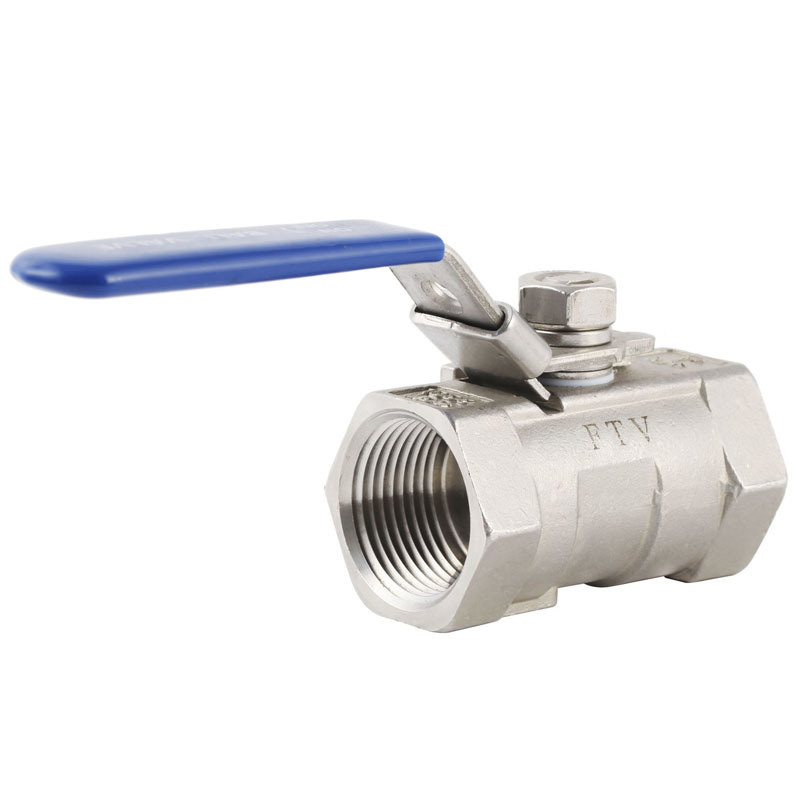

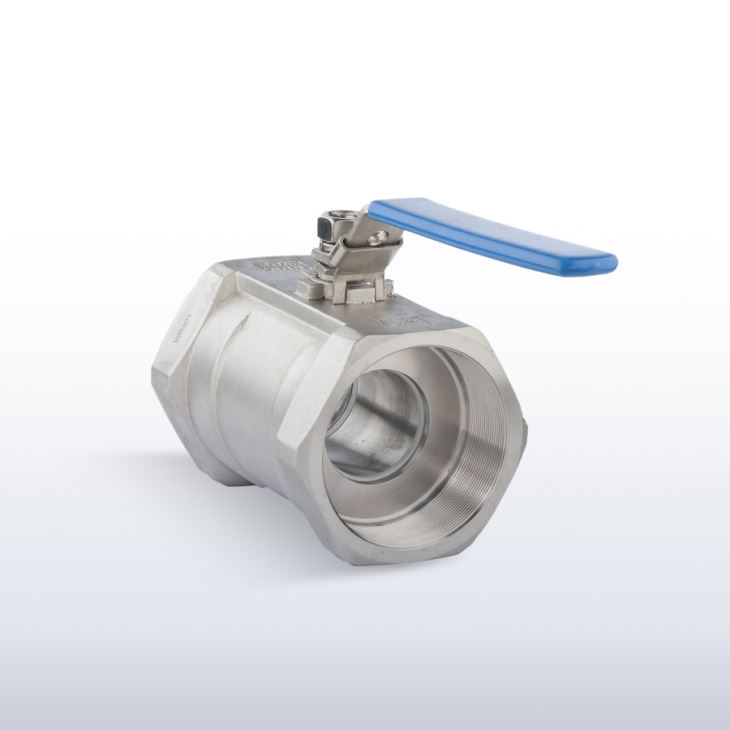

1 PC Reduced Bore Ball Valves are widely used in industrial applications because they are very versatile and easy to maintain and operate.

1 PC Reduced Bore Ball Valve Female thread is designed to reduce holes. The valve body is made of investment casting, and the valve has the function of preventing and blowing. The ball seat material is reinforced PTFE (R-PTFE) with excellent chemical resistance and improves cycle life. Locking devices are optional for safe operation. Applied to pipeline, industrial plant, food industry, process equipment and Department of Justice industrial plant isolation application.

1 PC Reduced Bore Ball Valve features:

1. Investment Castings for body and cap

2. Internal Entry Blow-Out Proof Stem

3. Pressure Rating: 1000PSI (PN63)

4. Thread End: ANSI B2.1, BS21, ISO7/1

5. Working Temperature: -25℃ ~ +180℃

6. Material: CF8M, CF8, CF3M, WCB

7. Inspection Testing: API 598, EN 12266

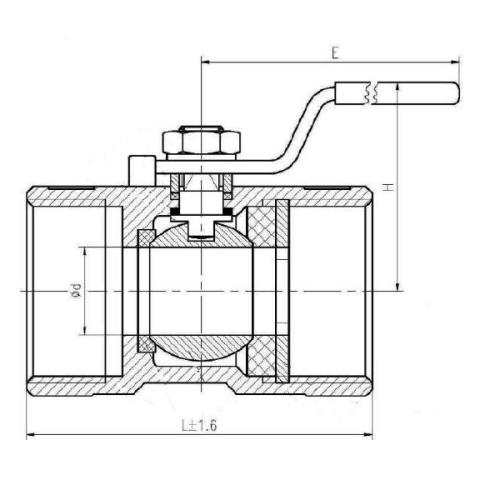

1 PC Reduced Bore Ball Valve Material List




ITEM

PARTS NAME

MATERIAL

STAINLESS STEEL

CARBON STEEL

1

Body

A351-CF8M

A216-WCB

2

Seat Retainer

A351-CF8M

A216-WCB

3&4

Seat

PTFE+15%G.F.

PTFE+15%G.F.

5

Ball

A351-CF8M / SUS 316

A351-CF8 / SUS 304

6

Stem

SUS 316

SUS 304

7

Gasket

PTFE+15%G.F.

PTFE+15%G.F.

8

Thin Gasket

PTFE+15%G.F.

PTFE+15%G.F.

9

Flat Washer

420J1

420J1

10

Belleville Spring Washer

420J1

420J1

11

Handle

SUS 304

SUS 304

12

Prevent Loose Nut

SUS 304

SUS 304

13

Plastic Coating

VINYL

VINYL

14

Lever Spring Washer

SUS 304

SUS 304



PACKAGING & DELIVERY :

Packaging details :   electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details   :   4-5 weeks after receipt of down payment by T/T

Payment           T/T, L/C, Western Union and PayPal
