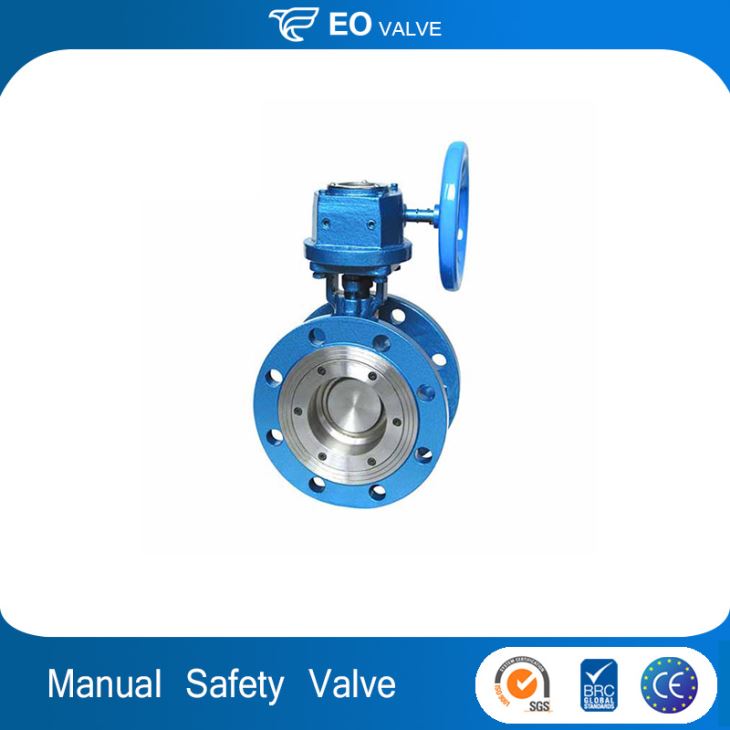

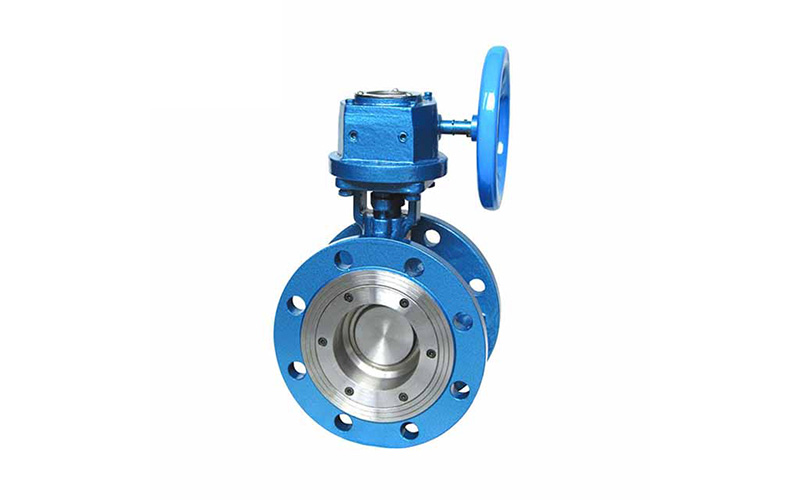

Flange Type Manual Safety Control With Factory Price
Flange Type Manual Safety Control With Factory price;Pressure:Medium Pressure,Material:Casting,Media:Water,Place of Origin:China (Mainland).
Quick Details | |
Standard or Nonstandard: | Standard |
Structure: | Butterfly |
Pressure: | Medium Pressure |
Power: | worm gear |
Material: | Casting |
Temperature of Media: | Medium Temperature |
Media: | Water |
Port Size: | DN40-DN3000 |
Place of Origin: | China (Mainland) |
Model Number: | PQD341 |
Brand Name: | EO |
Application: | General |
Size: | Customized Size |
Packing: | Standard export package |
Channel: | Straight Through Type |
Handle color: | red,blue,black, or upon your requirment |
Original Country: | China Supplier |
Working Pressure: | 0.25MPa-4.0MPa |
Body Materia: | Ductile Iron, carbon steel |
Valve Type: | Pneumatic |
Main series of products as below:
1, butterfly valve
2, ball valve
3, check valve
4, gate valve
5,Air Evacuation Valve
6, Expansion valve
Products specifications in details:
1) Fire protection antistatic design
2) Stem explosion proof device
3) Pressure balance holes designed on the ball valve
4) Double stem packing and counter pressure butterfly shrapnel device
Production Process
1. With large-scale CNC machine processing equipment, strict control in technical parameters and all aspects of the standard. In line with national standards.
2. Epoxy primer to resist rust and oxidation. Spraying in order to international standards with other paint multi-layer process, the appearance is more solid.
3. Corrosion-resistant, high-temperature rubber soft seal, to avoid the aging and corrosion of ordinary rubber. Flange expands the expansion of the butterfly valve, so that the material is more secure and strong.
4. The material of valve shaft is hard stainless steel 2r, makes the connection more smooth and natural. The seat material is stainless steel 304, in line with international industry standards.
5. Quick response to customer’s requirements in material.
6. Flange thickness, structural length, grade pressure are strictly in line with industrial commonly used standards and meticulous measurement.
7. With vertical lathe and horizontal bore double welding ensures strongly welding, reducing the dislocation risk between valve shaft and valve body.
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
