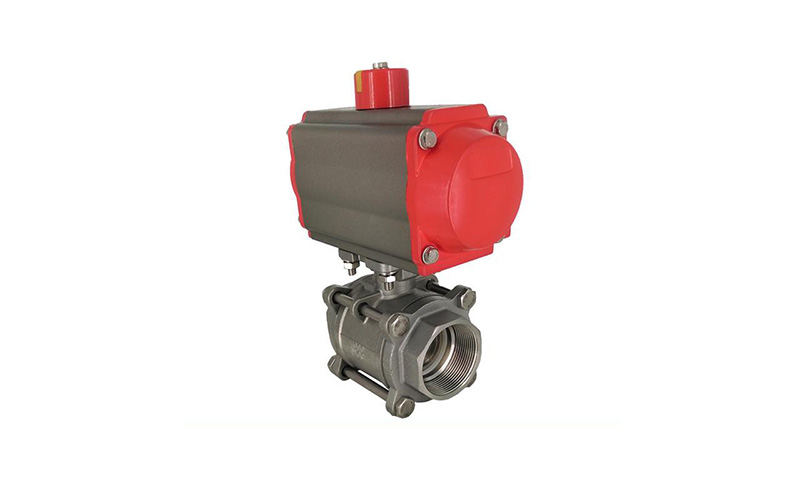

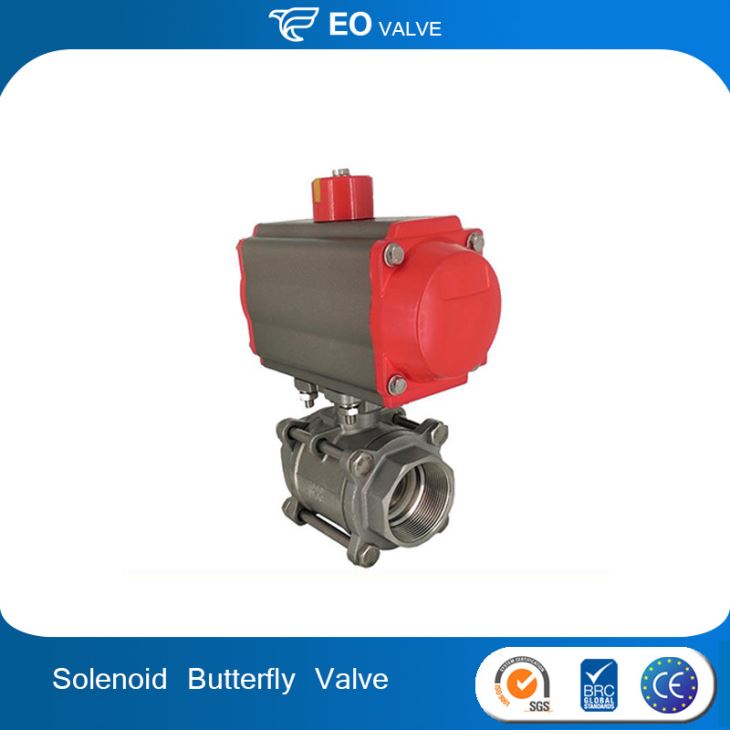

Butterfly Actuator Heat Resistant Ball Valve
Butterfly Actuator Heat Resistant Ball Valve;Temperature of Media:Medium Temperature,Model Number:Q611F,Place of Origin:China (Mainland)
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | direct acting |
| Pressure: | Medium Pressure |
| Power: | Solenoid |
| Material: | Stainless Steel |
| Temperature of Media: | Medium Temperature |
| Media: | Gas |
| Port Size: | Standard |
| Place of Origin: | China (Mainland) |
| Model Number: | Q611F |
| Brand Name: | EO |
| Application: | General |
| Product name: | Q611F-16P-DN50 |
| Body material: | stainless steel |
| Type: | normal close |
| Connection: | Female Thread |
| max pressure: | 1.6mpa |
| pressure difference: | 0~1.6MPA |
| protection degree: | ip65 |
| coil: | round coil |
| sealing material: | PDFE |
| operation temp: | -20~180℃ |
Technical specification:
(1)pressure range
max working pressure:10bar
Double action:2.5bar~8bar
single action:2.5bar~8bar
(2)temperature range
standard:-20~-80℃
option：-35~80/-20~-150
(3)rotate angle:90±5%
(4)lubrication:all the kinetic compents are contacts with lubricants,make it have long service life.
(5)life time:one million time
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
