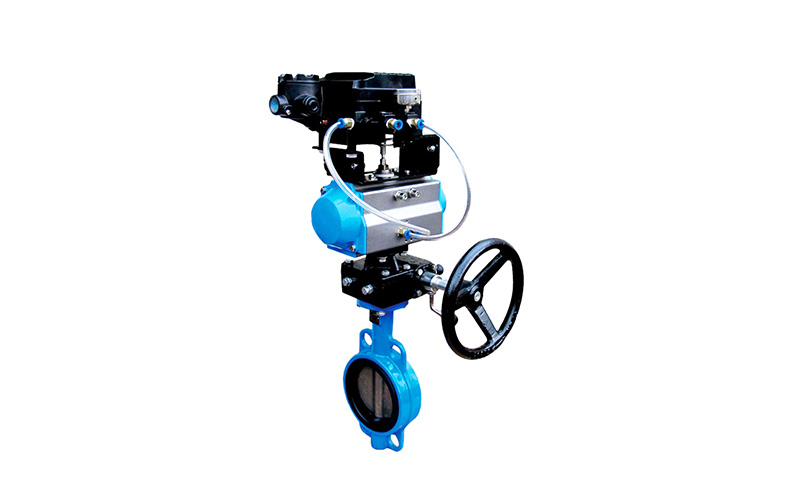

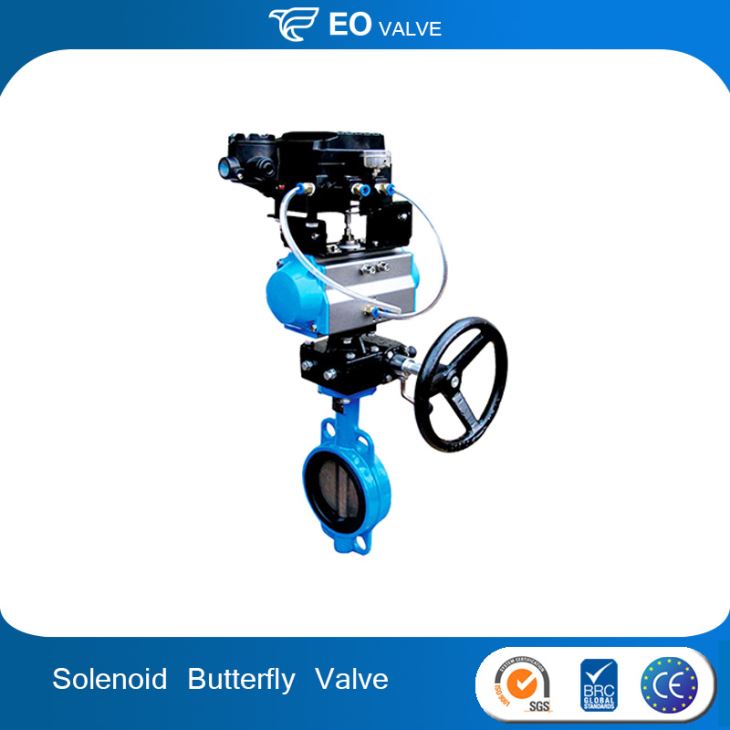

Cast Iron Pneumatic Actuator Butterfly Valve With Handwheel

Cast Iron Pneumatic Actuator Butterfly Valve With Handwheel

Cast Iron Pneumatic Actuator Butterfly Valve With Handwheel;Material:Rubber,Temperature of Media:Medium Temperature,Model Number:pneumatic actuator butterfly valve,Connection:Flange Ends.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Butterfly
Pressure:Medium Pressure
Power:Pneumatic
Material:Rubber
Temperature of Media:Medium Temperature
Media:Base
Port Size:DN50-DN600
Place of Origin:China (Mainland)
Model Number:pneumatic actuator butterfly valve
Brand Name:EO
Application:General
Product name:Air Compressor Unloader Valve
Body material:316
Type:2-way
Certificate:ISO9001:2008 CE
Connection:Flange Ends
Color:Customer Require
Standard:ANSI BS DIN JIS
Medium:Water Oil Gas
Size:DN40-1200




Technical Parameters:

Size

DN32-DN1200DN32-DN1200
Working pressure16Bar10Bar
Shell24Bar15Bar
Seal(Air)6Bar6Bar
Operating Temperature-40℃~+160℃
Operating Environment

Ballast and bilge system          Chemical processing

Desalination plants   Drilling rigs    Drinking water

Dry powder     Food and beverage     Gas plants

HAVC  Mining industry  Paper industry    Sand handling     Seawater    Sugar industry

Thermo technical water treatment   Waste water


Driving  methodPneumatic


Executive Standard:

Design StandardEN 593 , MSS SP67   API 609  BS5155
Inspection & TestAPI 598  ISO 5208  EN 12266
End Standard

ANSI B16.1 CL. 125LB & B16.5 CL. 150LB

AS 2129 Table D & E   BS 10 Table D & E

DIN 2501 PN6, PN10 & PN16

EN 1092 PN6, PN10 & PN16

ISO 2531 PN6, PN10 & PN16

ISO 7005 PN6, PN10 & PN16

KS B 1511 / JIS B 2210 5K & 10K

MSS SP44 CL. 150LB  AWWA C207

SABS 1123 Table 1000/3 & Table 1600/3

Face to FaceISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202
Top FlangeISO 5211




Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
