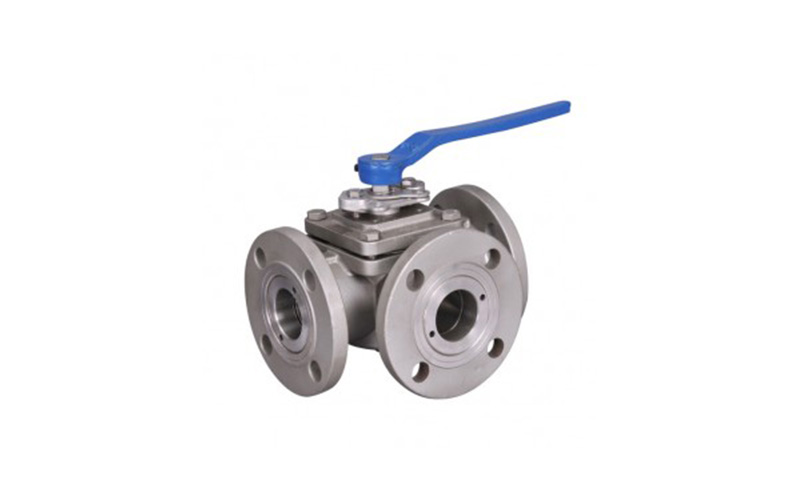

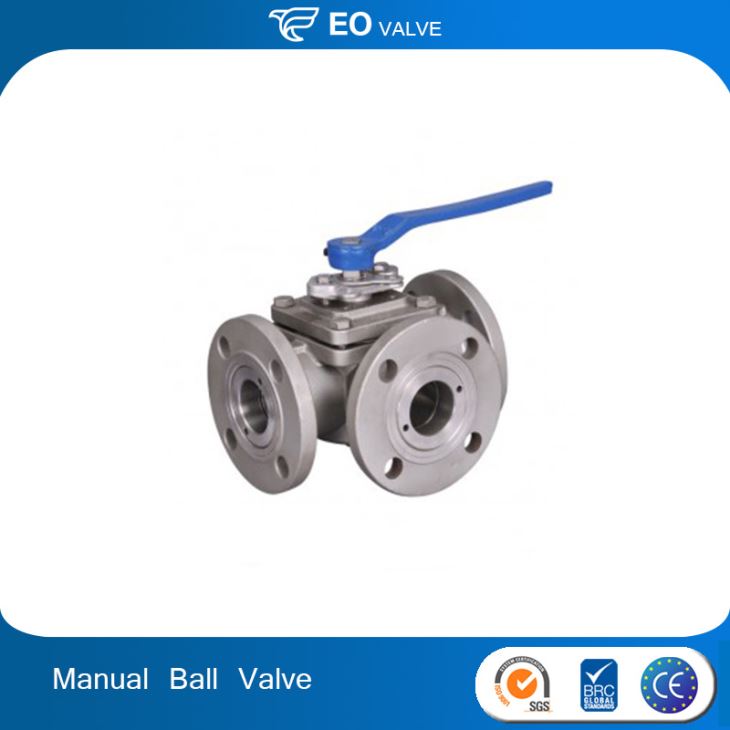

Flanged ANSI 150 Stainless Steel Ball Valve
Flanged ANSI 150 Stainless Steel Ball Valve;Standard or Nonstandard:Standard,Power:Manual,Temperature of Media:High Temperature.
Quick Details | |
Standard or Nonstandard: | Standard |
Structure: | Ball |
Pressure: | 150lb |
Power: | Manual |
Material: | Stainless Steel |
Temperature of Media: | High Temperature |
Media: | compressed air, fuel and lightly corrosive |
Port Size: | 1/2"~24" |
Place of Origin: | China (Mainland) |
Model Number: | Q44F-150lb |
Brand Name: | EO |
Application: | industrial and chemical applications |
Product name: | Full Bore Flanged ANSI 150 Stainless Steel Ball Valve 3 Way Manual |
Body material: | Stainless Steel 316 |
Connection: | ANSI CLASS 150/300 |
Certificate: | API |
Standard: | ANSI B16.1 |
Type: | FULL BORE |
Color: | Customer's Request |
Medium: | Corrosive Fluid |
Size: | 1/4''--24'' |
OEM: | Provide OEM Services |
Key features:
Available in ANSI 150, L or T Port, sizes: 1" to 4".
Temperature range: -10 °C to 120°C.
Pressure rating: Class 150.
Insulated grip, lockable lever handle.
Movement: 90° turn.
Ports: L or T port.
