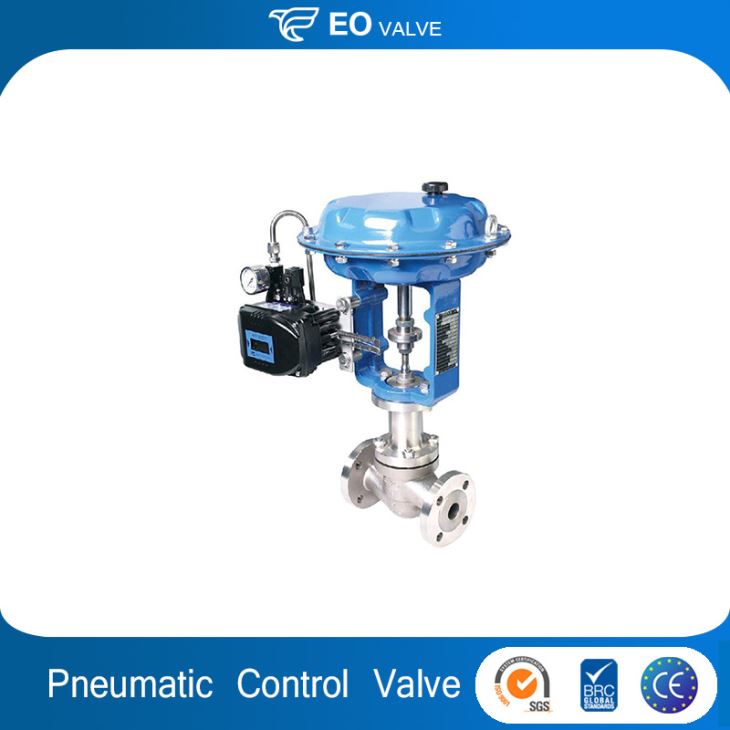

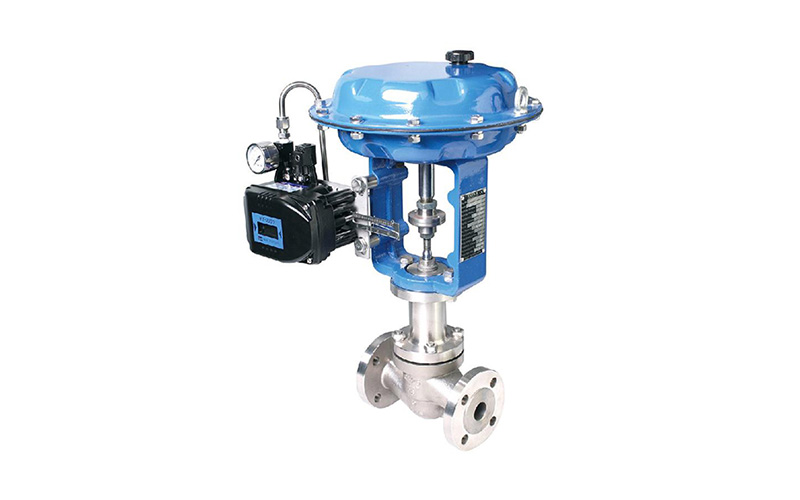

SS Pneumatic Steam Control Valve

SS Pneumatic Steam Control Valve

SS Pneumatic Steam Control Valve;Structure:Control,Material:casting,stainless,WCB,CF8,Temperature of Media:Medium Temperature,Model Number:BZHP,Application:General.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Control
Pressure:Medium Pressure
Power:Pneumatic
Material:casting,stainless,WCB,CF8
Temperature of Media:Medium Temperature
Media:water,gas,steam,oil,acid,etc
Port Size:3/4"-12" (DN20-300)
Place of Origin:China (Mainland)
Model Number:BZHP
Brand Name:EO
Application:General
Product name:SS pneumatic steam control valve
Connection type:Flange, Screw, Welded,thread
Actuator:Spring return(Single action)
Action control:Air to open, Air to close
Air supply:140-400KPa
Spring Range:20-100MPa
Effectiv area:350-1400 cm2
Accessoires:Positioner, solenoid valve, air filter, etc
Standard:ANSI, DIN, BS, JIS, GB ect.
Certificate:ISO, CE



Parameters of Control Valve



Size:  3/4"-12" (DN20-300)

Body Material: Cast iron, Cast steel, Stainless steel

Pressure Grade: 1.6Mpa, 4.0Mpa, 6.4Mpa

Connection: Flange, Screw, Welded

Temperature Range: Normal temperature: -20--+230; Thermal slug type: -60--+450

Type: Single seated, Double seated, Sleeve, Cage Guided, Three Way, etc

Standard:  ANSI, DIN, BS, JIS, GB



Parameters of Pneumatic Actuator



Type: Diaphragm type

Effective Area: 350-140cm2

Spring Range:  20-100MPa

Air Supply:  140-400KPa

Ambient Temperature:  -30~+70℃
