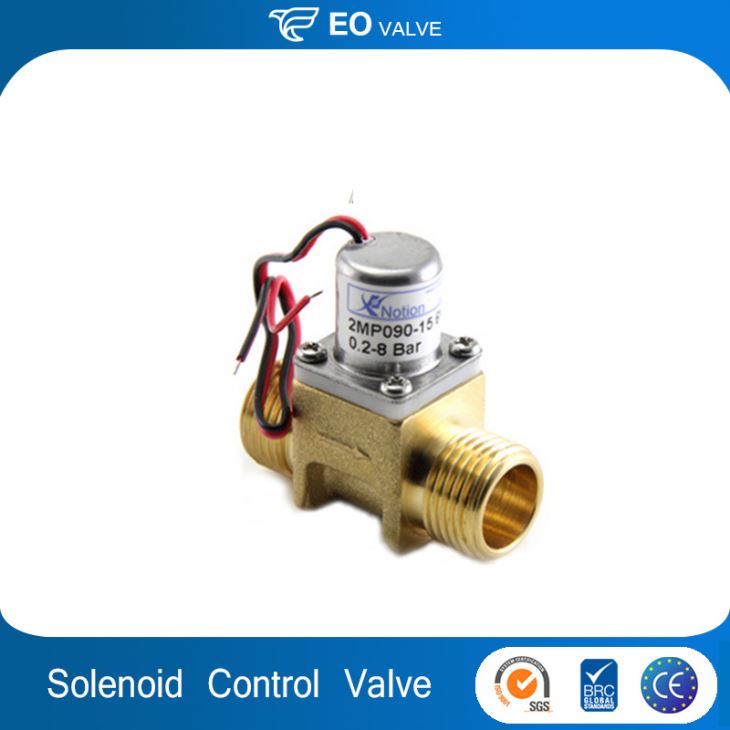

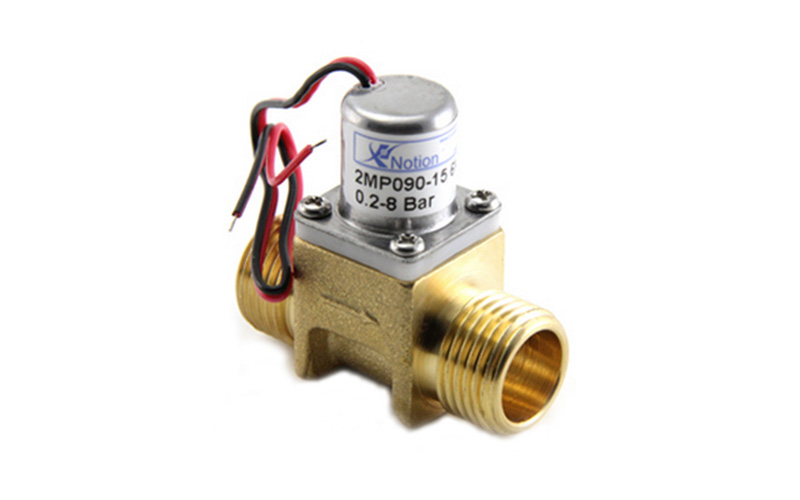

Battery Control Solenoid Latching Valve

Battery Control Solenoid Latching Valve

Battery Control Solenoid Latching Valve;Structure:Diaphragm,Power:Solenoid,Temperature of Media:Medium Temperature,Media:Gas,Model Number:2MP090-15B,Brand Name:EO.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Diaphragm
Pressure:Low Pressure
Power:Solenoid
Material:Brass
Temperature of Media:Medium Temperature
Media:Gas
Port Size:Standard
Place of Origin:China (Mainland)
Model Number:2MP090-15B
Brand Name:EO
Application:General, Industrial Usage, Water Industrial Usage, Household Usage
Certificate:CE 1674
Type:Pilot Operated
Valve Structure:Pilot Piston Structure
Usage:Flow Control
Regular Voltage:3V, 4.5V, 6V, 12V DC
Power Supply:DC Solenoid Valve
Standard:DIN




Bi-Stable Solenoid Valve is also named Latching Valve and Pulse Valve.

It includes a set of permanent magnets that allow the solenoid to offer hold force even after the power is off.

The term Bi-Stable is given to this type of solenoid because it has two stable positions.

The first when the solenoid de-energized and plunger is fully extended and second when the solenoid is de-energized and the plunger is held in position by the permanent magnets.

The electromechanical force moves the solenoids from one stable position to the other depending of the polarity of power applied.

A spring can be used to move the plunger out to the extended position as the charge applied only neutralises the permanent magnet force.

Solenoids can only induced electromechanical force in one direction (pulling the plunger towards the endstop).

When the polarity is reversed, it has no effect on the plunger except to neutralise the magnets.





Feature



1. No self heating.

2. Continues to hold even after the power is disconnected.

3. Can operate by a pulse signal.

4. A charge / discharge of capacitor will be enough to set and reset.
