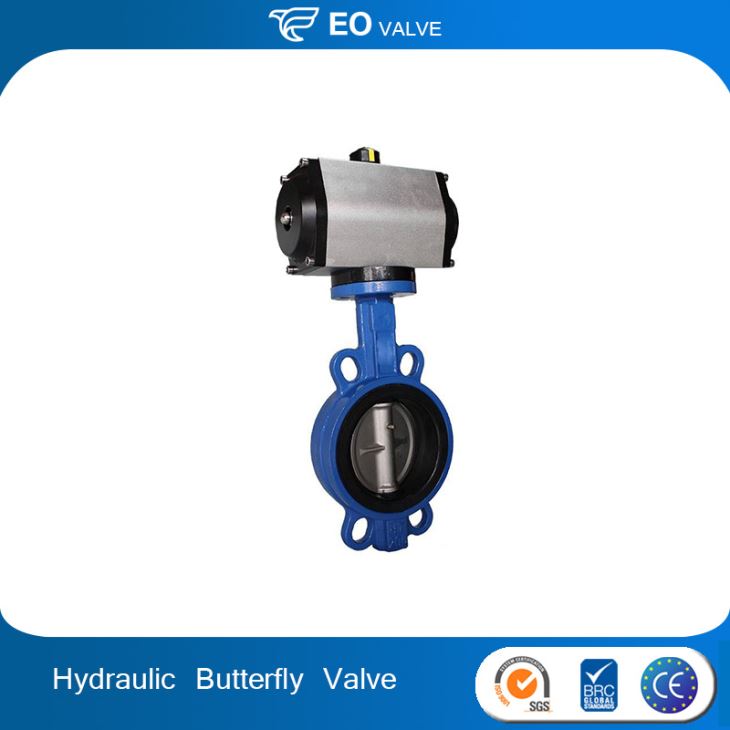

Lug Style Hydraulic Keystone Worm Gear Butterfly Valve

Lug Style Hydraulic Keystone Worm Gear Butterfly Valve

Simple, compact structure, quick 90 degree on-off operation.Disc has two-way bearing, perfect seal, without leakage under the pressure test.Flow curve tending to straight-line. Excellent regulation performance.5Various kinds of materials, applicable to different medium.

Send Inquiry



Quick Details
Standard or Nonstandard:Standard
Structure:Butterfly
Pressure:125LB-150LB
Power:Hydraulic/Pneumatic
Material:CF8, CF8M, CF3, CF3M, GGG500-7 , GG25 , WCB SS304
Temperature of Media:Normal Temperature
Media:Oil, Water, Gas
Port Size:1/8" 1/4" 3/8" 1/2"
Place of Origin:China (Mainland)
Model Number:OEM
Brand Name:EO
Application:General
Characteristic:Cast Steel Butterfly Valve
Color:Blue/Silver or according to customers' requirments
Connection:Female Thread
Inspect & Test:API 598
Working pressure:10Bar/16Bar/25Bar, 150LB/30
Design Standard:BS5155, API 609, EN 593
Operation type:Lever, gear box
Disc Sealing:Multi Layer SS + Graphite or PTF
Industry:Power, Chemical, Petroleum, Mari





 Characteristics of Product:

1.Small in size and light in weight and maintaince. It can be mounted wherever needed.

2.Simple, compact structure, quick 90 degree on-off operation.

3.Disc has two-way bearing, perfect seal, without leakage under the pressure test.

4.Flow curve tending to straight-line. Excellent regulation performance.

5Various kinds of materials, applicable to different medium.

6.Strong wash and brush resistance and can fit to bad working condition.

7.Center plate structure, small torque of open and close.

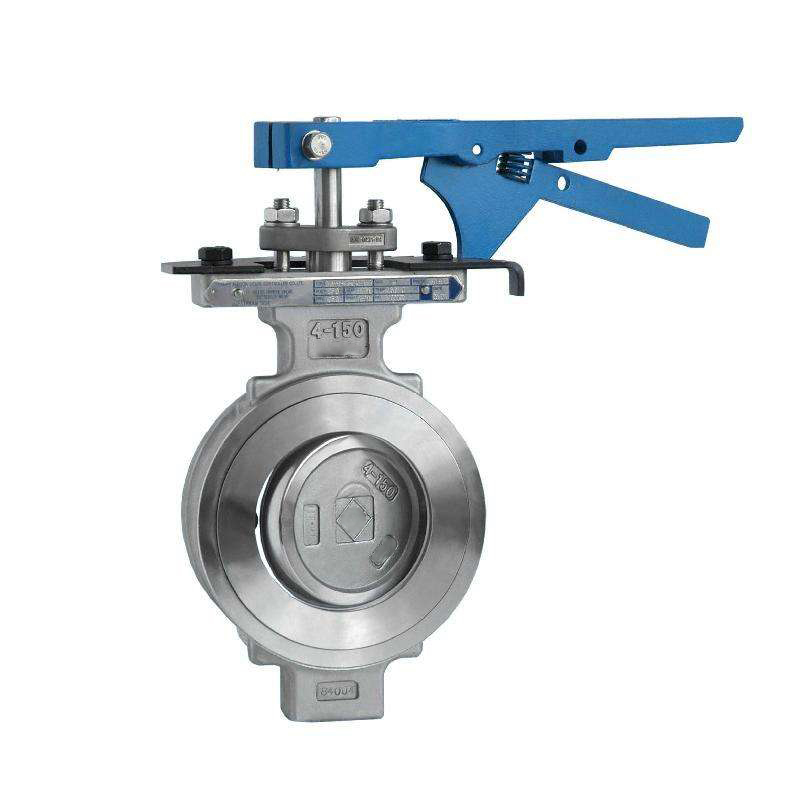

Stainless Steel Butterfly Valve LUG

MATERIALS

Body: Stainless Steel 316L

Disc: SS304

Stem: SS304

Seat: PTFE



Stainless Steel Butterfly Valve WAFER

MATERIALS

Body: Stainless Steel 304

Disc: SS304

Stem: SS304

Seat: PTFE

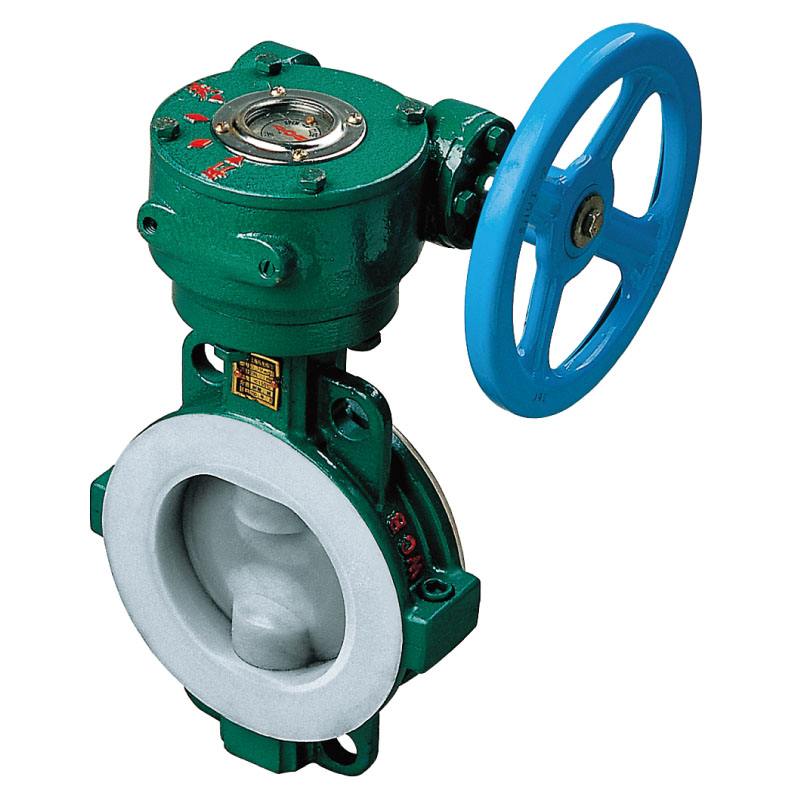

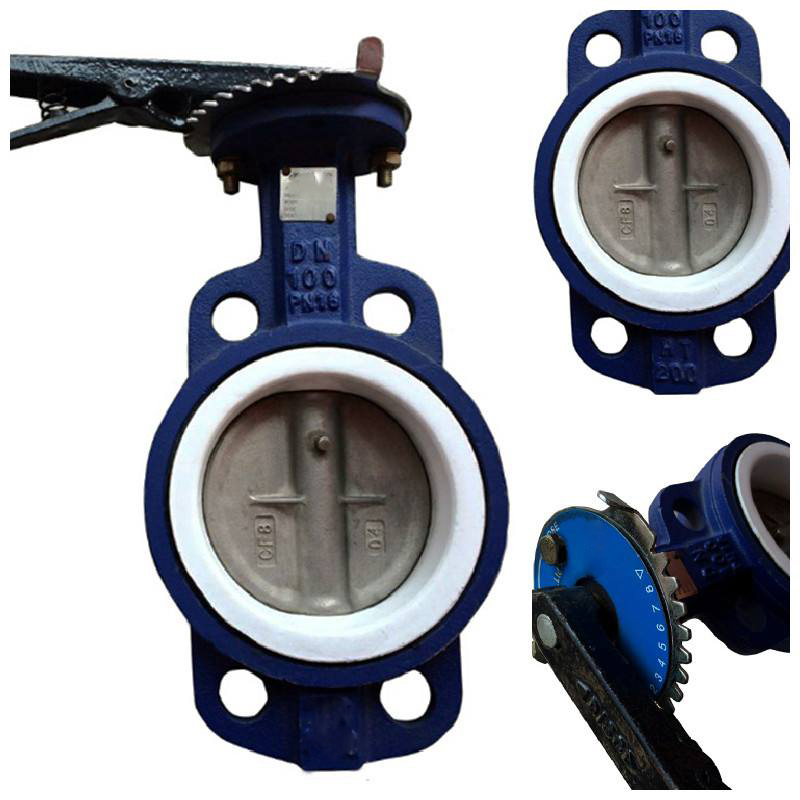

Applications of PTFE lined Butterfly Valves

1. Chemical, Beverage,Brewing, Pharmacy, Food Processing.

2. Petroleum refining, Oilfield, Water and Waste Water Treatment.Ultrapure Water.

3. Mining, Nuclear Power, Irrigation and other industries.

Our Advantage

1. Small fluid resistance

2. The torque for opening and closing is small, so it is easy to open and close.

3. The medium flowing direction is not restricted, and it doesn't disturb flowing and reduce the pressure of pipeline.

4. Short length structure

5. Good sealing performance

6. Simple shape, good casting process, widely used





Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
