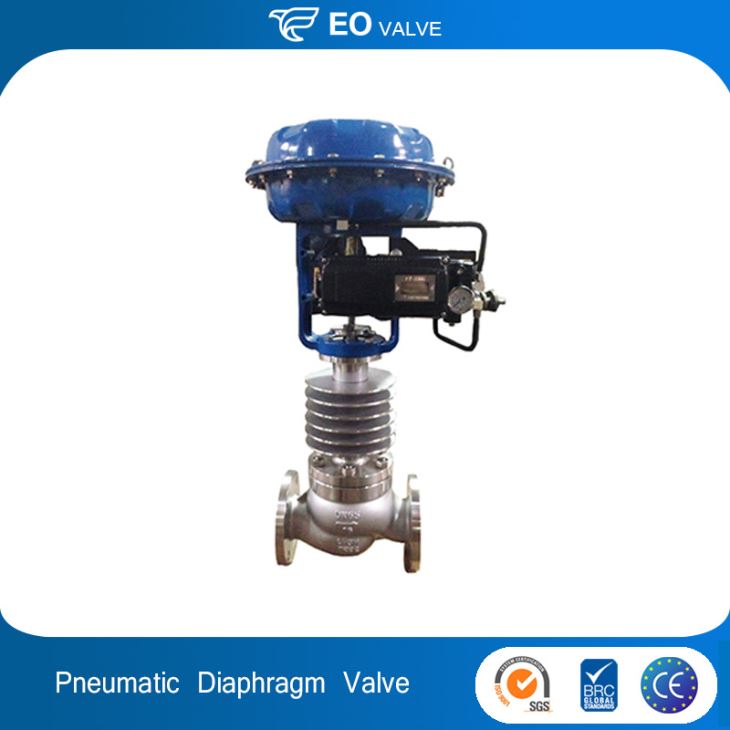

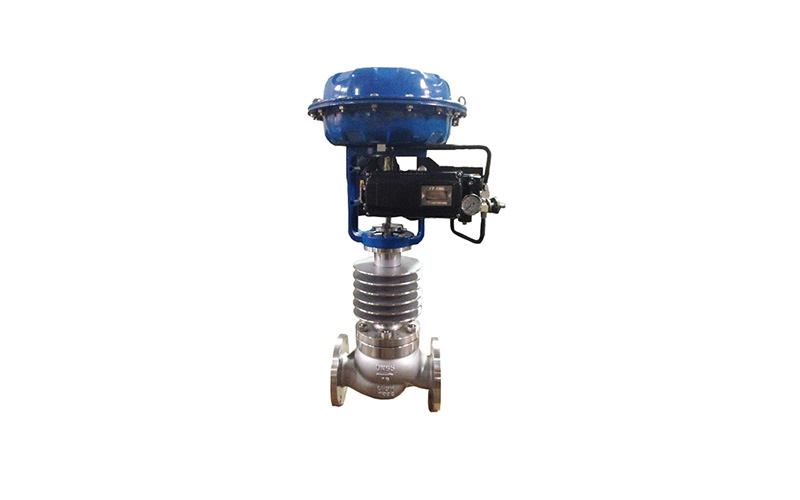

Directional Flow Pneumatic Diaphragm Control Valve
Directional Flow Pneumatic Diaphragm Control Valve;Type:straight single-seat (sleeve, double-seat),Nominal Pressure:PN1.6 4.0 6.4MPa,Diaphragm:NBR with reinforced dacron.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Control |
| Pressure: | Medium Pressure |
| Power: | Pneumatic |
| Material: | Stainless Steel, carbon steel , SS304, SS316 |
| Temperature of Media: | Normal Temperature |
| Media: | Gas |
| Port Size: | Standard |
| Place of Origin: | China (Mainland) |
| Model Number: | JCZJHP |
| Brand Name: | EO |
| Application: | General |
| Type: | straight single-seat (sleeve, double-seat) |
| Nominal Diameter: | DN20~300 |
| Nominal Pressure: | PN1.6 4.0 6.4MPa |
| Connection: | flange acc.to GB,JB,HG; G3/4 acc.to screw of G3/4 |
| Diaphragm: | NBR with reinforced dacron |
| Packing: | PTFE,flexible graphite |
| Plug: | upper guided single-seat (sleeve) |
| Gasket: | SS & flexible graphite spirot |
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
