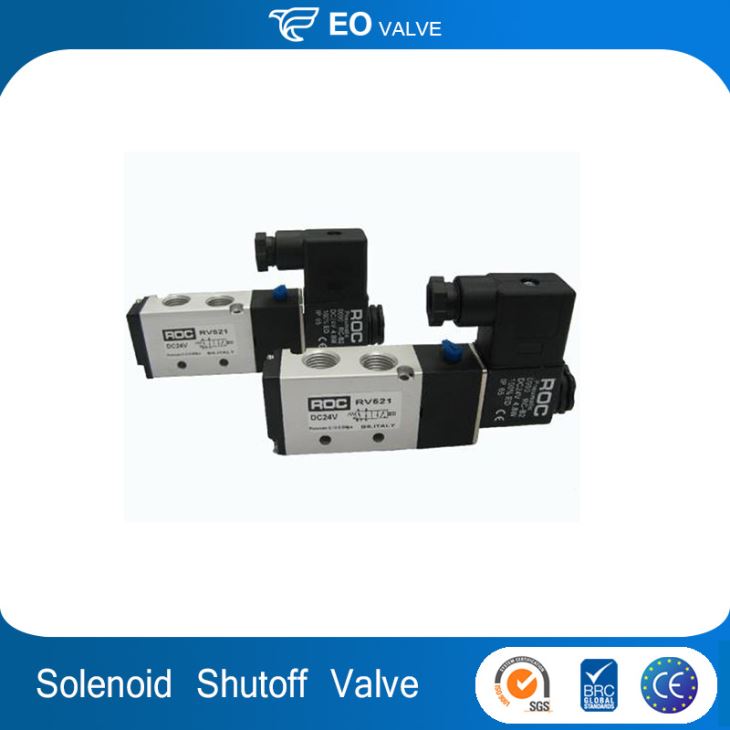

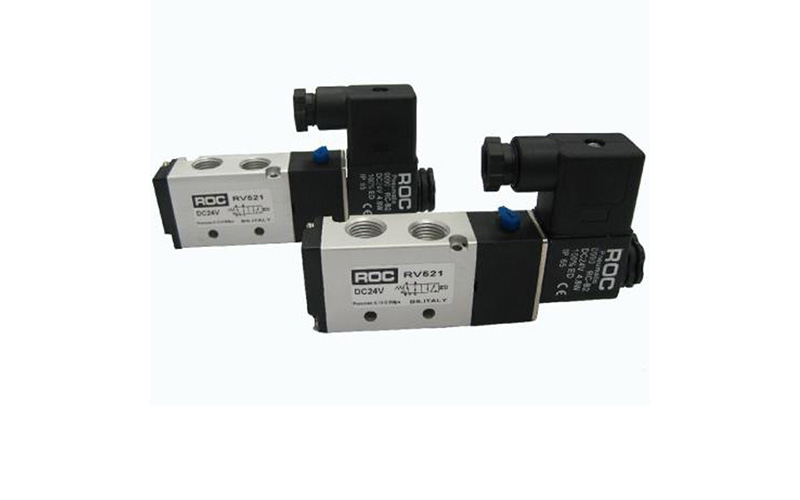

Brass Gas Shutoff Solenoid Valve
Brass Gas Shutoff Solenoid Valve;Structure:Shutoff,Material:Brass,Temperature of Media:Normal Temperature,Place of Origin:china.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Shutoff |
| Pressure: | Low Pressure |
| Power: | Solenoid |
| Material: | Brass |
| Temperature of Media: | Normal Temperature |
| Media: | Gas |
| Port Size: | 1/8" 1/4" 3/8" 1/2" |
| Place of Origin: | china |
| Model Number: | VD01 |
 Brand Name: | EO |
| Application: | General |
| Origin: | German |
| Type: | Solenoid Valve |
| Life: | min. 20 mio. switchings |
| Ambient Tem: | -40 bis +70°C |
| Medium Tem: | -40 bis +150°C |
| Body material: | Brass, stainless steel, polytetra |
Product Description
1. Solenoid valve VA50 series:
2/2-way Solenoid and pipe welded joints D 1/4 "and 3/8"
Media: R22, R134A, R404A, R407C, R410A, R507
Working pressure: 0 - 30 bar
Life: min. 20 mio. Switchings
Ambient temperature: -40 bis + 70 ° C
Medium temperature: -40 bis + 150 ° C
Material: brass, stainless steel, polytetrafluoroethylene, EPDM
Magnetic capacity: 6 Watt
Coil connector: DIN 43650 A PG9
Coil protection: IP65 (with connector)
2. Solenoid valve VB50 series
2/2-way solenoid valve with pipe D 1/4 welded joint "- 7/8"
Media: R22, R134A, R404A, R407C, R410A, R507
Working pressure: 0,05 - 30 bar
Life: min. 20 mio. Switchings
Ambient temperature: -40 bis + 70 ° C
Medium temperature: -40 bis + 150 ° C
Material: brass, stainless steel, polytetrafluoroethylene, EPDM
Magnetic capacity: 6 Watt
Coil connector: DIN 43650 A PG9
Coil protection: IP65 (with connector)
3. Solenoid valve VC50 series
2/2-way solenoid valve with welded joint pipe ð5 / 8 "- 11/8"
Media: R22, R134A, R404A, R407C, R410A, R507
Working pressure: 0.1 - 30 bar
Life: min. 20 mio. Switchings
Ambient temperature: -40 bis + 70 ° C
Medium temperature: -40 bis + 150 ° C
Material: brass, stainless steel, polytetrafluoroethylene, EPDM
Magnetic capacity: 10 Watt
Coil connector: DIN 43650 A PG9
Coil protection: IP65 (with connector)
4. Solenoid valve VD01 series
2/2-way solenoid valve with pipe D 11/8 welded joint "- 15/8"
Media: R22, R134A, R404A, R407C, R410A, R507
Working pressure: 0.2 to 30 bar
Life: min. 20 mio. Switchings
Ambient temperature: -40 bis + 70 ° C
Medium temperature: -40 bis + 150 ° C
Material: brass, stainless steel, polytetrafluoroethylene, EPDM
Magnetic capacity: 10 Watt
Coil connector: DIN 43650 A PG9
Coil protection: IP65 (with connector)
5. Solenoid valve VB10 series
2/2-way solenoid valve with pipe D 1/4 welded joint "- 7/8"
Media: R22, R134A, R404A, R407C, R410A, R507
Working pressure: 0.05 to 30 bar
Life: min. 20 mio. Switchings
Ambient temperature: -40 bis + 70 ° C
Medium temperature: -40 bis + 150 ° C
Material: brass, stainless steel, polytetrafluoroethylene, EPDM
Magnetic capacity: 6 Watt
Coil connector: DIN 43650 A PG9
Coil protection: IP65 (with connector)
Solenoid valve Model: VA50, VB50, VC50, VD01, VB10, VB20
