Fully Welded Gear Operated High Pressure Ball Valve

Fully Welded Gear Operated High Pressure Ball Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China gear operated high pressure full welded ball valve, high pressure ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. GEAR OPERATION HIGH... Products D...

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China gear operated high pressure full welded ball valve, high pressure ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. GEAR OPERATION HIGH...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China gear operated high pressure full welded ball valve, high pressure ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. GEAR OPERATION HIGH...

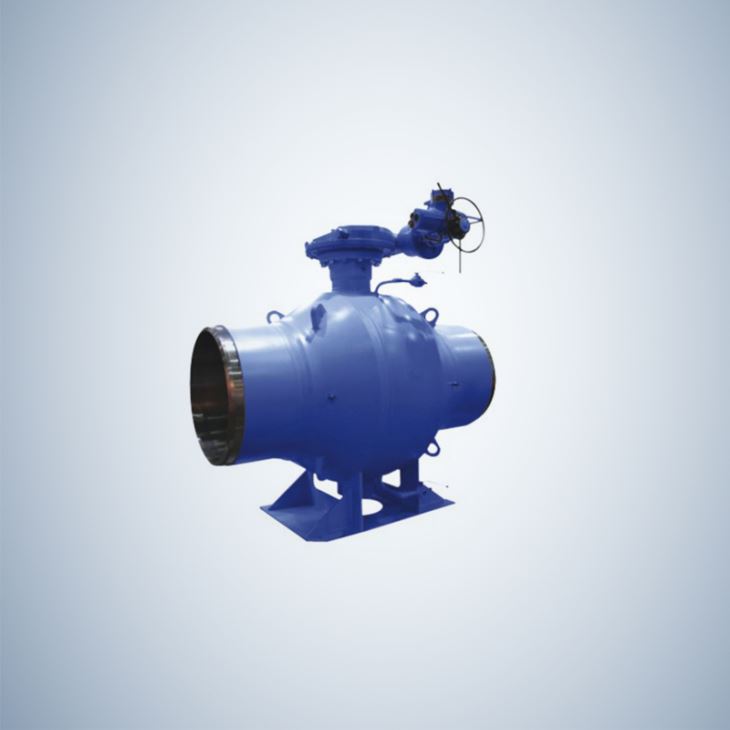

GEAR OPERATION HIGH TEMPERATURE FULL WELDED BALL VALVE

Product Specifications :

Product Range:
1. Size: from 2" ~ 48"
2. Pressure: from 150Lb ~ 2500Lb
3. Working temperature: from -50 Deg. C ~ 550 Deg.

4.Body Materials:Forged carbon steel, Forged Stainless Steel
5. Trim:A105+ENP, 13Cr, F304, F316
6. Operation:Lever, Gear, Electric, Pneumatic, Hydraulic

Applicable Standards :

Design & Manufacture according to : API 6D

Face to Face according to : ASME B16.10

Flange Dimensions according to : ASME B16.5

Pressure & Temperature according to : ASME B16.34

Test & Inspection according to : API 6D / API 598


Design Features :

Forged body and ball, welded body
Double block & bleed
Trunnion mounted ball, Blowout-proof stem
Emergency sealant injection
Cavity pressure self relief
Fire safe design to API 607/API 6FA
Anti-static to BS5351


Structure features:

Body structure: Full weld ball valve

Construction: Trunnion mounted ball

Bore:  Full bore

Connection: Raised face RF flange / Butt Welded

Seat: Renewable seat

Fire safe: API 607

Stem: Anti blowout

Electricity guide: c/w Anti-static device



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal


FAQ :

1. What is your difference from other competitors?

1). Scale: 82,000.00 square meters non-dust workshop

2). Condition: good after sale service

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

2. How do you control your quality?

1). The foundry is built to promise our raw material better before production.

2). Strict QC system is set up for the superior quality guarantee.
