Electrical Casting Pressure Seal Gate Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China electrical casting pressure seal gate valve, electrical gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO Valve...
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China electrical casting pressure seal gate valve, electrical gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China electrical casting pressure seal gate valve, electrical gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

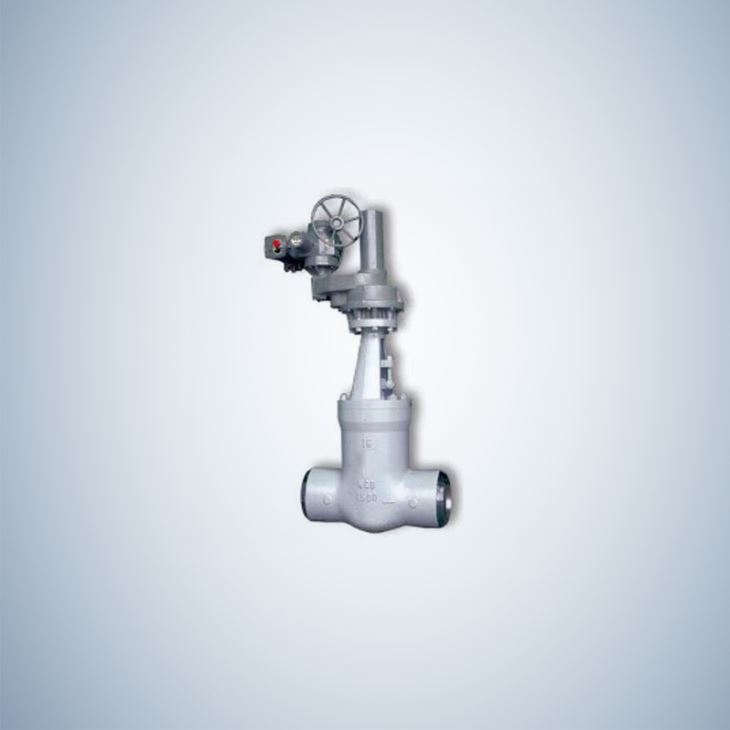

Electrical Butt Weld Ends Pressure Seal Bonnet Gate Valve.
Product Specifications :
Standards:
DESIGN AND MANUFACTURE | API 600 |
FACE TO FACE DIMENSIONS | ASME B16.10 |
FLANGE ENDS DIMENSIONS NPS 1/2''~24'' NPS 26''~36'' | ASME B16.5 ASME B16.47 |
BW ENDS DIMENSIONS | ASME B16.25 |
PRESSURE-TEMPERATURE RATINGS | ASME B16.34 |
NORMAL PRESSURE | CLASS 900-2500 |
NORMAL DIAMETER | NPS 2''-16'' |
Design Features:
1. Pressure Sealing design
2. Wedge type: flexible wedge, double Wedge
3. Back seat design
4. Outsied screw and yoke(O.S&Y)
5. Body gasket: smooth ellipse composite gasket for class 150; half-groove spiral wound gasket for class 300;Full-groove spiral wound gasket for class 600; octagonal ring gasket and oval ring gasket for class 900~class 1500
Main Part Material:
Body | WCB | CF8 | CF8M | Monel | ||||
Wedge Disc | WCB | CF8 | CF8M | Monel | ||||
Stem | F6a | F304 | F316 | Monel | ||||
Wedge Disc Sealing Face | 13Cr | 13Cr | STL | 304 | STL | 316 | STL | Monel |
Body Sealing Face | 13Cr | STL | STL | 304 | STL | 316 | STL | Monel |

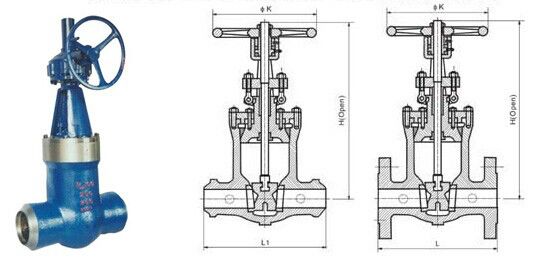

Technical Drawing:
Our Advantage:
1). Scale: 82,000.00 square meters non-dust workshop
2). The foundry is built to promise our raw material better before production.
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
5). Strict QC system is set up for the superior quality guarantee.
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
