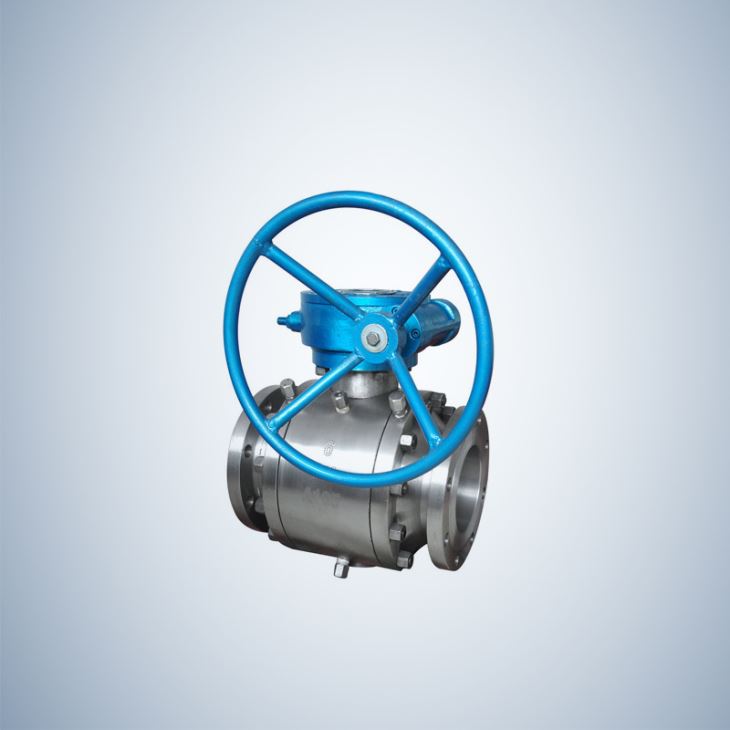

6 Inch Forged Steel Trunnion Ball Valve

6 Inch Forged Steel Trunnion Ball Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China 6 inch forged steel trunnion ball valve, 6 inch trunnion ball manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 6 INCH FORGED STEEL TRUNNION BALL VALVE......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China 6 inch forged steel trunnion ball valve, 6 inch trunnion ball manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 6 INCH FORGED STEEL TRUNNION BALL VALVE...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China 6 inch forged steel trunnion ball valve, 6 inch trunnion ball manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.



6 INCH FORGED STEEL TRUNNION BALL VALVE

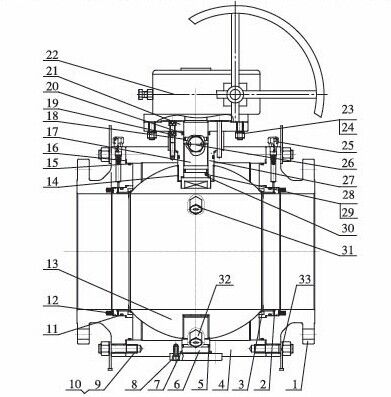

ITEM

PART NAME

MATERIAL

1

ADAPTER

A105

2

SEAT RING

A105+ENP

3

SEAT INSERT

PTFE/RPTFE/NYLON

4

BODY

A105

5

O-RING

VITON

6

TRUNNION

A105+ENP

7

GASKET

304SS/316SS+GRAPHITE

8

SCREW

A193 B7/BM

9

BOLT

ASTM A193 B7/BM

10

NUT

ASTM A194 2H/2HM

11

O-RING

VITON

12

SPRING

INCONEL X-750

13

BALL

A105+ENP

14

BEARING

AISI 1045+RPTFE聽

15

O-RING

VITON

16

GASKET

304SS/316SS+GRAPHITE

17

STEM

AISI 1040+ENP/AISI 1045+ENP

18

O-RING

VITON

19

SCREW

CARBON STEEL

20

PACKING

GRAPHITE/PTFE

21

CONNECTING PLATE

CARBON STEEL

22

GEAR OPERATOR

ASSEMBLY

23

BOLT

CARBON STEEL

24

NUT

CARBON STEEL

25

GREASE FITTING(SEAT)

CARBON STEEL

26

GREASE FITTING(STEM)

CARBON STEEL

27

PACKING BOX

A105+ENP

28

ANTI STATIC BALL

304SS

29

ANTI STATIC SPRING

304SS

30

THRUST WASHER

PTFE

31

DRAIN VALVE

CARBON STEEL

32

PLUG

CARBON STEEL

33

SUPPORT

CARBON STEEL



Product Specifications :

Design features

1. FULL PORT DESIGN/REDUCED PORT DESIGN

2. 2PIECE/3PIECE BOLTED BODY

3. TRUNNION MOUNTED BALL TYPE

4. DOUBLE BLOCK AND BLEED(DBB)



Standards

1. DESIGN AND MANUFACTURE:

BS 5351/API 608/API 6D/ASME B16.34

2. FACE TO FACE DIMENSIONS:

ASME B16.10/API 6D

3. FLANGE ENDS DIMENSIONS:

NPS1/2鈥?24鈥?/span>

ASME B16.5

4. NPS 26鈥?amp; ABOVE:

ASME B16.47

5. BW ENDS DIMENSIONS:

ASME B16.25

6. PRESSURE-TEMPERATURE RATINGS:

ASME B16.34

7. FIRE SAFE DESIGN:

API 607/API 6FA

8. NORMAL PRESSURE:

CLASS 150~2500

9. NORMAL DIAMETER:

NPS 236?/span>



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal


FAQ :

1. What is your difference from other competitors?

1). Scale: 82,000.00 square meters non-dust workshop

2). Condition: good after sale service

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

2. How do you control your quality?

1). The foundry is built to promise our raw material better before production.

2). Strict QC system is set up for the superior quality guarantee.
