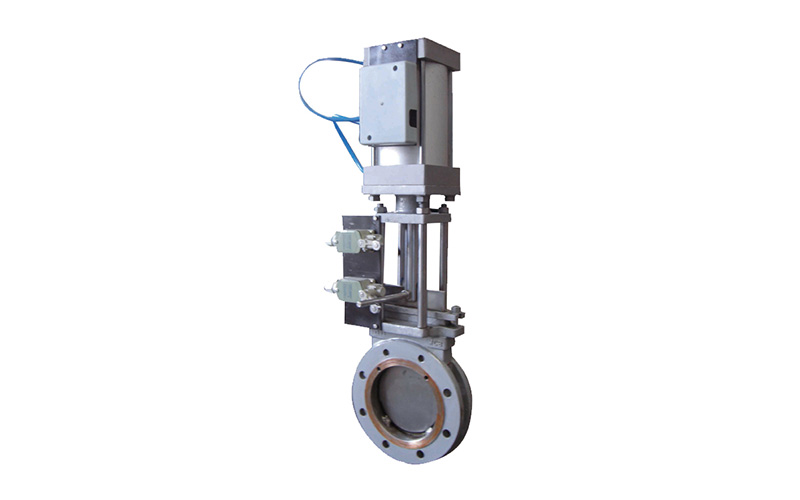

Pneumatic Knife Gate Valve
Pneumatic Knife Gate Valve；Media:POWDER OR METAL SILLICION，Port Size:Standard，Model Number:KNIFE GATE，Place of Origin:China (Mainland)，Application:mining /slurry/powder.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Gate |
| Pressure: | Low Pressure, 150#/jiso10k/jis20k/pn16/pn25 |
| Power: | Pneumatic |
| Material: | Casting |
| Temperature of Media: | Medium Temperature |
| Media: | POWDER OR METAL SILLICION |
| Port Size: | Standard |
| Place of Origin: | China (Mainland) |
| Model Number: | KNIFE GATE |
| Brand Name: | EO |
| Application: | mining /slurry/powder |
| Body material: | Stainless Steel 316 |
| Certificate: | ISO9001:2008 CE |
| Connection: | Flange Ends |
| Standard: | ANSI BS DIN JIS |
| Medium: | Corrosive Fluid |
| Size: | dn50~dn2000 |
| Valve type: | gate |
| OEM: | Professional OEM |
DN 50~DN600 WCB/STAINLESS STEEL Pneumatic knife gate valve
Specifications
1.API 6D, API 6FA, ISO 9001, CE certificate
2.18 months warranty
3.Short delivery time
Stainless steel knife gate valve
1. Stainless steel knife gate valve pressure rating and size:
PN6 to PN25, 150lbs/300lbs
2"-80"
DN50 to DN 2,000
2. Stainless steel knife gate valve material:
Cast iron: GG20, GG25
Ductile iron: GGG40, GGG50
Cast steel: A216 WCB
Stainless steel: CF8, CF8M, CF3, CF3M, CF3MN, CN7M
3. Stainless steel knife gate valve operator:
Manual, bevel gear, pneumatic cylinder, hydraulic, chain wheel and more.
4. Stainless steel knife gate valve features:
Face to face: ASME B16.10/ISO 5752
Flanged ends: ASME B16.5/ASME B16.47/ISO 7005-1/API 605/BS 3293/DIN
Test: API 598/API 6D
Seat: NBR, EPDM, rubber, Viton, PTFE, metal to metal
Fabrication: rising stem/non-rising stem
Unidirection/bi-directional
5. Stainless steel knife gate valve general applications:
Mining
Power plant
Pulp and paper
Alumina
Chemical
Cement
