Cast Steel Butt Weld Ends Slab Gate Valve Pneumatic Actuator
Products Details : Shenyang EO Valve Co.,Ltd is a leading China cast steel butt weld ends slab gate valve pneumatic actuator, butt weld slab gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. API 6D standard......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China cast steel butt weld ends slab gate valve pneumatic actuator, butt weld slab gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. API 6D standard...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China cast steel butt weld ends slab gate valve pneumatic actuator, butt weld slab gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

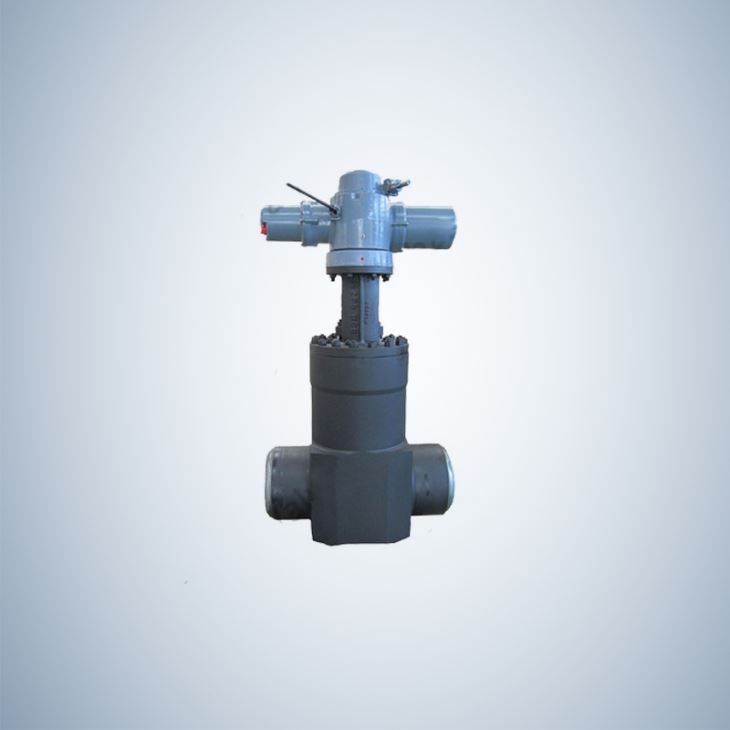

API 6D Standard Electrical Actuated Cast Steel Slab Gate Valve Butt Weld Connection
Product Specifications :
STANDARDS:
DESIGN AND MANUFACTURE | API 6D |
FACE TO FACE DIMENSIONS | API 6D |
FLANGE ENDS DIMENSIONS NPS 2"~24'" NPS 26"~36" | |
ASME B16.5 | |
ASME B16.47 | |
BW ENDS DIMNSIONS | ASME B16.25 |
PRESSURE-TEMPERATURE RATINGS | ASME B16.34 |
NORMAL PRESSURE | CLASS 150~1500 |
NORMAL DIAMETER | NPS 2"~36" |
Design Feature:
1.Bolt bonnet .
2.Casting or forged body.
3.Full port or reduced port design.
4.Back seal design.
5.Stem is one-piece wrought material.
6.Flexible wedge gate , Solid wedge gate.
7.Outside Screw and Yoke .
8.Rising stem
9.welding Seat.
10.Special request : Locking device ,Position indicator.Limit Switch.
Main Part Material:
ITEM | PART NAME | STANDARD | LOW TEMPERATURE | STAINLESS STEEL | |
1 | PLUG | CARBON STEEL | STAINLESS STEEL | SS316 | |
2 | BODY | A216 WCB | A352 LCB | A351 CF8M | |
3 | SLAB | A276 410 | A276 304 | A276 316 | |
4 | GREASE FITTING | CARBON STEEL | STAINLESS STEEL | SS316 | |
5 | SEALING RING | PTFE/RPTFE/NYLON | PTFE/RPIFE/NYLON | PTFE/RPIFE/NYLON | |
6 | NUT | A194 2H/2HM | A194 7/7M | A194 8 | |
7 | BOLT | A193 B7/B7M | A320 L7/L7M | A193 B8 | |
8 | STEM | A182 F6 | A182 F304 | A182 F316 | |
9 | BONNET | A216 WCB | A352 LCB | A351 CF8M | |
10 | LANTERN RING | 276 410 | 276 304 | A276 316 | |
11 | NUT | A194 2H/2HM | A194 7/7M | A194 8 | |
12 | BOLT | A193 B7/B7M | A320 L7/L7M | A193 B8 | |
13 | YOKE | A216 WCB | A352 LCB | A351 CF8 | |
14 | CREASE CUP | CARBON STEEL | CARBON STEEL | STAINLESS STEEL | |
15* | HANDWHEEL | STEEL/DUCTILE IRON | |||
16 | PROTECTIVE SHIELD | CARBON STEEL | |||
17 | INDICATOR | STAINLESS STEEL | |||
18 | STEM NUT | A439 D2/Cu-ALLOY | |||
19 | STEM GREASE FITTING | CARBON STEEL | STAINLESS | SS316 | |
20 | STEM PACKING | GRAPHITE/PTFE | |||
21 | DRAIN VALVE | CARBON STEEL | STAINLESS STEEL | SS316 | |
22 | GASKET | 304SS/316SS+GRAPHITE/SOFT STEEL/304SS/316SS METAL RING | |||
23 | O-RING | VITON | |||
24 | SPRING | INCONEL X750 | |||
25 | SEAT | A105+ENP | 350 LF2+ENP | A182 F316 |
GEAR OPERATOR, ELECTRICAL OPERATOR, PNEUMATIC OPERATOR, HYDRAULIC OPERATOR ADN ETC ARE AVAILABLE
NOTE: OTHER MATERIALS ARE AVAILABLE UPON REQUEST
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment : T/T, L/C, Western Union and PayPal
