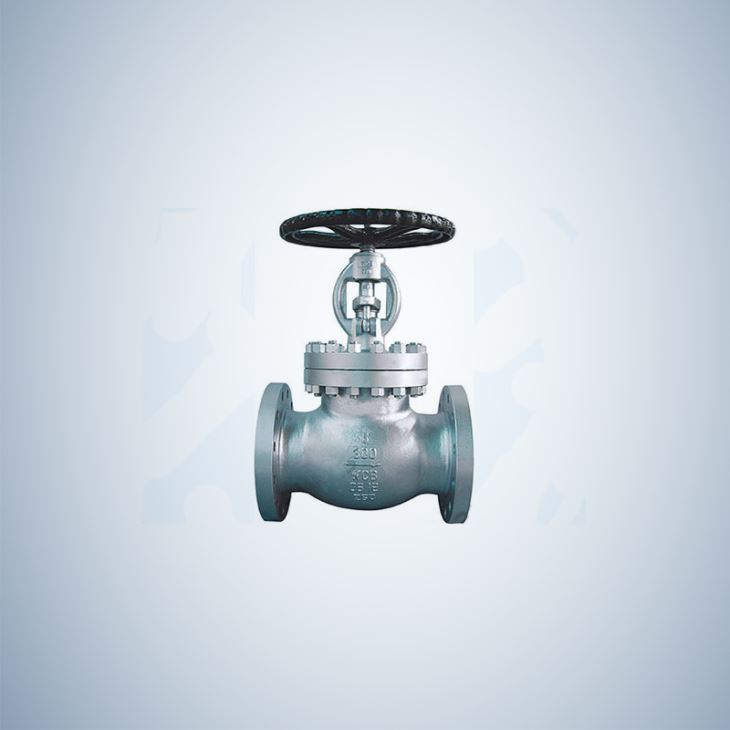

Cast Steel Bolted Bonnet Globe Valve

Cast Steel Bolted Bonnet Globe Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China cast steel bolted bonnet globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO Valve Co.,Ltd is a leading China cast...

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China cast steel bolted bonnet globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China cast steel bolted bonnet globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.



Professional Industrial BS1873 Flanged FF / RF / RTJ Cast Steel Globe Valve Supplier. We supply the high quality product due to the owned foundry for raw material control and the strong technical team from all over the world.



Product Specifications :

SIZE

(MM)  15, 25, 50, 80, 100, 125, 150, 200, 250, ...1200





2

(CLASS) 150, 300, 600, 800, 900, 1500, 2500 BODY MATERIAL

STAINLESS STEEL, DUPLEX STEEL, ALLOY, ETC



STANDARD

5

LEVER, HANDWHEEL, WORM GEAR, BEVEL GEAR, ELECTRIC, PNEUMATIC,6

RF FALNGE, RTJ FALNGE, BW, SW, NPT, THREADED, WAFER, LUG, ETC

MEDIUM

8

12 MONTH AFTER THE DELIVERY FROM THE PORT OF SHIPMENT



O.S & Y, outside screw and yoke

Flexible wedge, fully guided

Renewable seat rings

Rising stem and non-rising hand wheel

Available with BG operator


MATERIAL LIST

ITEM

PART NAME

STANDARD

LOW TEMPERATURE

STAINLESS STEEL

1

BODY

A216 WCB

A352 LCC

A351 CF8M

2

SEAT

A105

A350 LF2

A182 F316

3

DISC

A105

A350 LF2

A182 F316

4

STEM

A182 F6

A182 F304

A182 F316

5

GASKET

304SS/316SS+GRAPHITE/SOFT STEEL/304SS/316SS METAL RING

6

BONNET

A216 WCB

A352 LCC

A351 CF8M

7

DISC NUT

CARBON STEEL

A350 LF2

A182 F316

8

BOLT

A193 B7/BM

A320 L7/L7M

A193 B8M

9

NUT

A194 2H/2HM

A194 7/7M

A194 8M

10

BACK SEAT BUSHING

276 410

A276 304

A276 316

11

PACKING

GRAPHITE/PTFE

12

GLAND FLANGE

A216 WCB

A352 LCC

A351 CF8M

13

GLAND

276 410

276 410

A276 316

14

GLAND NUT

A194 2H/2HM

A194 7/7M

A194 8

15

EYEBOLT

A193 B7/BM

A320 L7/L7M

A193 B8

16

STEM NUT

A439 D2/Cu-ALLOY

17

HANDWHEEL

STEEL/DUCTILE IRON


GEAR OPERATOR, ELECTRICAL OPERATOR, PENUMATIC OPERATOR, HYDRAULIC OPERATOR AND ETC. ARE AVALIABLE

NOTE: OTHER METERIALS ARE AVALIABLE UPON REQUEST



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
