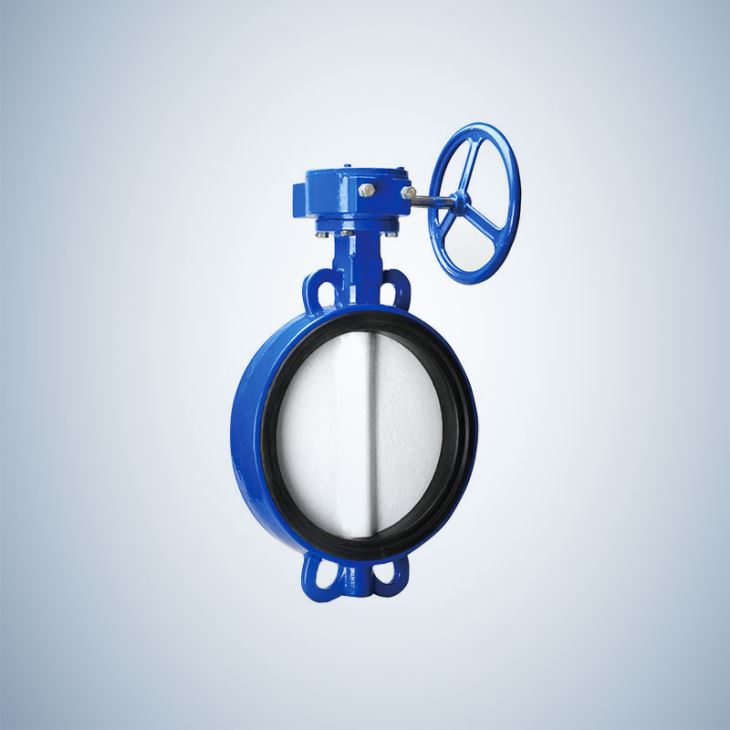

Rubber Seat Lug Type Concentric Butterfly Valve

Rubber Seat Lug Type Concentric Butterfly Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China rubber seat lug type concentric butterfly valve, rubber seal butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. RUBBER SEAT LUG TYPE... Products...

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China rubber seat lug type concentric butterfly valve, rubber seal butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. RUBBER SEAT LUG TYPE...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China rubber seat lug type concentric butterfly valve, rubber seal butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.



Product Applications :

It is widely used in pipelines as control or throttling apparatus for supply and drainage pipeline of potable water, seawater, waste water, petrochemical industry, energy and power, shipping, food and drug, natural gas, coal gas, HVAC and fire protection systems as well as the building pipelines.


Product Specifications :

Size : DN40—DN600

Nominal Pressure:  PN10/PN16, 150Lb

Working Temperature : -20°C~230°C

Suitable Medium : Chemicals, air, water, steam, oil, acids, salts, etc

Standards:

Design standard API609
Face to Face API609, DIN3202, and ISO5752

Flange Drilling DIN2501 PN10/PN16, ANSI 125/150, BS 4504 , JIS10K

Top Flange ISO5211

Test Inspection API598


Materials:

Body: Ductile iron, WCB, Stainless Steel

Disc: Ductile iron/WCB/Stainless Steel + PTFE

Stem: Stainless Steel 416, 420,316

Seat: full PTFE lined



Main Performance Parameters

Nominal Pressure

1.0MPa

1.6MPa

2.5MPa



Test Pressure

Shell test

1.5MPa

2.4MPa

3.75MPa

Normal Temperature

Sealing Ability

1.1MPa

1.76MPa

2.75MPa

Working Pressure

1.0MPa

1.6MPa

2.5MPa



Working Temperature

t

normal≤80℃,special≤200℃

Suitable Medium

Potable water, fresh water, seawater, waste water, natural gas, coal gas, oil, acid and alkaline, etc.


Standards and Product Parameter

Face to face

Flange Connection

Top Flange

BS5155short,ISO5752,DIN3202 F16

DIN PN 10/16/25;ANSI B16.1,BS4504,ISO PN 10/16

ISO5211



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details : 4-5 weeks after receipt of down payment by T/T

Payment   T/T, L/C, Western Union and PayPal
