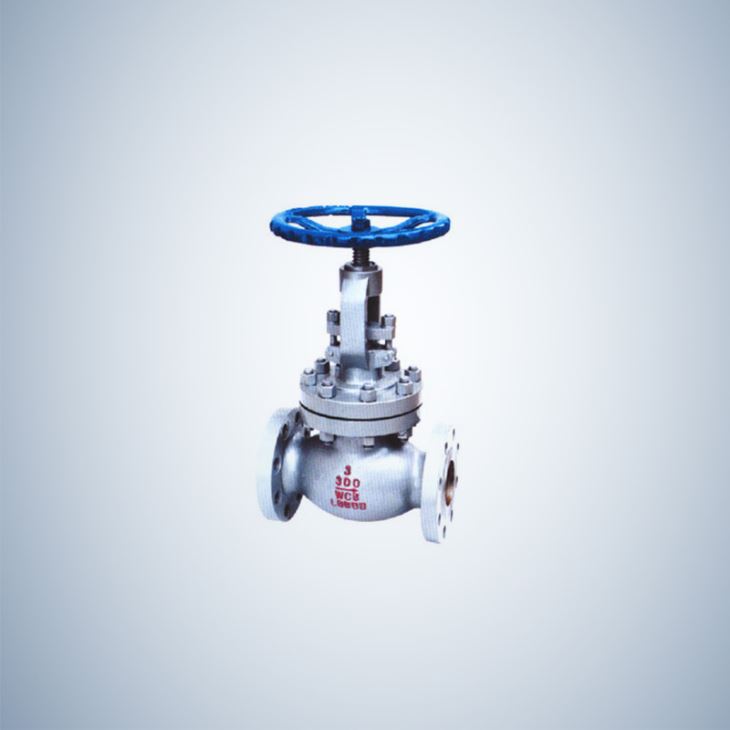

Cast Steel Bolted Bonnet Rising Stem Globe Valve

Cast Steel Bolted Bonnet Rising Stem Globe Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China cast steel bolted bonnet rising stem globe valve, bolted bonnet globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service Products D escription : Shenyang EO...

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China cast steel bolted bonnet rising stem globe valve, bolted bonnet globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China cast steel bolted bonnet rising stem globe valve, bolted bonnet globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service



Product Specifications :

Cast Steel Globe specification:

1

SIZE

(INCH) 1/2”  1”  2”  3”  4”  6”  8”  10” ....48”

(MM)  15, 25, 50, 80, 100, 125, 150, 200, 250, ...1200



2

PRESSURE

(CLASS) 150, 300, 600, 800, 900, 1500, 2500

(MPA)  1.0, 1.6, 2.5, 4.0, 6.4, 10, 13, 15, 25, 42



3

BODY MATERIAL

A216WCB, , SS316, SS304, SS316L, CF8C, ETC   CARBON STEEL,

STAINLESS STEEL, DUPLEX STEEL, ALLOY, ETC

4

STANDARD

BS, ASME, API, DIN, JIS, GOST,EU, ETC

5

OPERATION

LEVER, HANDWHEEL, WORM GEAR, BEVEL GEAR, ELECTRIC, PNEUMATIC,

HYDRAULIC, ETC

6

CONNECTION

RF FALNGE, RTJ FALNGE, BW, SW, NPT, THREADED, WAFER, LUG, ETC

7

MEDIUM

CORROSIVE ENVIRONMENT, OIL, GAS, WATER, ETC.

8

WARRANTY

12 MONTH AFTER THE DELIVERY FROM THE PORT OF SHIPMENT


PRDUCT FEATURES:

O.S & Y, outside screw and yoke

B.B, Bolted bonnet

Flexible wedge, fully guided

Choice of solid or split wedge

Renewable seat rings

Forged T-head Stem

Rising stem and non-rising hand wheel

Flanged or butt welding ends

Available with BG operator


MATERIAL LIST

ITEM

PART NAME

STANDARD

LOW TEMPERATURE

STAINLESS STEEL

1

BODY

A216 WCB

A352 LCC

A351 CF8M

2

SEAT

A105

A350 LF2

A182 F316

3

DISC

A105

A350 LF2

A182 F316

4

STEM

A182 F6

A182 F304

A182 F316

5

GASKET

304SS/316SS+GRAPHITE/SOFT STEEL/304SS/316SS METAL RIN

6

BONNET

A216 WCB

A352 LCC

A351 CF8M

7

DISC NUT

CARBON STEEL

A350 LF2

A182 F316

8

BOLT

A193 B7/BM

A320 L7/L7M

A193 B8M

9

NUT

A194 2H/2HM

A194 7/7M

A194 8M

10

BACK SEAT BUSHING

276 410

A276 304

A276 316

11

PACKING

GRAPHITE/PTF

12

GLAND FLANGE

A216 WCB

A352 LCC

A351 CF8M

13

GLAND

276 410

276 410

A276 316

14

GLAND NUT

A194 2H/2HM

A194 7/7M

A194 8

15

EYEBOLT

A193 B7/BM

A320 L7/L7M

A193 B8

16

STEM NUT

A439 D2/Cu-ALLOY

17

HANDWHEEL

STEEL/DUCTILE IRON


GEAR OPERATOR, ELECTRICAL OPERATOR, PENUMATIC OPERATOR, HYDRAULIC OPERATOR AND ETC. ARE AVALIABLE

NOTE: OTHER METERIALS ARE AVALIABLE UPON REQUEST



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
