1500Lb Pressure Seal Globe Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China 1500lb pressure seal globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO Valve Co.,Ltd is a leading China 1500lb...
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China 1500lb pressure seal globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China 1500lb pressure seal globe valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

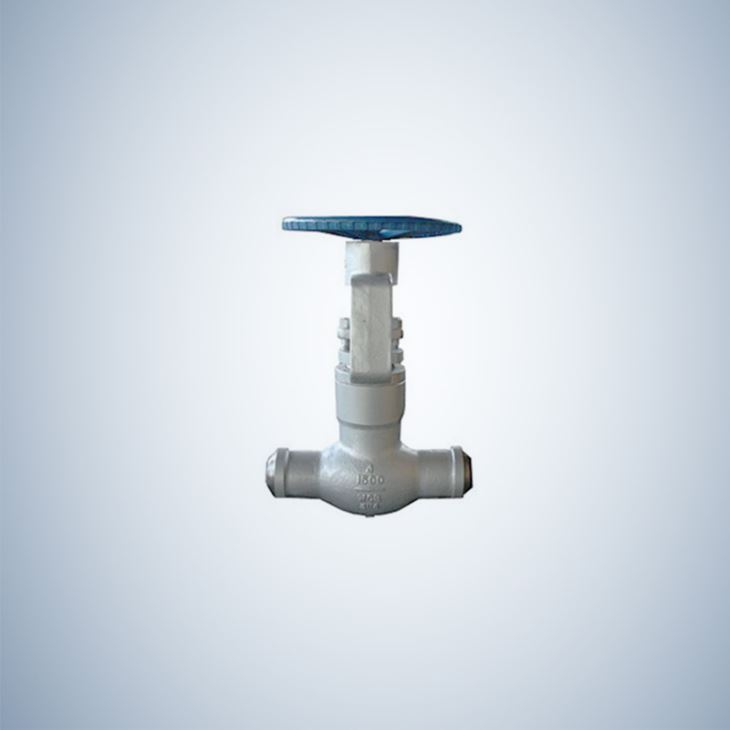

Cast steel Weld Bonnet Pressure seal globe valves.
Product Specifications :
STANDARDS:
1. DESIGN AND MANUFACTURE: | BS 1873/ASME B16.34 |
2. FACE TO FACE DIMENSIONS: | ASME B16.10 |
3.FLANGE ENDS DIMENSIONS:NPS 1/2”-24” | ASME B16.5 |
4. BW ENDS DIMENSIONS: | ASME B16.25 |
5. PRESSURE-TEMPERATURE RATINGS: | ASME B16.34 |
6. NORMAL PRESSURE: | CLASS 900~2500 |
7. NORMAL DIAMETER: | NPS 2″~8″ |
DESIGN FEATURES:
1.PRESSURE SEAL BONNET (PSB) DESIGN |
2.DISC TYPE: PLUG DISC, ADJUSTABLE DISC, DOUBLE DISC |
3.SEAT TYPE:WELDED SEAT OR INTEGRAL SEAT |
4.BACK SEAT DESIGN |
5.PACKING IS FLEXIBLE GRAPHITE OR ACCORDING TO CLIENTS REQUIREMENTS. AND A |
SPRING-LOADED MECHANISM CAN BE PROVIDED AS PER SPECIAL REQUIREMENTS |
6. OUTSIDE SCREW AND YOKE(OS&Y) |

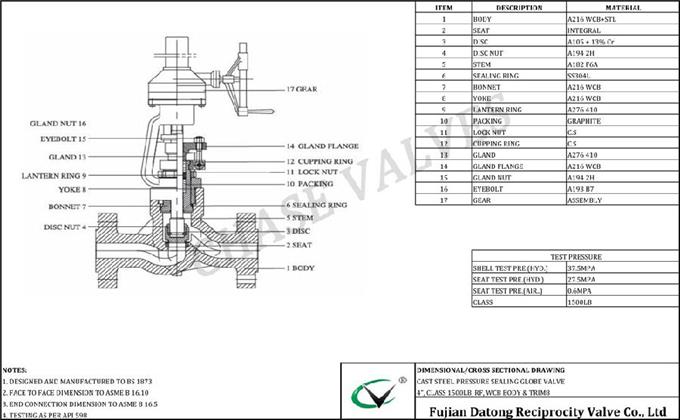

MATERIAL LIST:
ITEM | PARTNAME | STANDARD | LOW TEMPERATURE | STAINLESS STEEL |
1 | BODY | A216 WCB | A217 WC6 | A351 CF8M |
2 | SEAT | A105 | A182 F11 | A182 F316 |
3 | DISC | A105 | A182 F11 | A182 F316 |
4 | DISC NUT | A105 | A182 F11 | A182 F316 |
5 | STEM | A182 F6 | AISI 4140/4340 | A182 F316 |
6 | SEALING RING | AISI 1008/SS304L/SS316L | ||
7 | BONNET | A216 WCB | A217 WC6 | A351 CF8M |
8 | YOKE | A216 WCB | A217 WC6 | A351 CF8 |
9 | LANTERN RING | 276 410 | 276 410 | 276 316 |
10 | PACKING | GRAPHITE/PTFE | ||
11 | LOCK NUT | CARBON STEEL | CARBON STEEL | STAINLESS STEEL |
12 | CUPPING RING | CARBON STEEL | CARBON STEEL | STAINLESS STEEL |
13 | GLAND | 276 410 | 276 410 | A276 316 |
14 | GLAND FLANGE | A216 WCB | A216 WC6 | A351 CF8 |
15 | GLAND NUT | A194 2H/2HM | A194 4 | A194 8 |
16 | EYEBOLT | A193 B7/B7M | A193 B16 | A193 B8 |
17 | GEAR | ASSEMBLY | ||
| SEALING FACE OVERLAY | API TRIMS AVALIABLE | |||
GEAR OPERATOR, ELECTRICAL OPERATOR, PENUMATIC OPERATOR, HYDRAULIC OPERATOR AND ETC.ARE AVALIABLE
NOTE:OTHER METERIALS ARE AVALIABLE UPON REQUEST
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
