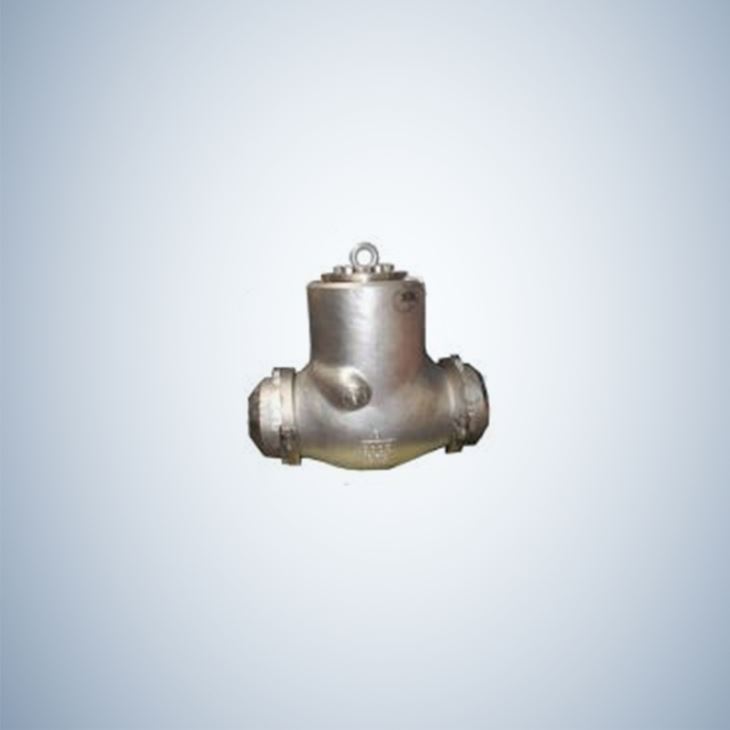

Pressure Seal BW Swing Check Valve

Pressure Seal BW Swing Check Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China swing_check_valve_pressure_seal_bw manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO Valve Co.,Ltd is a leading China...

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China swing_check_valve_pressure_seal_bw manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China swing_check_valve_pressure_seal_bw manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.



Cast Steel Butt Weld Pressure Sealing Check Valve.

Product Specifications :

STANDARDS :

1. DESIGN AND MANUFACTURE:

BS 1868/ASME B16.34/API 6D

2. FACE TO FACE DIMENSIONS:

ASME B16.10

3. FLANGE ENDS DIMENSIONS:NPS1/2”-24”

ASME B16.5

NPS 26”-36”

ASME B16.47

4. BW ENDS DIMENSIONS:

ASME B16.25

5. PRESSURE-TEMPERATURE RATINGS:

ASME B16.34

6. NORMAL PRESSURE:

CLASS 900~2500

7. NORMAL DIAMETER:

NPS 2″~24″


Design Feature :

1. Pressure Seal  Bonnet(PSB) Design

2. Swing Disc: Disc Is Fastened Securely To Disc Hanger With a Lock Nut And Copter Pin

3. Seat Type: Welder Seat Or Integral Seat

4.Main Material:ASTM A216 WCB, A217 Wc6, A351 CF8, A351 CF8M etc.

Technical Drawing(for reference):


Our Advantage:

1). Scale: 82,000.00 square meters non-dust workshop

2). The foundry is built to promise our raw material better before production.

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

5). Strict QC system is set up for the superior quality guarantee.



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
