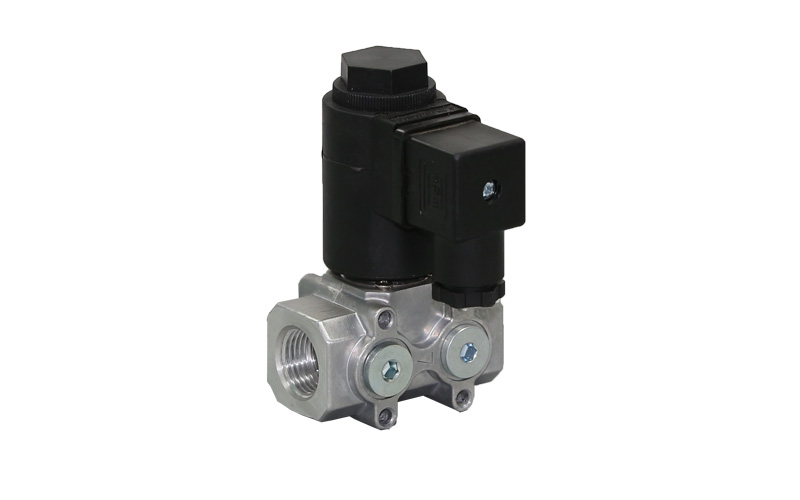

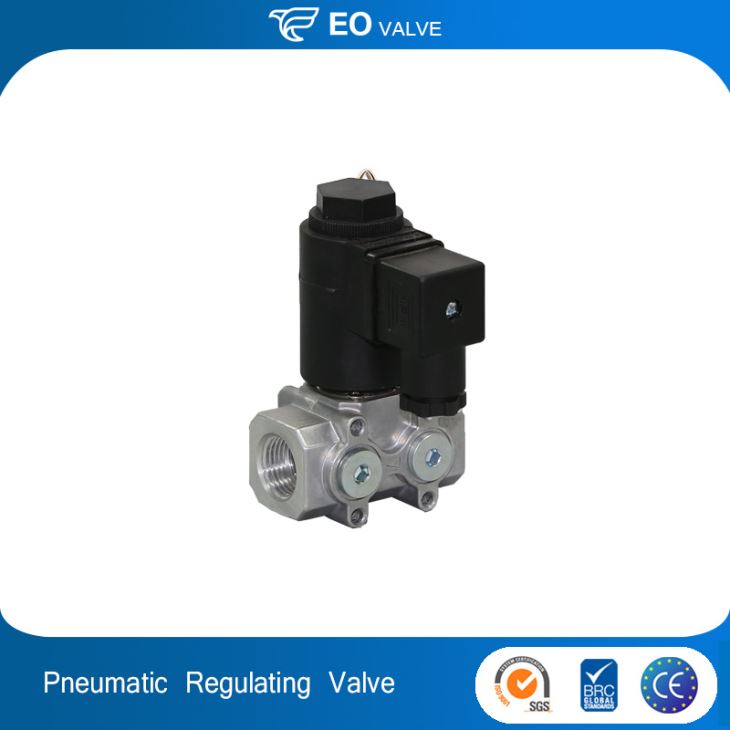

Regulate Flow 2 Way Valve Manual Pneumatic Valve
Regulate Flow 2 way Valve Manual Pneumatic Valve;Pressure:Low Pressure,Material:Casting,Media:Gas,Brand Name:EO,Application:Home Kitchen.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Shutoff |
| Pressure: | Low Pressure |
| Power: | Solenoid |
| Material: | Casting |
| Temperature of Media: | Normal Temperature |
| Media: | Gas |
| Port Size: | 1/2'' |
| Place of Origin: | China (Mainland) |
| Brand Name: | EO |
| Application: | Home Kitchen |
| valve: | gas |
| Type: | Normally Closed |
| Opening Time and Closing Time: | less than 1 second |
| Max working Pressure: | 360mbar( normal gas pressure) |
| Numbers of operations: | 20 per minute |
| Protection: | IP54 |
| Sealing material: | chemigum |
| the ambient temperature: | -15℃- 60℃ |
| Body material: | aluminum alloy |
| coil temperature: | 65℃ |

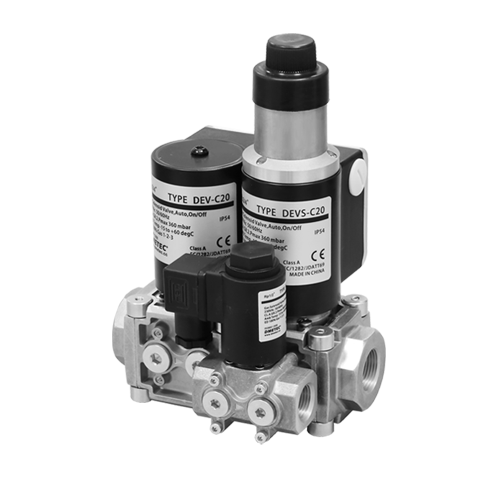

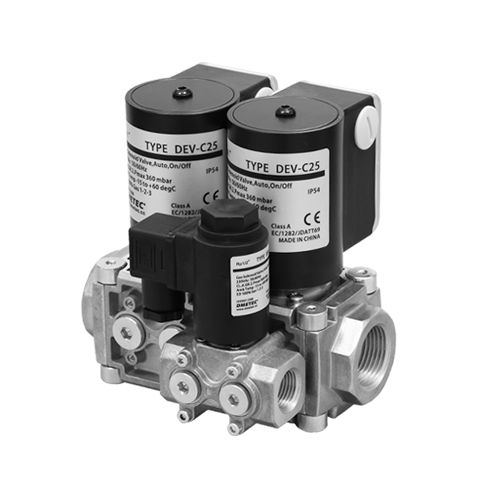

DEVS-G Introduction of DEVS-G series
Fuel gas solenoid valves are widely applied to the safe transportation of fuel gases so as to start the supply of gases or cut it off upon emergency.
The mediums of gases applicable are: natural gases, methane, liquefied petroleum gas.
By-pass ports are set on both sides and bottom of the valves, with diameter of G1/4” (DN10/15 diameter being G1/8”)
Product features: opening time adjustable, flow adjustable.
Operation and installation
Normally closed type, after the power is energized, it will open slowly,the blue indicator lights up, when the power is off, and it will be shut down immediately.
TECHINCAL FEATURES
Opening Time: adjustable from 1 to 30 seconds
Closing Time: less than 1 second
Numbers of operations: 20 per minute
Max working Pressure: 200/360mbar (normal gas pressure)
By-pass ports with diameter of G1/4” (DN10/15 diameter being G1/8”)
Inside filter net
Protection: IP54
Sealing material: chemigum
Body material: aluminum alloy
Pressure steel spring AISI 302.
The ambient temperature: -15℃- 60℃
Coil temperature: 65℃
HOMOLOGATION AND STANDARDS
To achieve Grade A standard
According to standards EN161
According to European Gas Standards
CE Certification
ELECTRICAL FEATURES
Voltage: 50-60Hz, 230Vac,110Vac,24Vdc (other voltage can be customized).
Coils to Class F, 360°rotation, suitable for permanent excitation.
